Toshiba Satellite A210 Series Maintenance Manual

4 Replacement Procedures
Satellite A210/ A215, Satellite Pro A210, EQUIUM A210, SATEGO A210 Series Maintenance Manual
4-39
4.14 WLAN antennas
To remove the WLAN antennas, first remove the display assembly, display mask, FL inverter
board and the LCD display module. Then follow the steps below.
1. Remove the three square tabs securing the WLAN antennas.

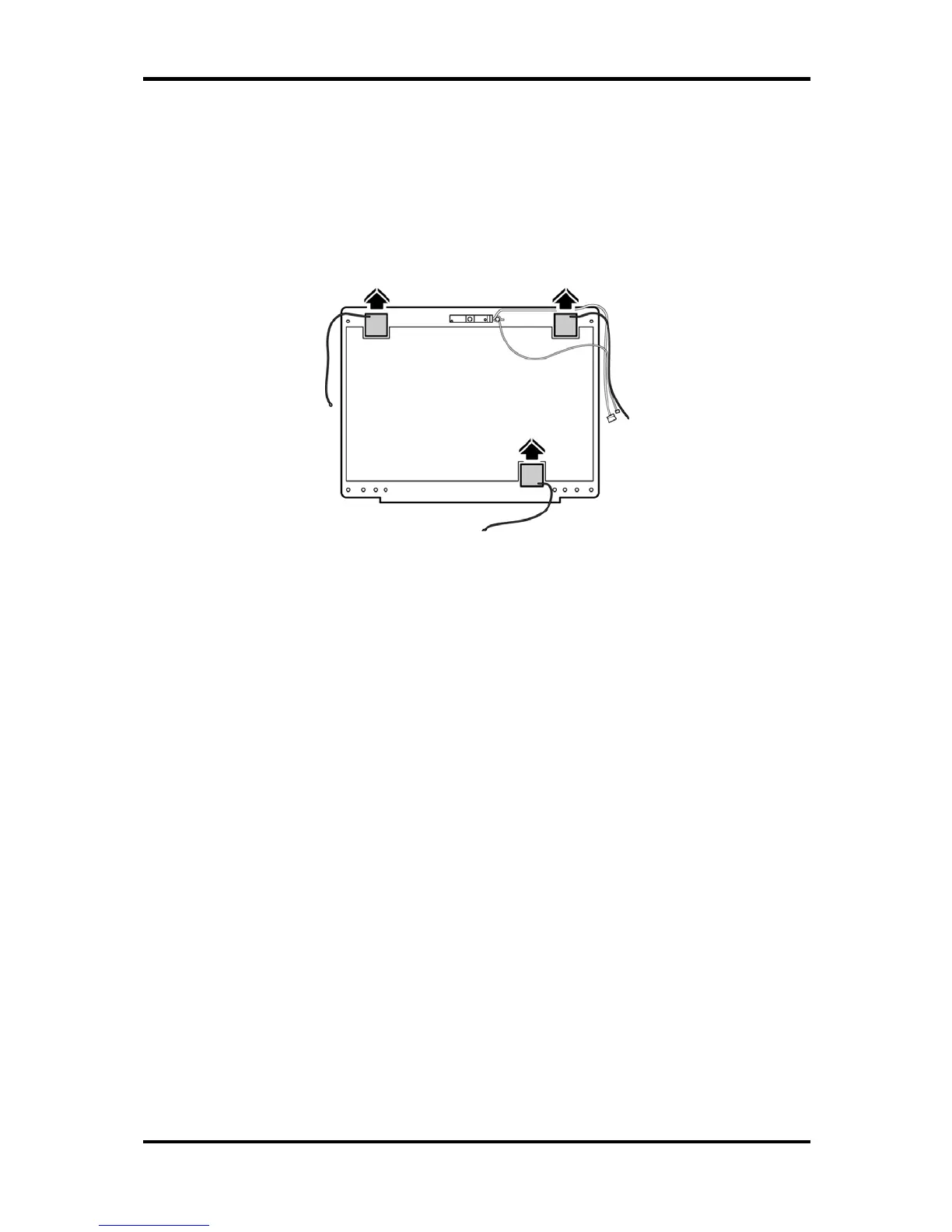

Figure 4-43 Removing the WLAN antennas
Installing the WLAN antennas
To install the WLAN antennas, follow the steps below and refer to the figures in the
preceding sections.
1. Replace the tabs noting the markings on the LCD cover. The black WLAN cable is
arranged to the right, the white WLAN cable to the left, and the gray WLAN cable to the
lower right corner.
2. Make sure all cables are arranged properly in the clamps and use scotch and tape to secure
the antennas in the four corners..

Toshiba Satellite A210 Series Specifications

General

Battery	6-cell Lithium-Ion
Processor	Intel Core 2 Duo / Celeron M
RAM	2GB DDR2
Storage	160GB HDD
Display	15.4" WXGA (1280x800)
Operating System	Windows Vista Home Premium
Optical Drive	DVD SuperMulti
Wireless	802.11b/g
Chipset	Intel GM965 Express Chipset
LAN	10/100 Ethernet
Webcam	Integrated
Ports	3x USB 2.0, VGA, Headphone, Microphone, Ethernet
