Strata CTX General Description 11/02 1
Strata CTX100 Overview 1
The Strata CTX100 is a compact system that
provides large system features (see
Figure 1). It is designed for wall mounting and
occupies very little space.
The CTX100 basic processor can be configured
with a one or two cabinet system. A single
(Base) cabinet system supports a combination
of up to 64 Central Office (CO) lines and
stations, while a two (Base and Expansion)
cabinet system can support up to 112 CO lines
and stations.
System line and station capacity is expanded by
adding CO line and station Printed Circuit
Boards (PCBs) into its universal slot
architecture.
The CTX100 easily connects to outside public
and private telephone lines. All of the
telephones (stations) tied to the system can
have direct access to each other, as well as to
the public and private network.
Each CTX100 system has a Base Cabinet with one optional Expansion Cabinet. All lines, stations,
and options are tied together through the cabinets. The overall weight and dimensions of the
CTX100 cabinets are shown in Table 1.
Table 1 CTX100 Cabinet Specifications
Cabinet
Weight
1
1. Weight includes the processor PCB in the Base Cabinet and four universal PCBs in each cabinet.
Height Width Depth
Base Cabinet (CHSUB112) 19.4 lbs. 14.6 in. 11.9 in. 10.2 in.
Base + Expansion Cabinet
(CHSUE112)
34.6 lbs. 14.6 in. 19.9 in. 10.2 in.
5976
Base Expansion

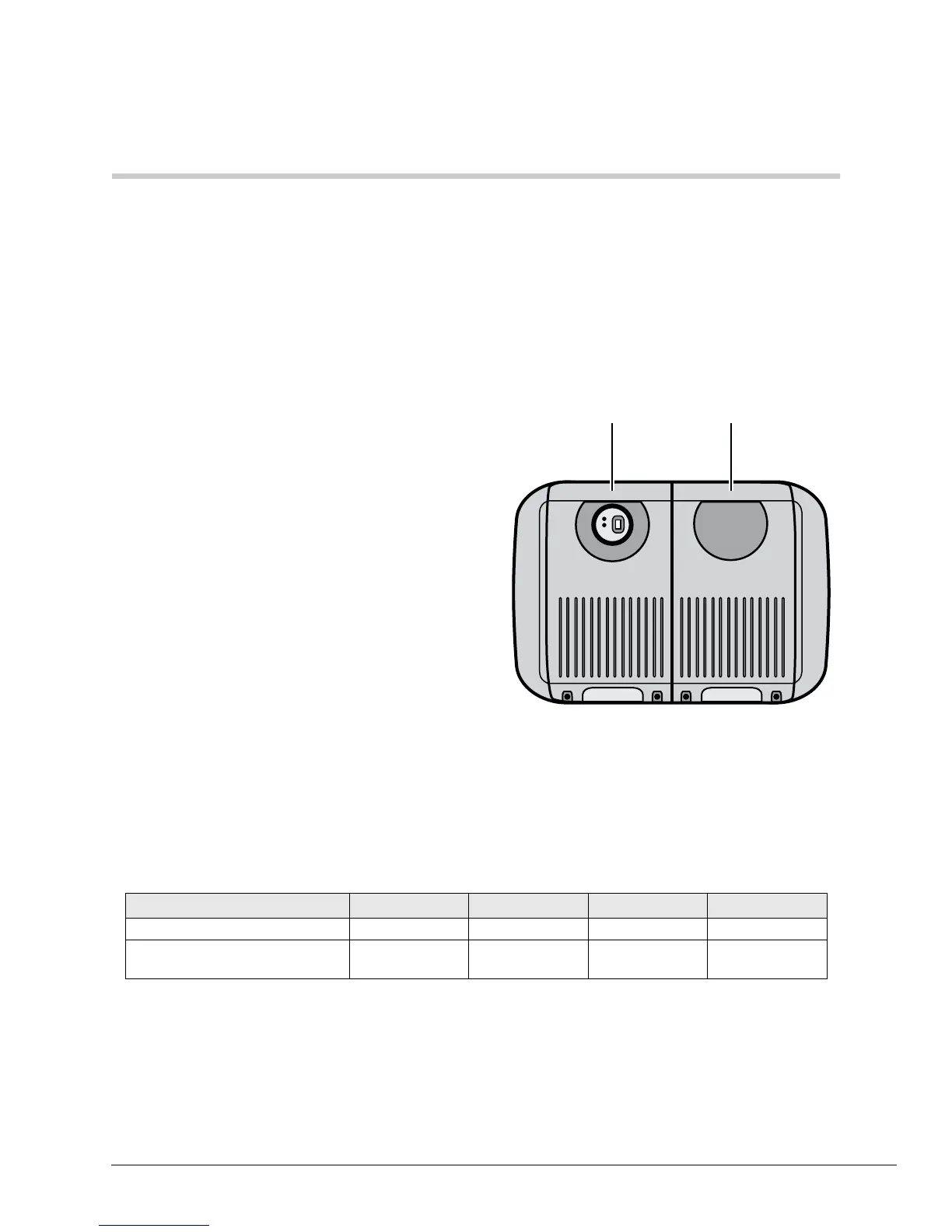

Figure 1 CTX100 Base/Expansion
Cabinets
