8 Strata CTX General Description 11/02
Licensed Software Options
Some software options are activated with license codes. The following software options require a
license:
• Each CTX system (node) in a Strata Net QSIG Network requires one LIC670-QSIG NET
license. A maximum of four serial network nodes are allowed in any one serial chain in the
network topology.
• Each individual CTI Open Architecture application requires one LIC670-CSTA AP license
(maximum nine).
CTX670 Cabinet Slots
Base Cabinet
The Base Cabinet has two dedicated slots used for the system processor PCBs and eight universal
slots, labeled “S101~S108,” that can accommodate station, CO line or option PCBs (see Figure 4).
It also houses a power supply.

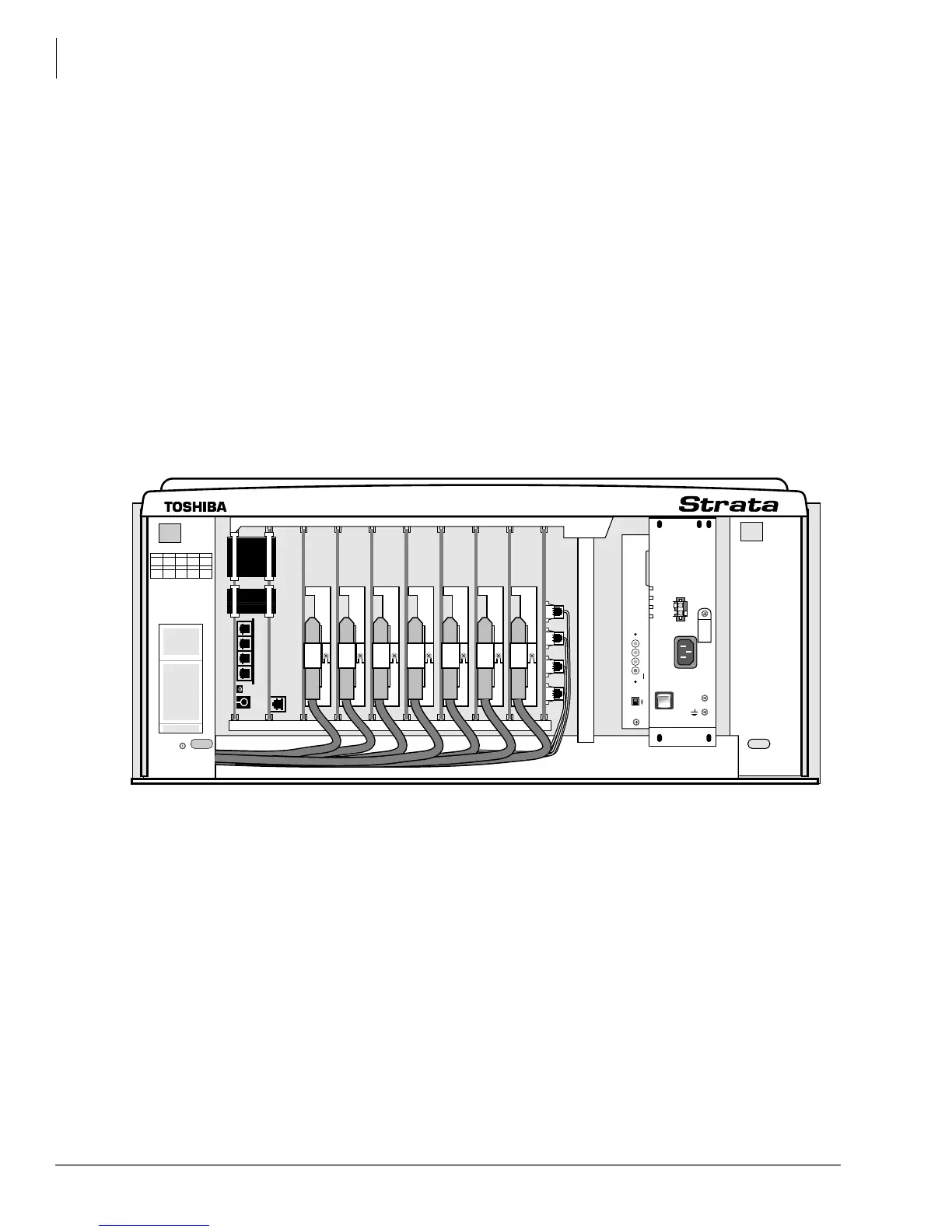

Figure 4 Base Cabinet Interior
POW
+5V
-5V
P.F .
RESET
EXP
BASE
AC IN
BATT
DC OUT
-24V1
-24V2
-24V3
-24V4
+
-
POWER
ON
OFF
FG
5002
B101 B102 S101 S102 S103 S104 S105 S106 S107 S108
5466
B101 B102 S101 S102 S103
S104 S105 S106 S107
S108
