62 TC-net 100 Installation and Wiring Manual
Appendix E Transmission Cables
E
Optical Fiber Cable
Use Toshiba-recommended optical fiber cables or equivalents for the TC-net 100. The
cables to be used are a non-metallic type, normally with 5 cores, including 1 spare core.
For your reference, the structure and characteristics of a Toshiba-recommended optical
fiber cable manufactured by Showa Electric Wire & Cable Co., Ltd. are shown.

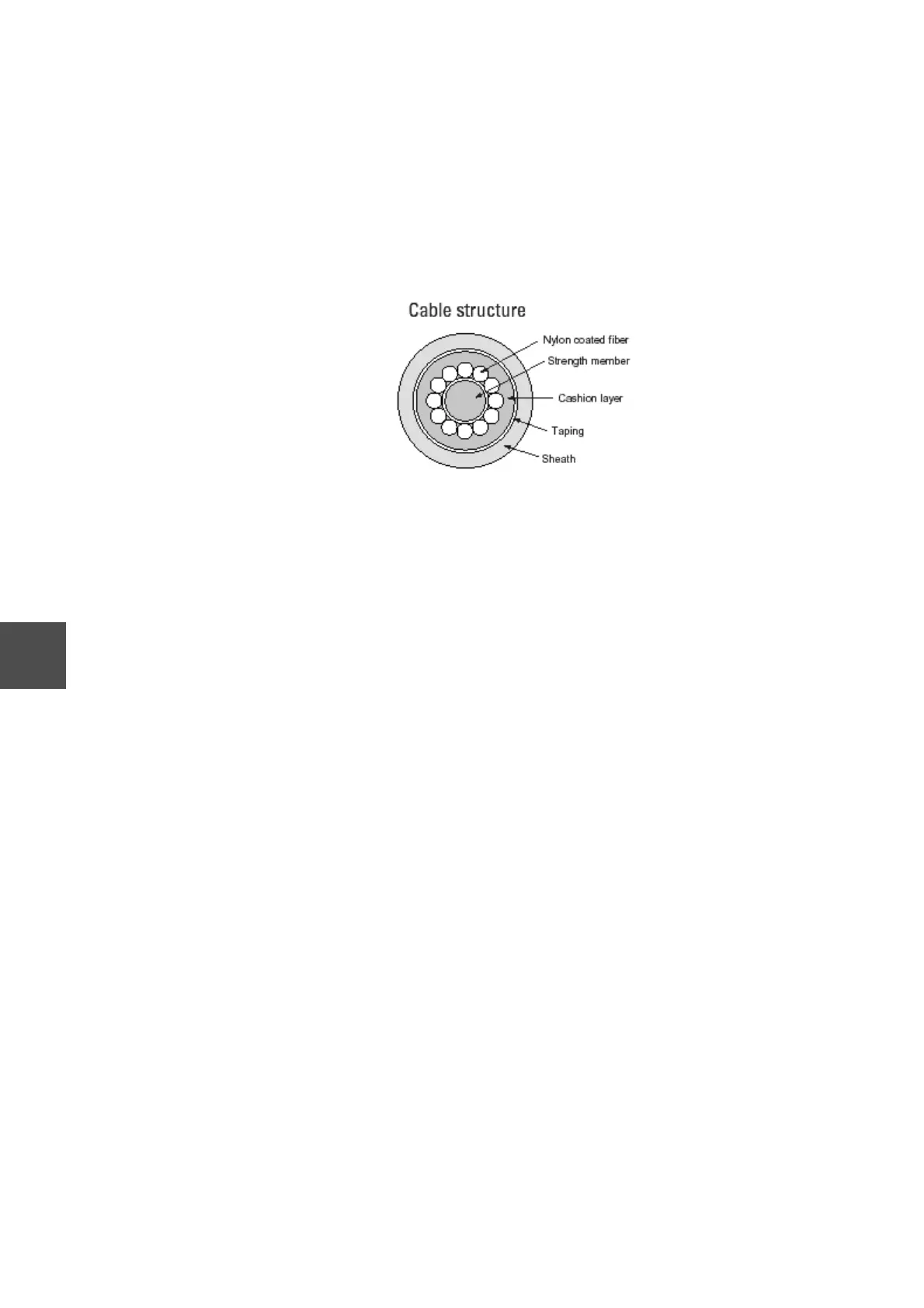

Figure E-4 optical fiber Cable
