Toshiba TCB-SC642TLE2 User Manual

–8–
EN

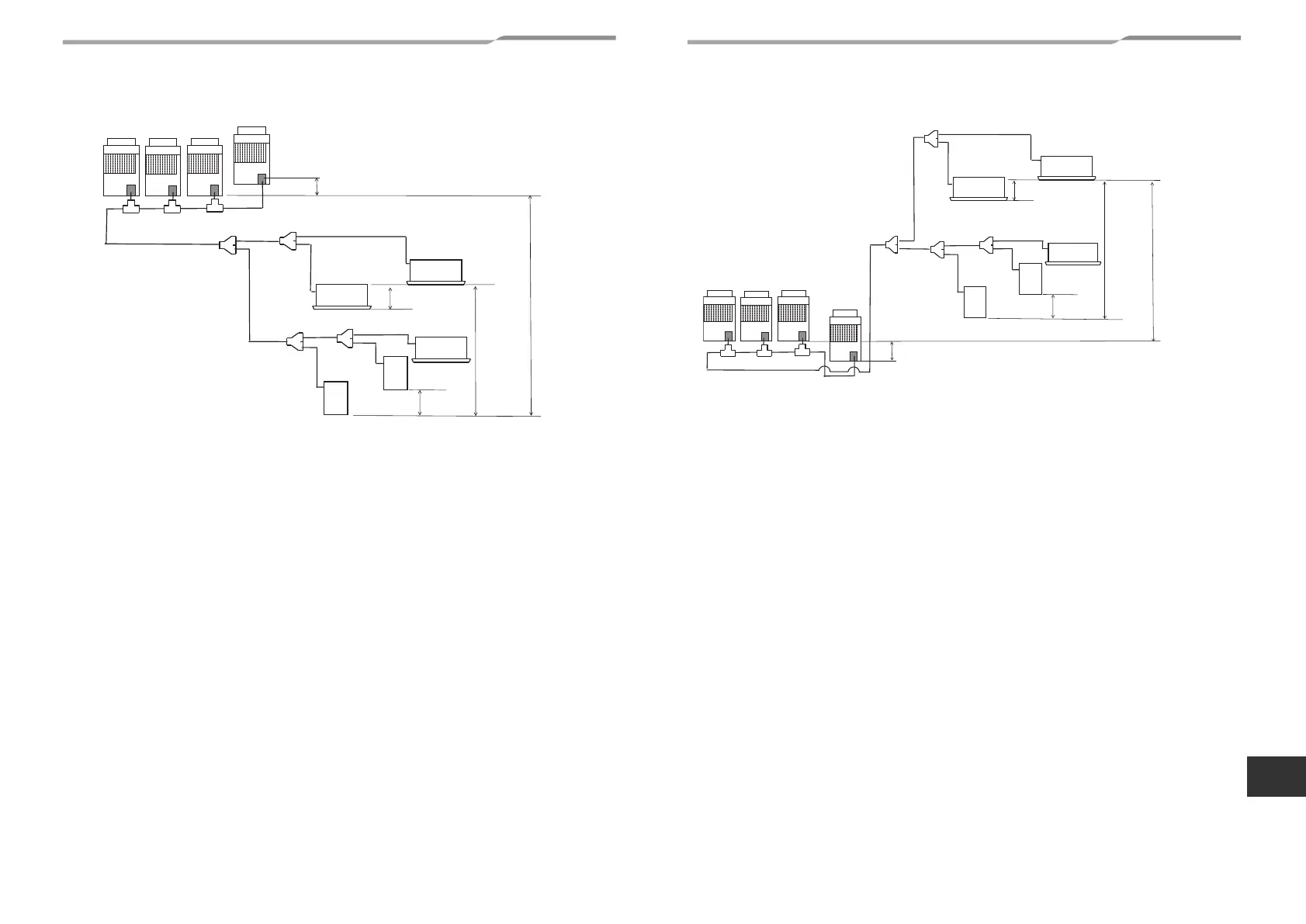

▼ Figure 1
HWM : Hot Water Module
<Upper outdoor units> <Lower outdoor units>
HWM
HWM
Header unit
For hot water module connections, height difference restrictions between standard
indoor units (H2), between HWM units (H4), and between standard indoor units and
HWM units (H5)
H3≤5 m
H2≤3m *1
H5≤3m
*1
H4≤3m
Standard
indoor unit
Standard
indoor unit
*1:When HWM units and standard indoor units are not
operated simultaneously, H2 and H5 ≤ 40 m.
If H2 or H5 > 3 m, H1 shall be max. 50 m.
H1:Height difference between outdoor units and indoor units
(including HWM)
H2:Height difference between standard indoor units
H3:Height difference between outdoor units
H4:Height difference between HWMs
H5:Height difference between standard indoor units and
HWMs
H1
(Outdoor units
installed higher
than indoor units)
H2,H5≤3m:70m
Standard
indoor unit
HWM
HWM
Header unit
H3≤5m
H2≤10 m *1
H5≤10 m
*1
H4≤3m
Standard
indoor unit
H1
(Outdoor units
installed lower than
indoor units)
H2,H5>3 m:30 m
H2,H5≤3m:40m
Standard
indoor unit
Standard
indoor unit
*1:When HWM units and standard indoor units are not operated simultaneously, H2 and H5 ≤ 40 m.
H1:Height difference between outdoor units and indoor units (including HWM)
H2:Height difference between standard indoor units
H3:Height difference between outdoor units
H4:Height difference between HWMs
H5:Height difference between standard indoor units and HWMs
15-EN 16-EN
+00EH99897401-3_00Ta.book Page 8 Wednesday, May 11, 2016 3:36 PM
