3-10. Power Block (Continued)

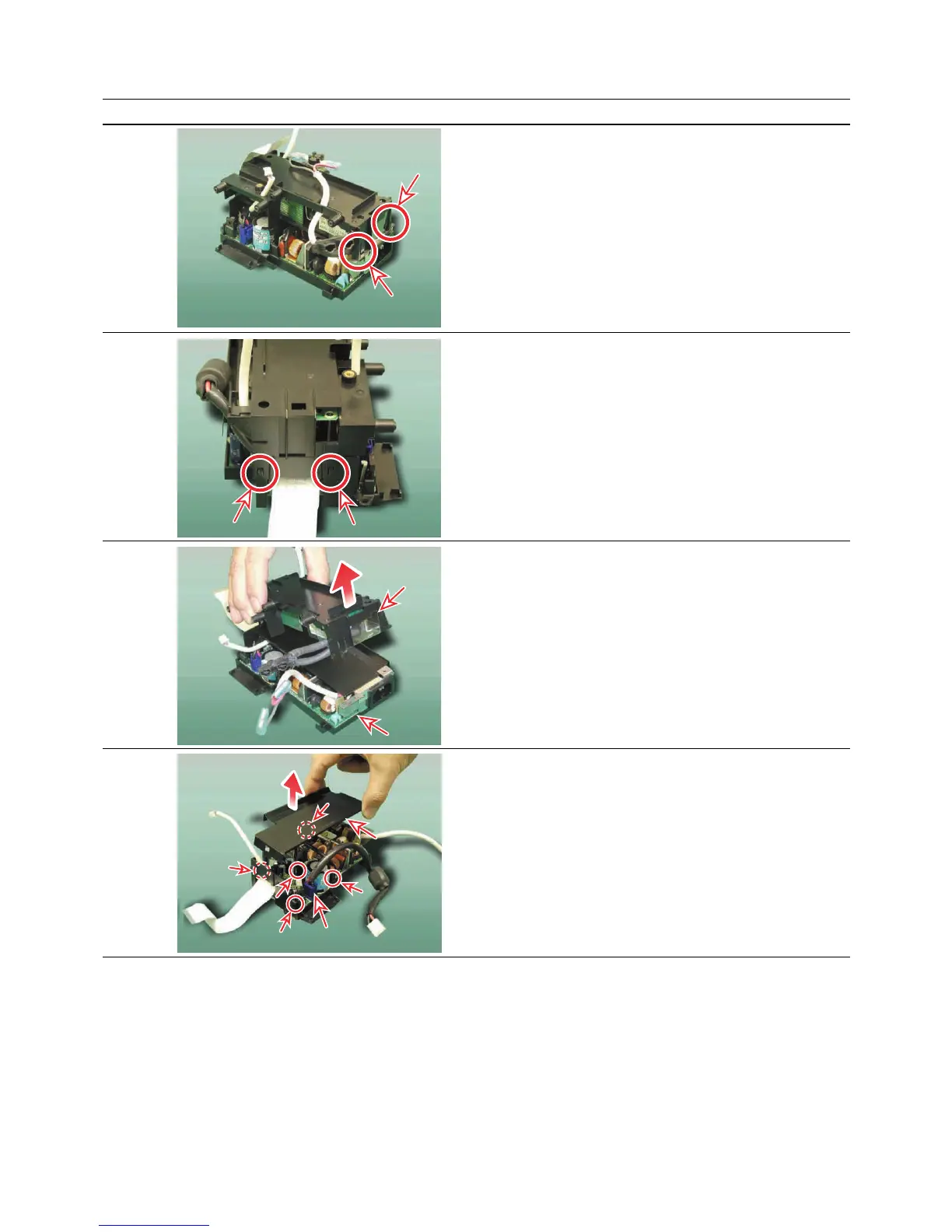

Step Figure Explanation
6 A. Remove 1 screw (M3 x 6).
B. Remove 1 retainer.
[Note]
. Cut the cable retainer fastening the cable between
ballast power supply and power supply block.
. Cut the cable retainer fastening the lead wire between
ballast power supply and main board.
7 Remove 2 retainers.
8 Lift the ballast power supply up to remove.
9 . Remove cover.
. Remove 3 retainers.
. Power PC board can be removed.
A
To Next Page
