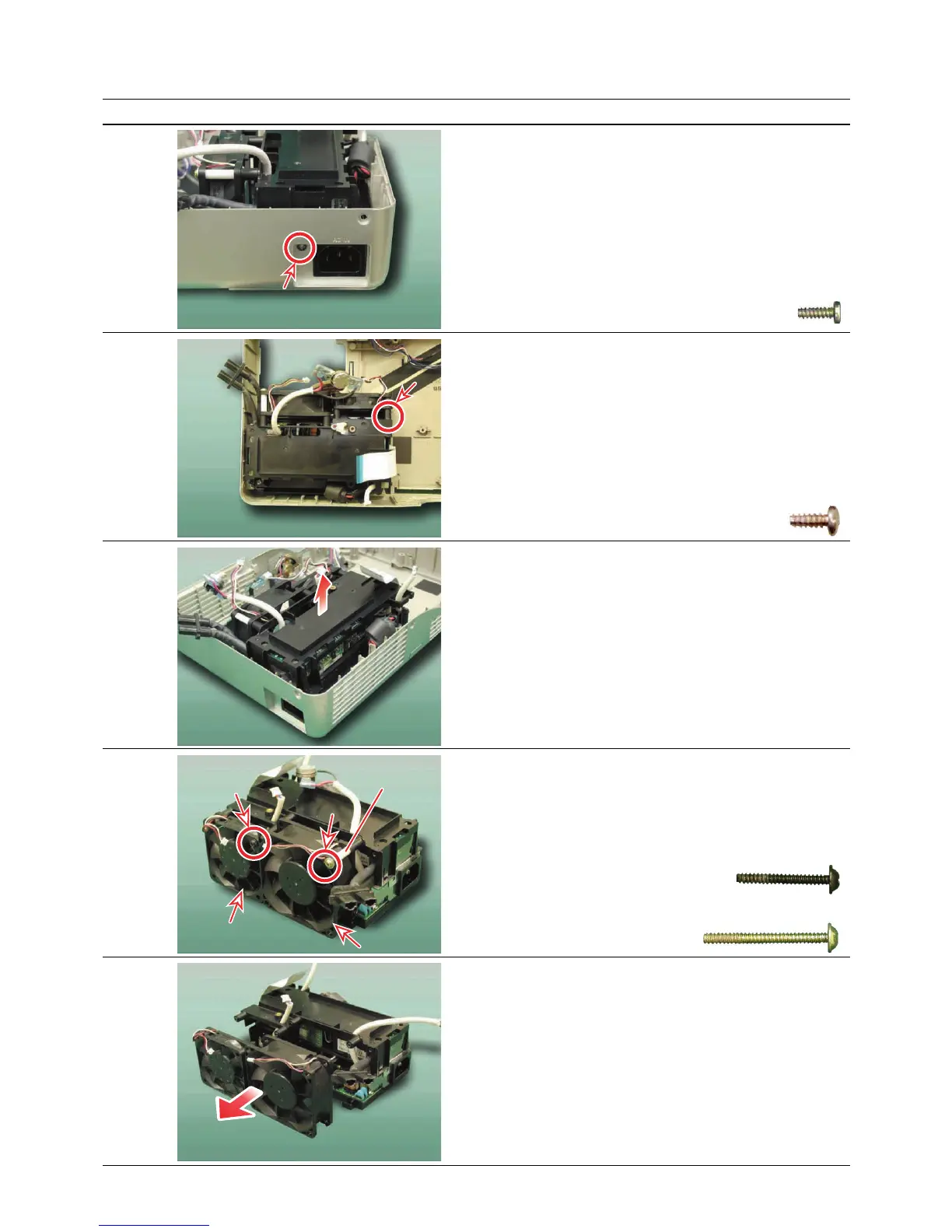

3-10. Power Block
Step Figure Explanation
1 Remove 1 screw (M3 x 6).
Screw: type [M-1]
2 Remove 1 screw (3 x 8).
Screw: type [M-4]
3 Remove the power block.
4 Remove 2 screws (a and b) of the fan blocks 1 and 2.
Remove 1 spacer (5.5 (diameter) x 16.7 (length)).
Screw (a): type [M-6]
Screw (b): type [M-7]
5 Remove 2 fan blocks.
Fan block 2
Fan block 2
Fan block 1
Fan block 1
Fan block 2
Spacer
Spacer
Spacer
Fan block 1
( a )
( a )
( a )
( b )
( b )
( b )
