Preparations

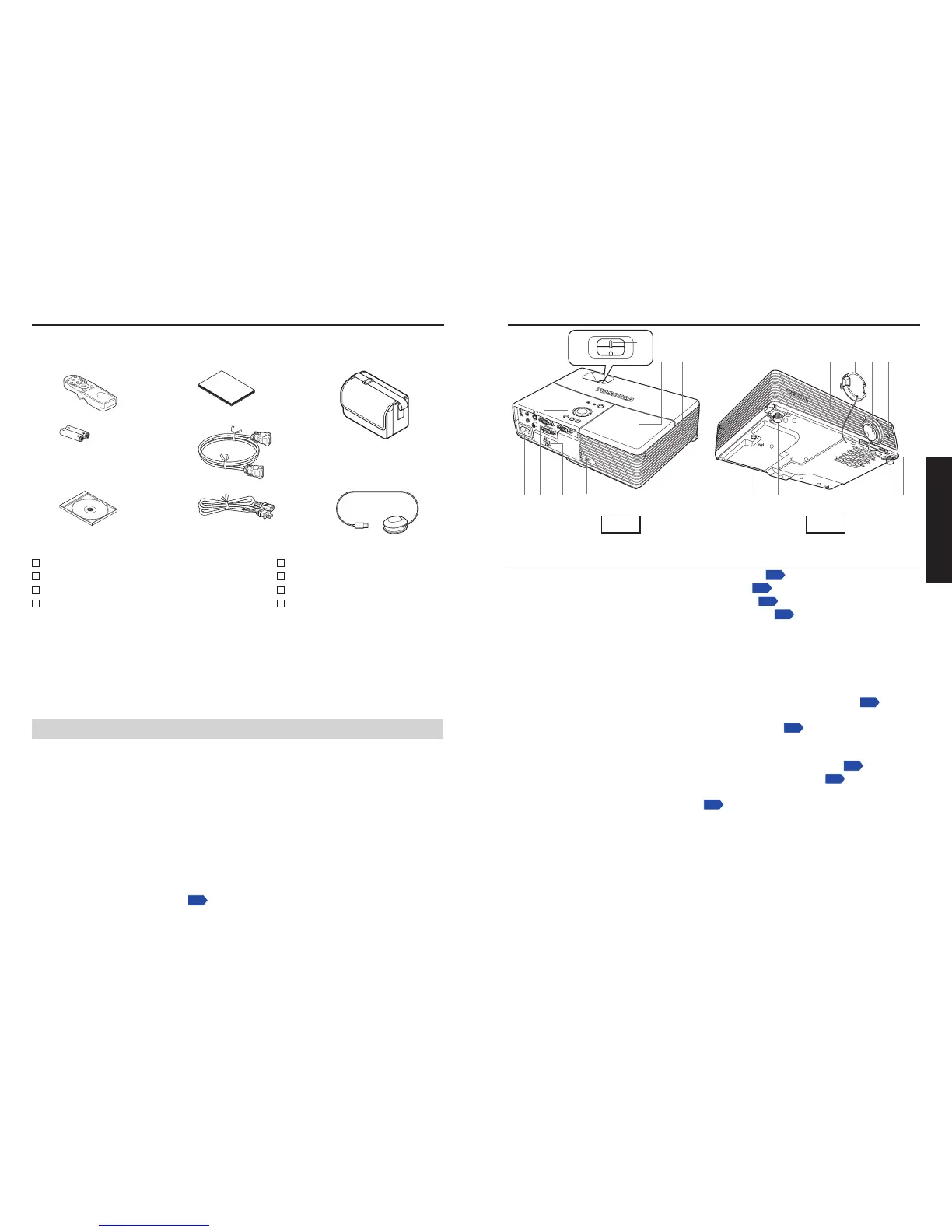

Checking the package contents
Preparations
Please make sure that the following items are included in the box, along with the main unit.
If any item is missing, immediately contact the store where you purchased the product.
(1) (4) (7)
(2) (5)
(3) (6) (8)

(1) Remote control

(2) LR03 (SIZE AAA) batteries for remote control (2)

(3) CD-ROM

(4) Owner’s Manual

(5) RGB cable (3 m)
[Note 1]

(6) Power cord
[Note 1, 2]

(7) Carrying bag

(8) Mouse remote control receiver
Notes
1: To maintain original performance, always use the supplied cables.
2: The shape and number of supplied power cords vary depending on the product destination.
Save Original Packing Materials
The original shipping carton and packing materials will come in handy if you ever have to
ship your projector. For maximum protection when shipping your projector, repack the set
as it was originally packed at the factory.

The Supplied CD-ROM
The supplied CD-ROM contains an owner’s manual which includes information not available
for the printed Owner’s manual (Getting started) and an application (JPEG conversion tool)
in Portable Document Format (PDF). Please use Acrobat Reader 5 or later version to view
the manual.
 
Adobe
®
Acrobat
®
Reader
®
or Adobe
®
Reader
®
The supplied CD-ROM does not contain Acrobat
®
Reader
®
. If you cannot read PDF
files, please install Acrobat Reader software in your computer by downloading it from
the Adobe Systems website.
 
Viewing the manual
Run the CD-ROM and double-click on Start.pdf. Acrobat
®
Reader
®
launches, then
select [Owner’s manual] on the screen and click on the desired language. The Owner’s
Manual cover and list of bookmarks appear. Click on a bookmark title to view that
section of the manual. Click on
p.
to view a reference page with related information.
See the Help menu for more information about Acrobat
®
Reader
®
.
Names of each part on the main unit
(3)
(2)
( 16 )( 15 ) ( 15 )( 14 ) ( 14 )( 13 )( 10 )( 11 ) ( 12 )
(9)(5)(4) (8)
(7)(6)(1)
Back Front
Name : Function
(1) Control panel :
Operates the projector.
p.16
(2) Zooming lever :
Adjusts screen size.
p.27
(3) Focusing lever :
Adjusts screen focus.
p.27
(4) Lamp cover :
Remove to replace lamp.
p.58
(5) Air exhaust : Expels air that has grown hot inside the projector.
(6) Air intake : Draws in air from outside the projector for internal cool
down.
(7) Lens cap : Replace the cap when not using the projector to protect
the lens.
(8) Lens : Projects expanded image.
(9) Infrared remote sensor :
Senses commands from the remote control.
p.19
( 10 ) AC IN socket : Connects the supplied power cord here.
( 11 ) Terminals on the rear panel :
Connects external devices.
p.18
( 12 ) Speaker : Outputs audio sound.
( 13 ) Antitheft lock slot : Attach a safety cable or any other antitheft device.
( 14 ) Foot adjuster release button :
Press to set up or stow the foot adjuster.
p.27
( 15 ) Foot adjuster :
Adjusts the vertical projection angle.
p.27
( 16 ) Air filter : Prevents dirt and dust from getting into the inside of the
projector.
p.60
