Toshiba TOSDIC-CIE DS Hardware Operation Manual

3. Installation and wiring
22
Module installation
Module installation
Install the module to the base card in the following steps (Fig. 3.2).
(1) Place the hook of the module bottom to the back of the base unit guide (c).
(2) Press the module top into the specified position of the terminal block unit or
communication base unit (d).
(3) Tighten the fixing screws of the module top with a Phillips screwdriver (e).
To remove the module, perform the steps in a reversed order.

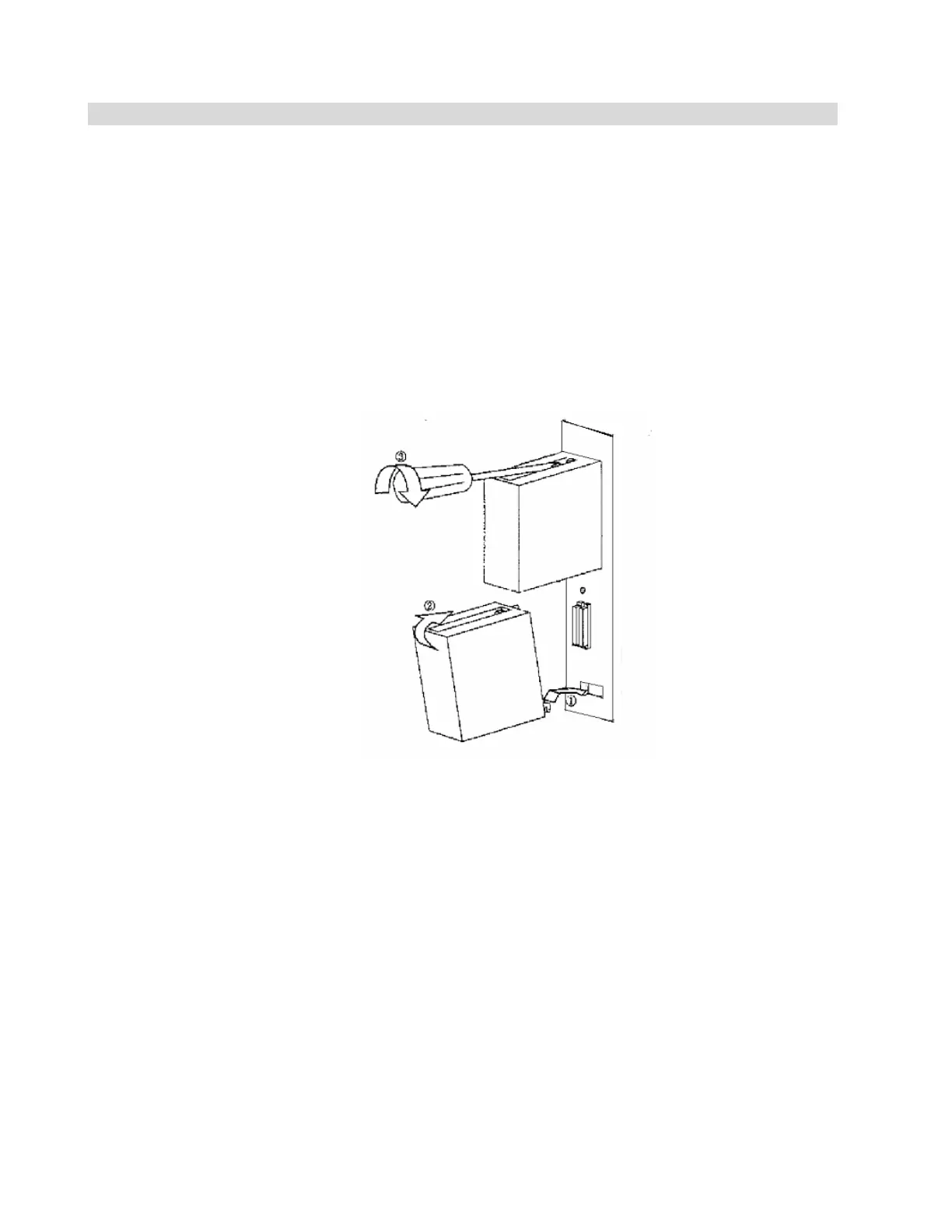

Fig. 3.2 Module installation
