Toshiba TOSVERT VF-AS3 Manual

E6582051
- 69 -
9.4.

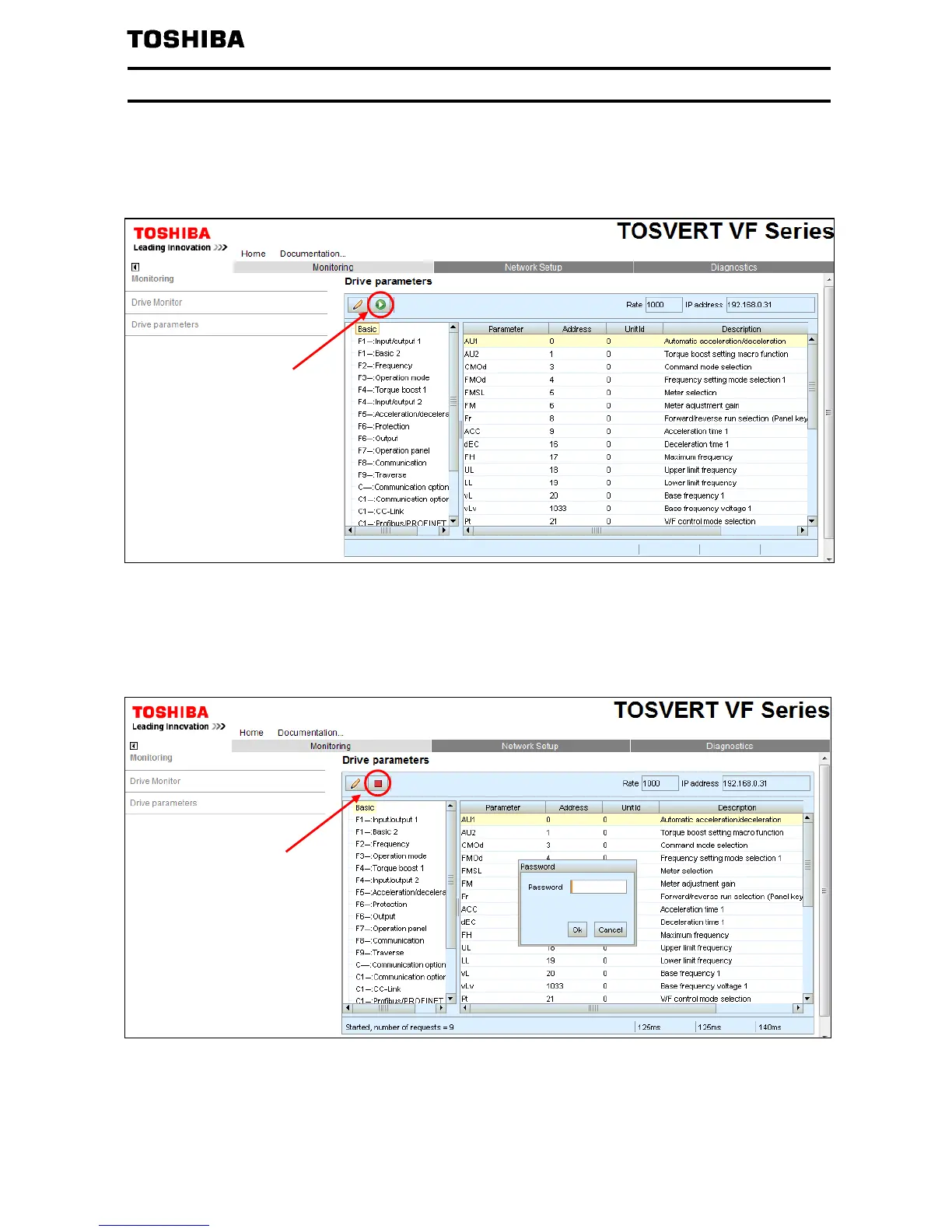

Drive parameters (Main menu: Monitoring)
The parameters of the inverter can be confirmed / set on this page.
The left column is used to select a modify group (or list) of parameters. The right column displays the
parameters, its Modbus address and its current value.

Set the parameters
When you modify the inverter parameter from the Web server, please press the set button, and input the
“Web write password”. (The default password is "USER.")
Start the monitor
Set the parameter

Toshiba TOSVERT VF-AS3 Specifications

General

Model	TOSVERT VF-AS3
Category	Inverter
Overload Capacity	150% for 60 seconds
Cooling Method	Forced Air Cooling
Control Method	V/f control, Sensorless vector control
Braking Unit	Built-in
Communication Protocols	Modbus RTU, DeviceNet, Profibus DP
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground Fault
Enclosure	IP20
Operating Temperature	-10°C to +50°C
Humidity	5-95% (non-condensing)
Altitude	Up to 1000m
