Page 38
Power Supply 24VDC, 300mA
Input per channel NA
Output per channel 230V, 2A / 30 VDC, 2A per
output
Power Rating (Back Plane)
Voltage Rating 3.75 VDC derived from
base model
Current Rating Upto 80mA
P
P
P
P
N
N
N
N
230 VAC
230 VAC
230 VAC
230 VAC
GDR216**S (Relay Type output)
Digital Inputs 0
Digital outputs 16 Relay (Form A) output. 4
points per common
Rated load
230V / 2A, 30VDC / 2A
General
100mm X 35mm X 70mm Mechanical Dimension
Weight 150 gm.

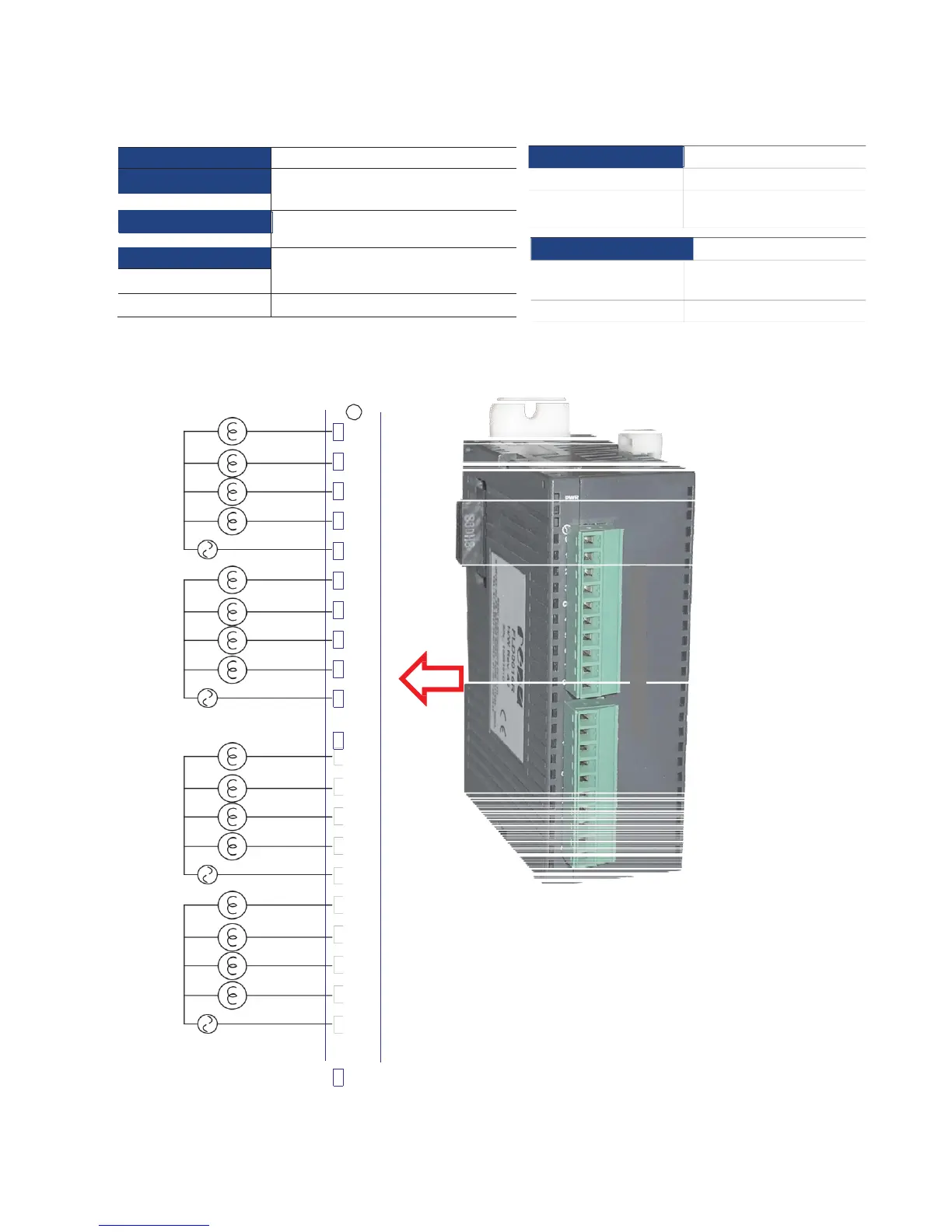

Wiring Diagram for GDR216**S
Y
L1
0
L2
1
L3
2
L4
3
C1
L5
4
L6
5
L7
6
L8
7
C2
L9
8
L10
9
L11
10
L12
11
C3
L13
12
L14
13
L15
14
L16
15
C4
*L1 to L16 are A.C. Load.
