Page 69
3.4 Launching Ladder Editor in OIL-DS

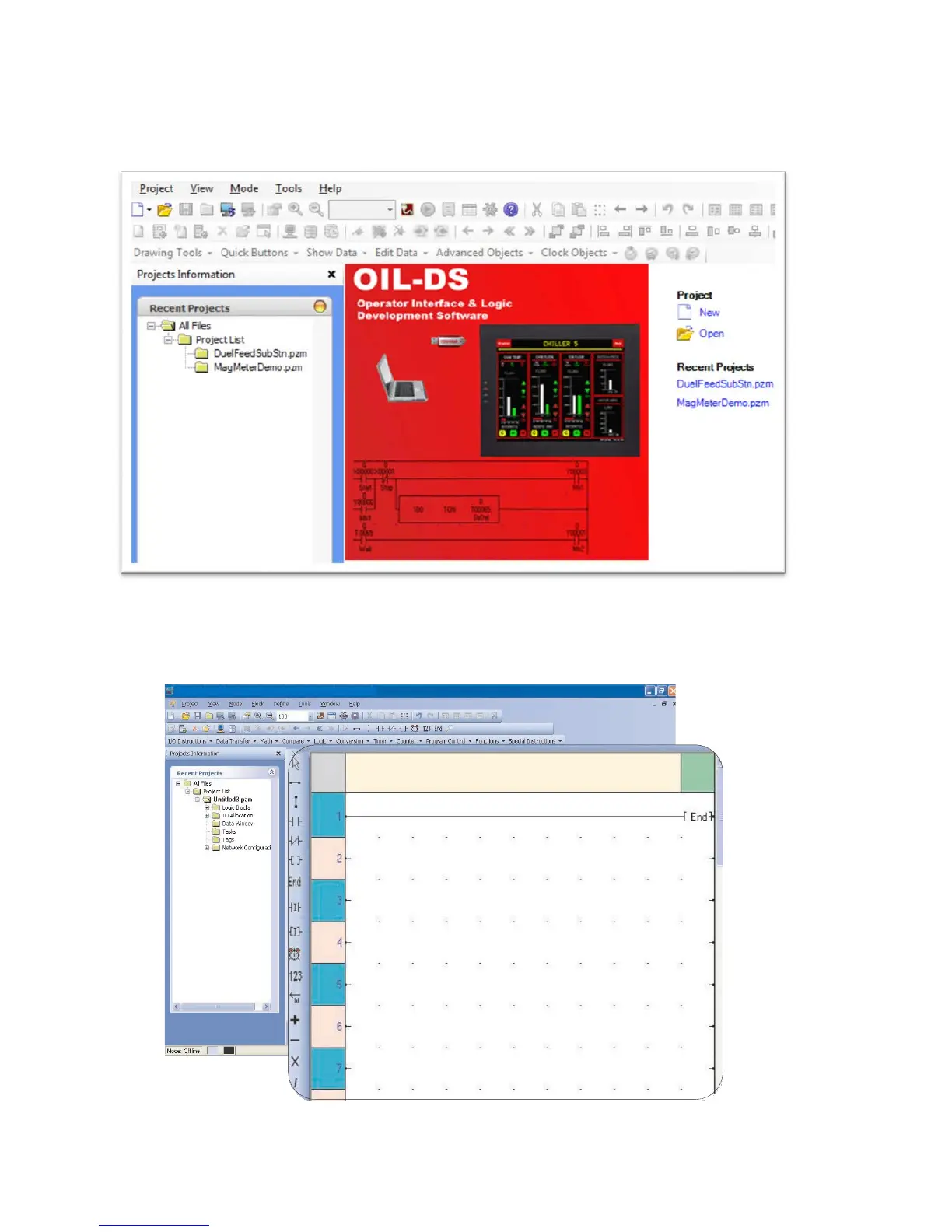

Launch OIL-DS setup software on your PC. Below shown welcome screen will display.
To launch a ladder application either choose Project -> New option or click on New application icon.
Choose V200 PLC and define “Project Configuration” window with the information required.
Click “OK”.
This will launch ladder editor to create an application as shown:
