Page 43

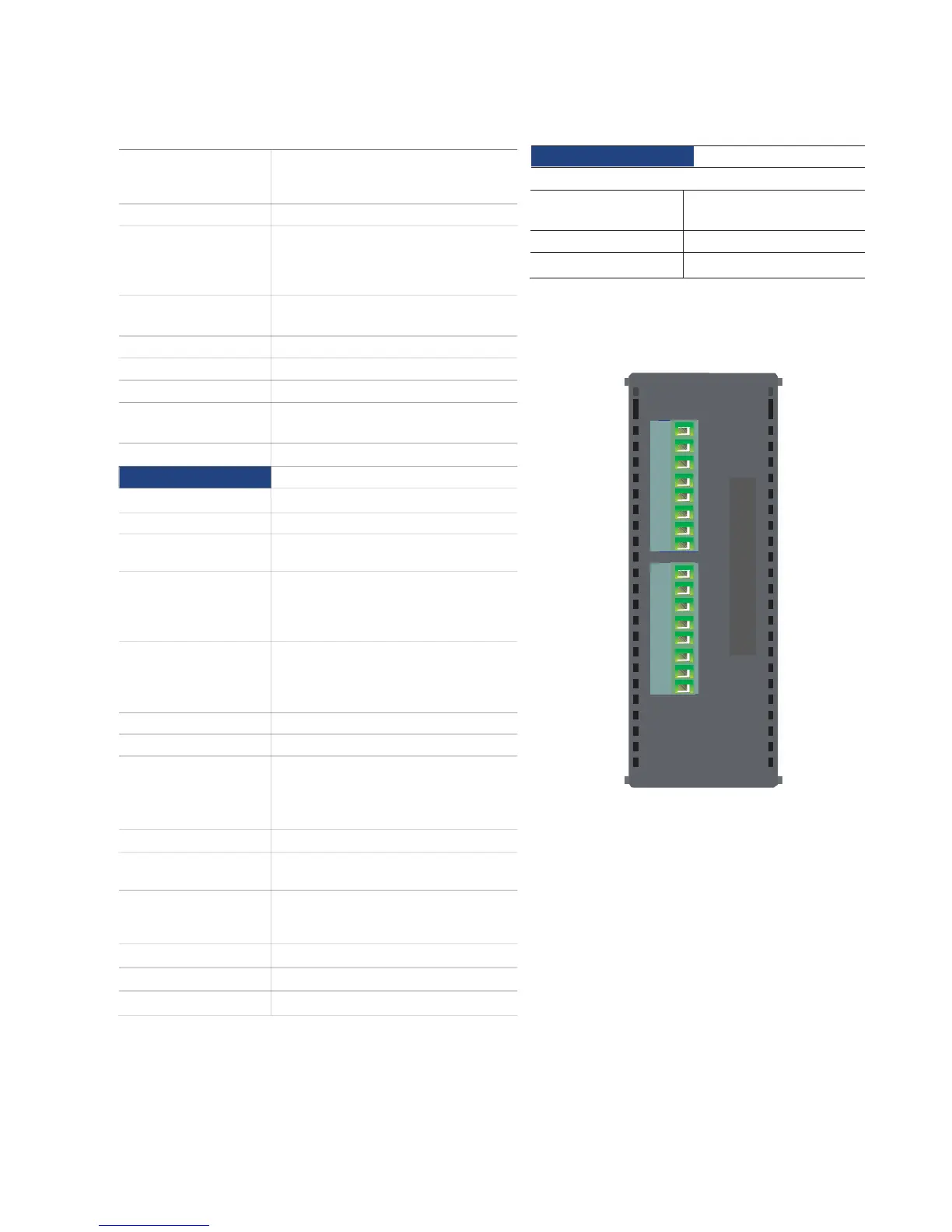

Analog Inputs
8 input channels
Voltage Input 0 - 10 V
Current Input 4- 20 mA
Analog Outputs 0
Isolation Isolation between analog and
digital section. No
interchannel isolation. Power
supply is isolated
Connection method Removable terminals
(3.81mm pitch)
Resolution 16 Bit
Accuracy 0.2 % of Full Scale
Nonlinearity 0.04% Max.
Input Impedance 470K ohm (voltage mode)
100 ohm (Current mode)
Temperature Drift 60 ppm
General
Operating Temperature 0 to 55 Degree.
Storage Temperature (-20) to 85 deg.C.
Operating Humidity 10 to 90 %
(Non condensing)
Vibration 10Hz to 150Hz ,displace-
ment of 0.2 mm (peak) (3
mutually perpendicular
axes)
Shock
490.5 m/s2,2 half-sine
shocks per axis, on 3
mutually perpendicular
axes)
Mechanical Dimension 100mm X 35mm X 70mm
Weight 180 gm.
FTB
Transient / Burst)
IEC61000-4-4 [2.2kV (Fast
(Power- Direct Injection),
1.2KV (I/O - Capacitive
clamp).]
Electrostatic discharge IEC61000-4-2 Level 3
Electromagnetic field IEC61000-4-3, 10 V/m AM
modulation (80 MHz to 1 GHz)
RF Immunity IEC61000-4-6, 10 V/m AM
modulation (0.15MHz to 80
MHz)
Dumped Oscillatory
wave
IEC61000-4-12
Surge Immunity IEC61000-4-5 Level 2
Radiated emission EN50081-2
A
0
GAD208**S
Power Rating (Back Plane)
Digital Side: Power derived from expansion slot connector
Voltage Rating 3.75 VDC derived from
base model
Current Rating Upto 80mA
Power Supply: 24VDC, 100mA
PWR
AIN1
AGND
AIN2
AGND
AIN3
F
AGND
L
AIN4
AGND
AIN5
0
AGND
8
AIN6
0
AGND
AIN7
AGND
L
AIN8
AGND
