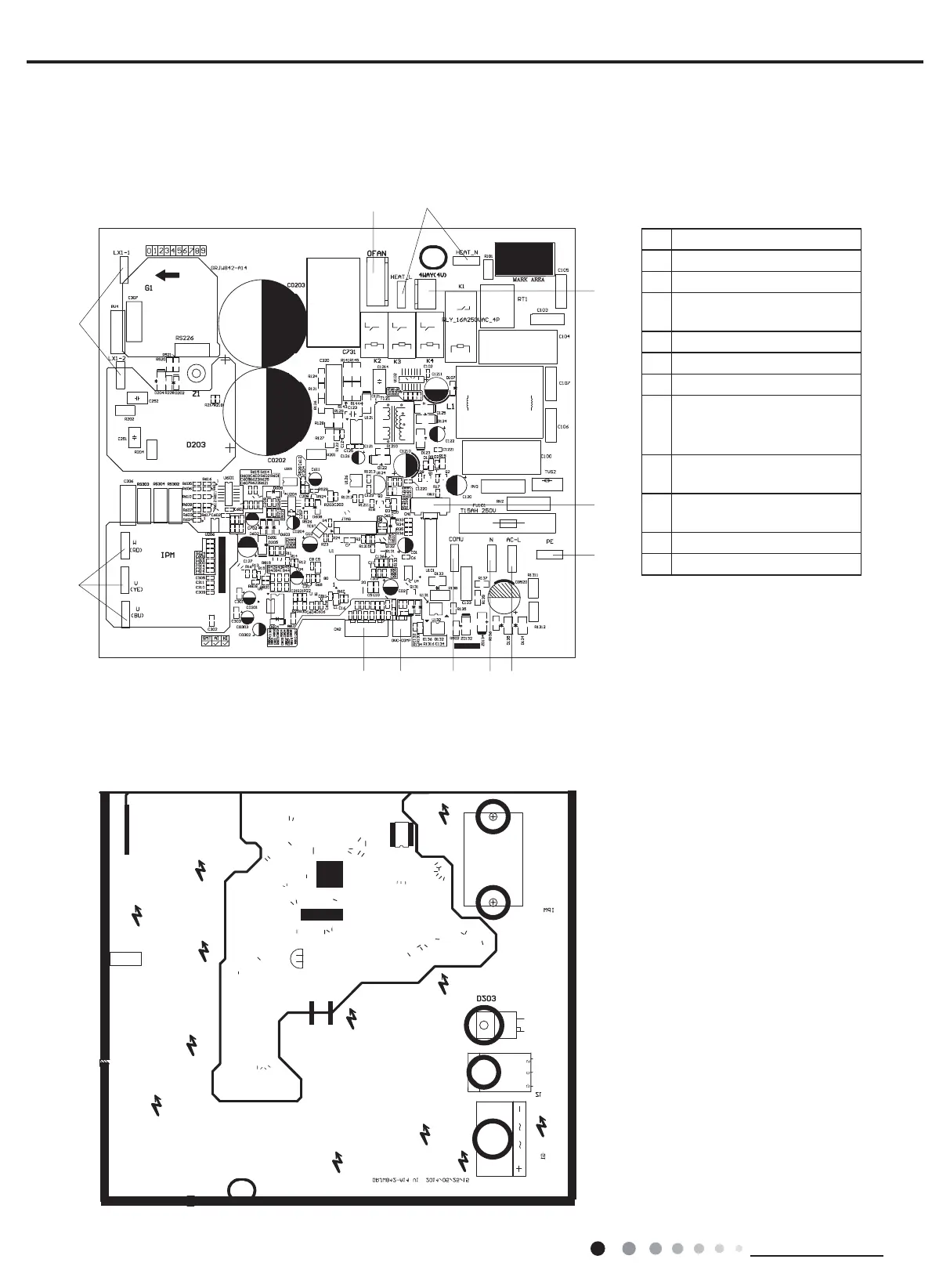

● Top view
Outdoor Unit
● Bottom view
1 Interface of indoor fan
2 Interface of electric heating belt
3 Interface of 4-way valve
4
Interface of electronic
expansion valve
5 Interface of earthing wire
6 Interface of live wire
7 Interface of neutral wire
8
Interface of communication
wire for indoor fan and outdoor
fan
9
Overload interface of
compressor
10
Interface of temperature sensor
wire
11 Interface of compressor wire
12 Interface of PFC wire
TW09HQ1C8D/O TW12HQ1C8D/O
TW18HQ1C8D/O
