51
Technical Information
Service Manual

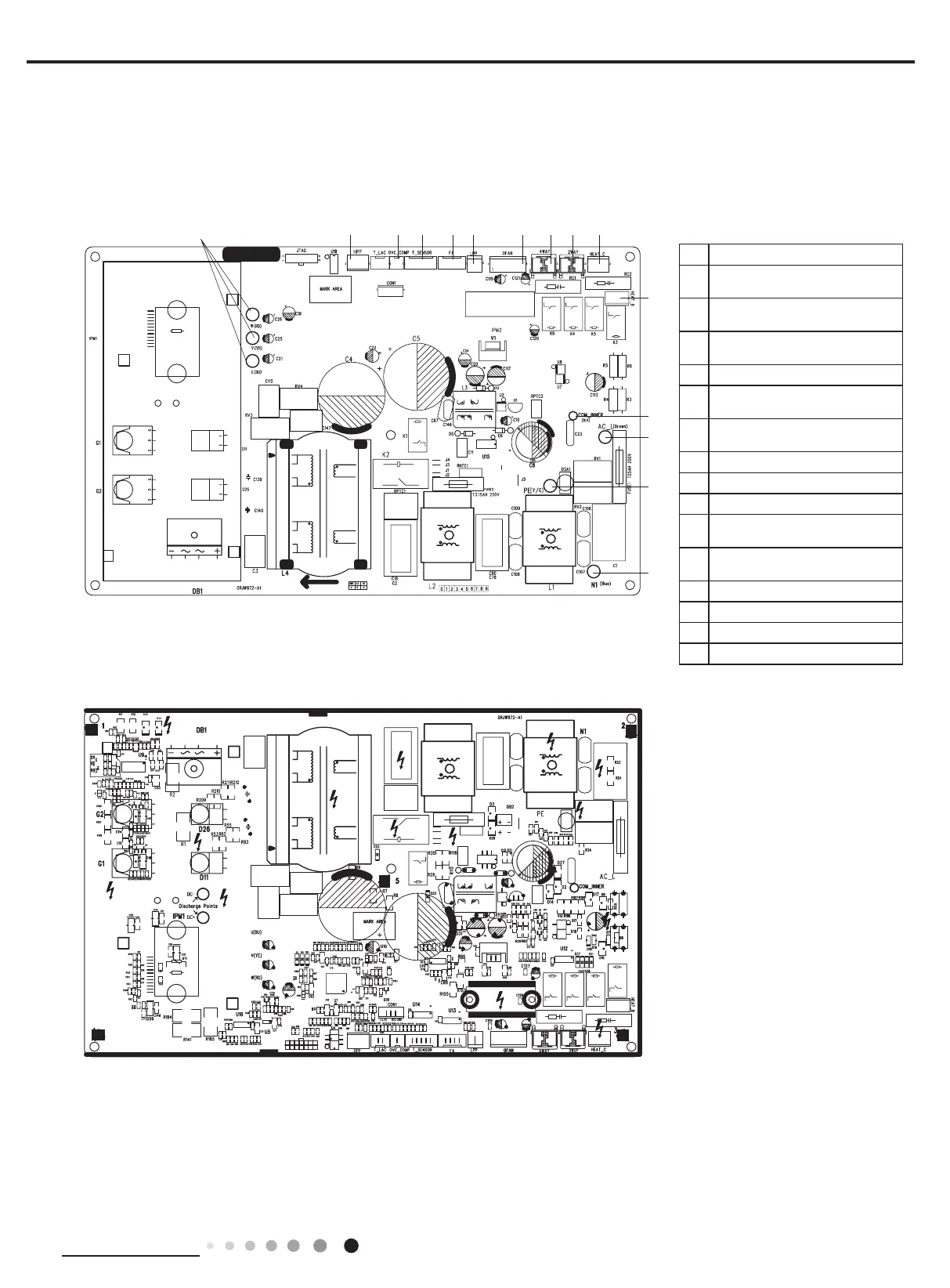

No.Name
1
Compressor three phase input
interface
2
Interface of system high pressure
protection
3
Compressor overload protection
interface
4Interface of temperature sensor
5
Interface of electronic expansion
valve
6
Interface of system low pressure
protection
7Interface of fan
84-way valve interface
92-way valve interface
10
11
Interface of electric heating fo
r
compressor
12 Communication interface
13 Interface of live wire
14
Interface of electric heating fo
r
chassis
Interface of earthing wire
15 Interface of netural wire
● Top view
● Bottom view
1234 65789 01
11
12
13
14
15
TW24HQ1C8D/O
