Tosot TW09HQ1C8D User Manual

52
Technical Information
Service Manual
TW09HQ1B8A/O
TW12HQ1B8A/O

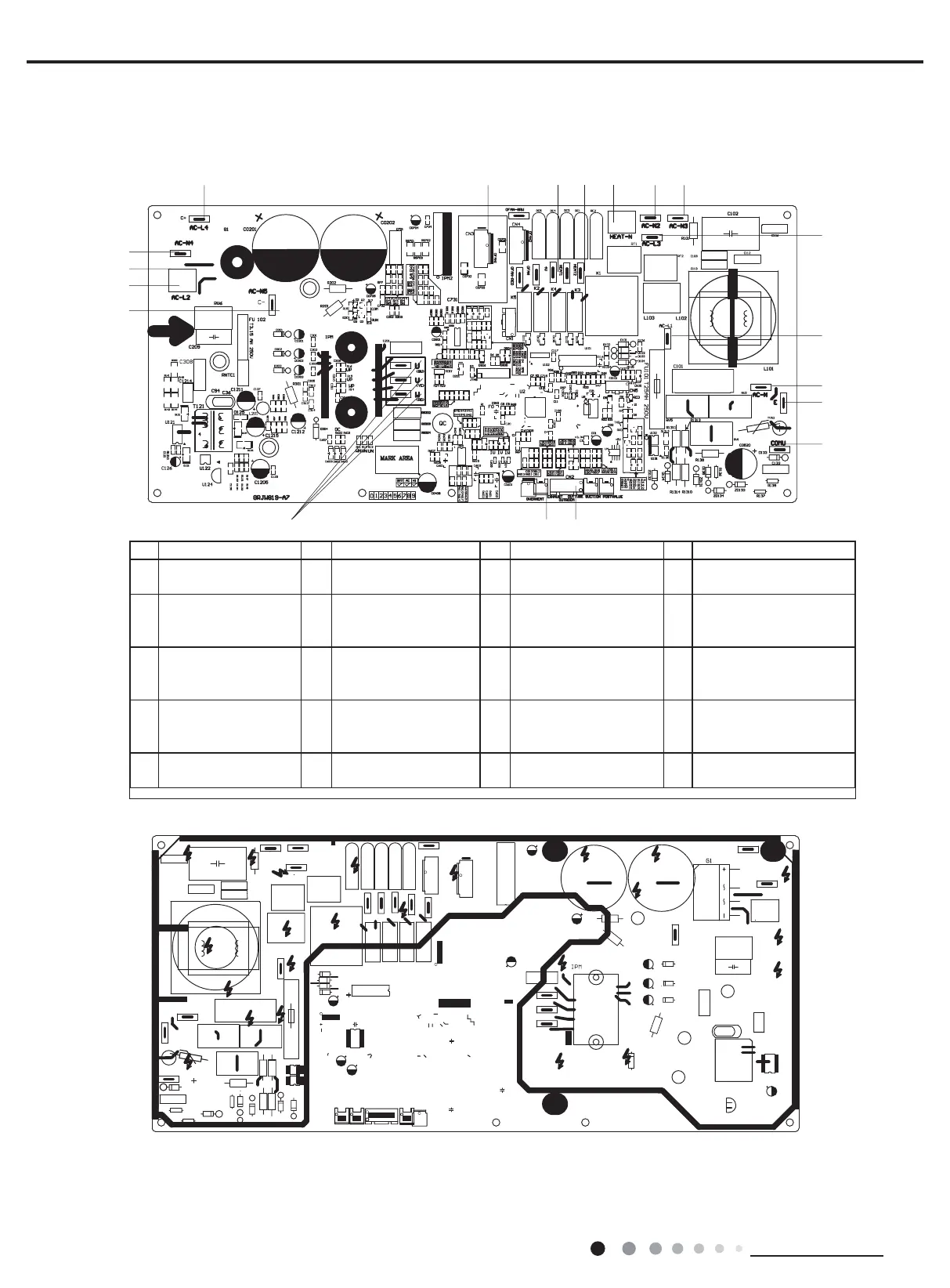

● Top view
● Bottom view
1
2
3
4
5
6717
1819
89
10
11
12
13
14 15 16
No. Name No. Name No.NameNo. Name
1
Terminal of
communication wire
6Terminal of neutral wire 11 Terminal of live wire 16
Terminal of temperature
sensor
2
Terminal of earthing
wire
7Terminal of live wire 12
Externally connect
positive terminal of
capacitor C3
17
Terminal of electric
heating(only for cooling
and heating unit)
3Terminal of neutral wire 8
Terminal of DC fan
motor
13
Externally connect
negative terminal of
capacitor C3
18
Terminal of chassis electric
heating(only for cooling
and heating unit)
4Terminal of live wire 9
Externally connect
positive terminal of
capacitor C4
14
U, V, W three-phase
interface of compressor
19
Terminal of 4-way
valve(only for cooling and
heating unit)
5Terminal of neutral wire 10 Terminal of neutral wire 15
Terminal of compressor
overload protection
