Technical Information
Service Manual
GWC18AGDXF-D3DNA1A/O

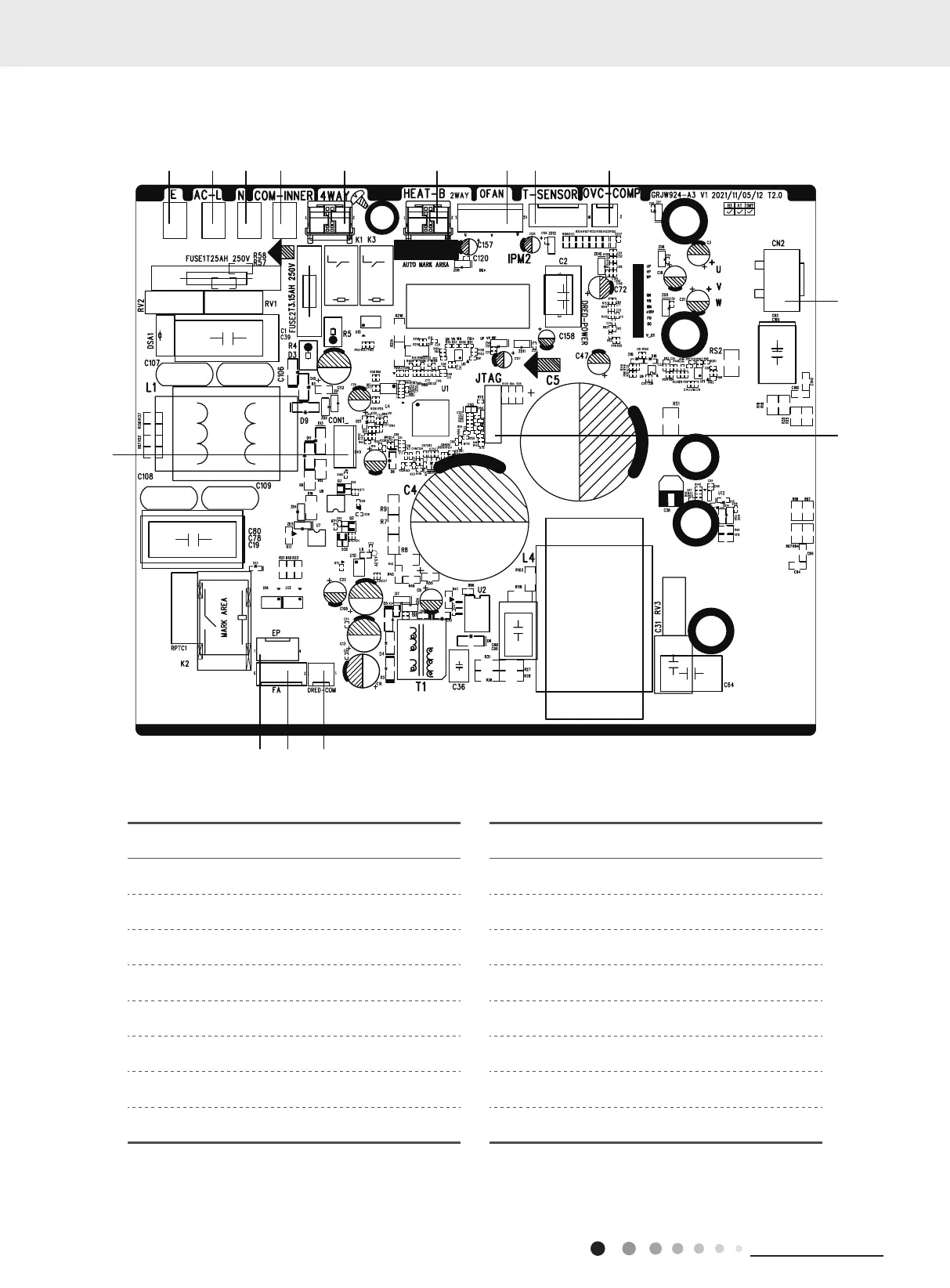

No. Name No. Name
1 Eathing wire 9 Overload interface of compressor
2 Live wire 10 Terminal of compressor
3 Neutral wire 11 Interface of program debugs
4 Communication cable 12 DRED interface
5 4-way valve 13 Terminal of electronic expansion valve
6 Electric heating belt of chassis / 2-way valve 14 EE ash drive
7 DC motor 15 Computer monitoring interface
8 Temperature sensor
11
5. Electrical Part
To Next Page
