29
T
echnical Information
Service Manual
12
34
56
78
9
10
11
12
13
14
15

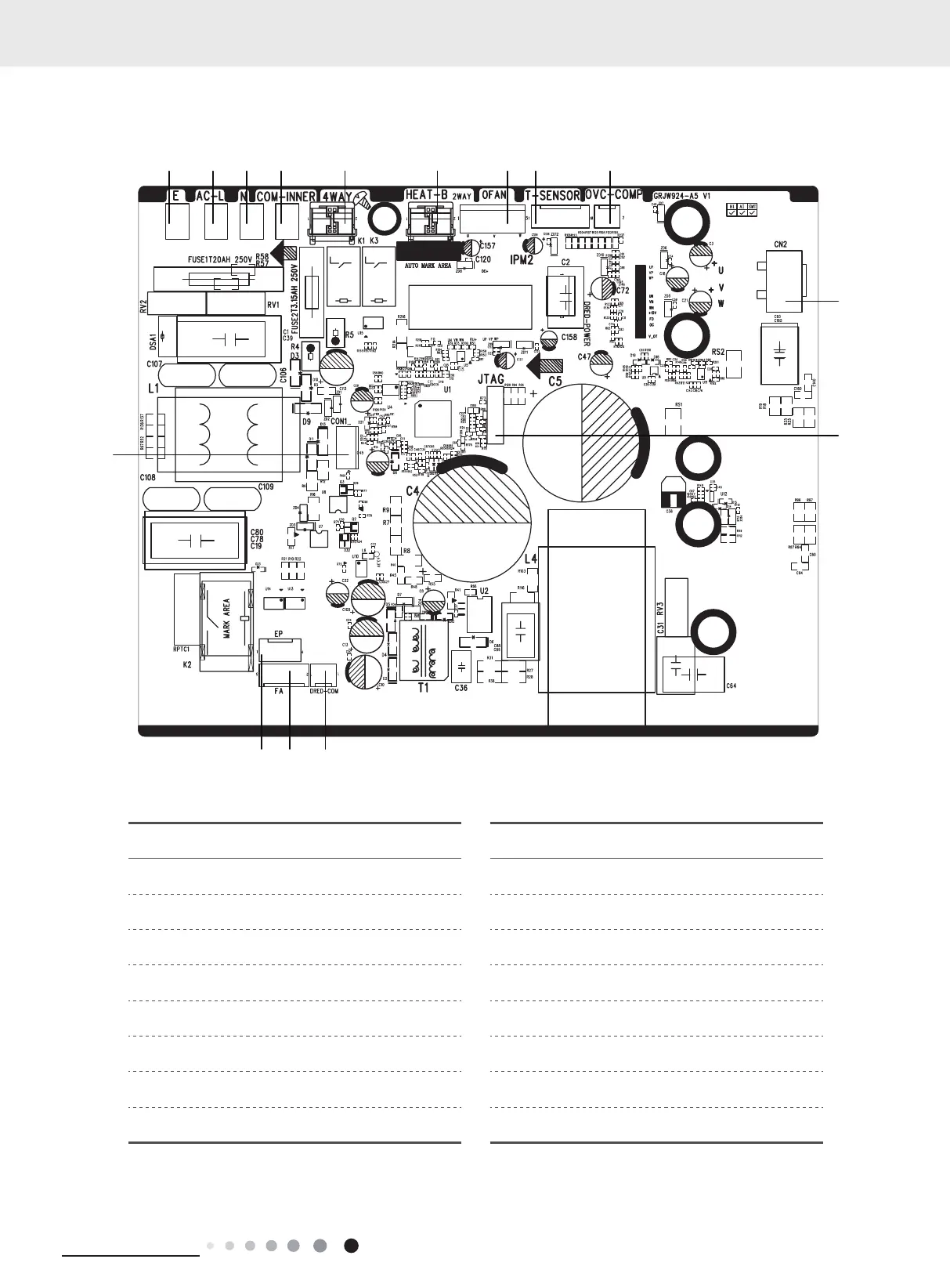

No.
Name
No.
Name
1
Eathing wire
9
Overload interface of compressor
2
Live wire
10
T
erminal of compressor
3
Neutral wire
11
Interface of program debugs
4
Communication cable
12
DRED interface
5
4-way valve
13
T
erminal of electronic expansion valve
6
Electric heating belt of chassis / 2-way valve
14
EE ash drive
7
DC motor
15
Computer monitoring interface
8
T
emperature sensor
TW18HXP2A1DO
5.
Electrical Part
31
33
Table of Contents
Table of Contents
2
Specifications
6
Specification Sheet
6
Capacity Variation Ratio According to Temperature
18
Cooling and Heating Data Sheet in Rated Frequency
19
Outline Dimension Diagram
20
Indoor Unit
20
Outdoor Unit
21
Refrigerant System Diagram
23
Electrical Part
24
Wiring Diagram
24
PCB Printed Diagram
28
Function and Control
34
Remote Controller Introduction of YAP1F7F(Wifi)
34
Ewpe Smart App Operation Manual
39
Brief Description of Modes and Functions
40
Part II : Installation and Maintenance
43
Notes for Installation and Maintenance
43
Installation
46
Installation Dimension Diagram
46
Installation Parts-Checking
48
Selection of Installation Location
48
Electric Connection Requirement
48
Installation of Indoor Unit
48
Installation of Outdoor Unit
50
Vacuum Pumping and Leak Detection
52
Check after Installation and Test Operation
52
Maintenance
53
Error Code List
53
Procedure of Troubleshooting
60
Troubleshooting for Normal Malfunction
73
Exploded View and Parts List
75
Indoor Unit
75
Outdoor Unit
81
Removal Procedure
95
Removal Procedure of Indoor Unit
95
Removal Procedure of Outdoor Unit
100
Appendix
116
Appendix 1: Reference Sheet of Celsius and Fahrenheit
116
Appendix 2: Configuration of Connection Pipe
116
Appendix 3: Pipe Expanding Method
117
Appendix 4: List of Resistance for Temperature Sensor
118
