30
Technical Information
Service Manual
1
2
3
4
5
6
7
8
9
10
11
12
13 14

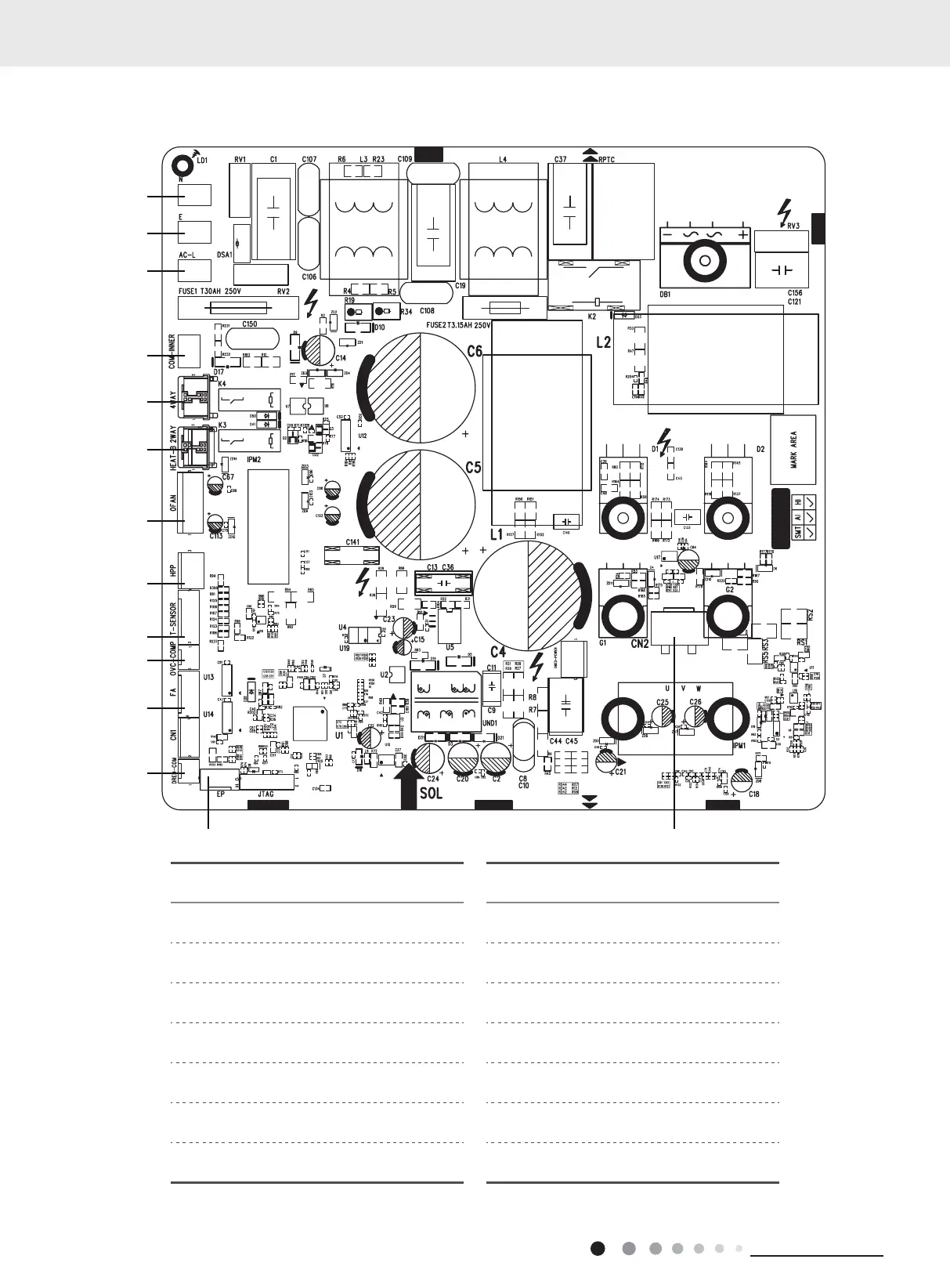

No. Name No. Name
1 Neutral wire 8 Terminal of high pressure protection
2 Grounding wire 9 Temperature sensor
3 Live wire 10 Overload interface of compressor
4 Communication wire 11 Terminal of electronic expansion valve
5 4-way valve 12 Terminal of DRED
6 Electric heating belt of chassis 13 E disk(Reserved)
7 Outdoor fan 14 Terminal of compressor wire
5. Electrical Part
GWC24AGEXH-D3DNA1A/O TW24HXP2A1DO
