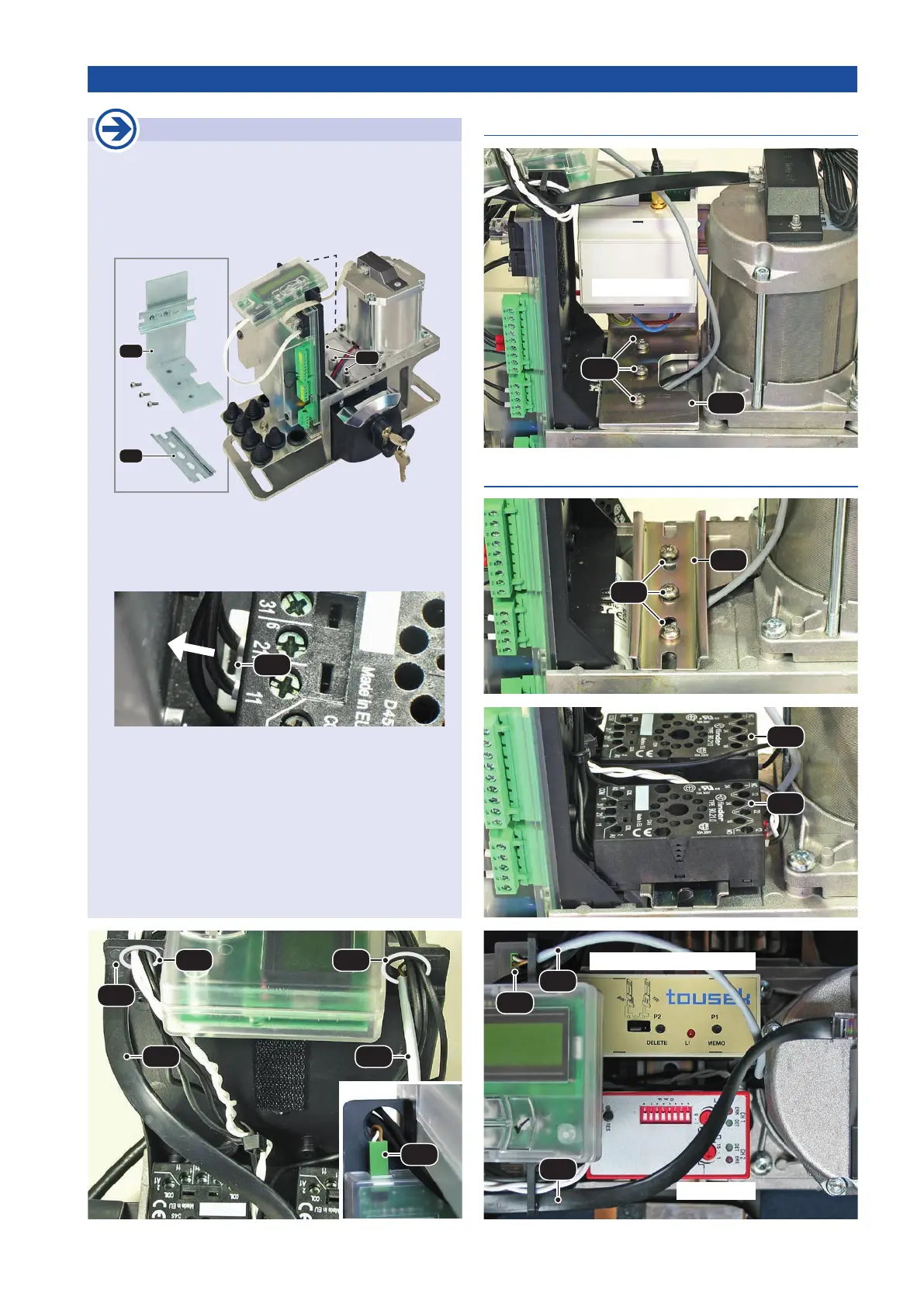

5. Optional DIN rail Sliding gate operator PULL T5, -T8, -T10, -T15
Mounting of additional equipment
• Depending on the accessory either the DIN rail (H)
or the angle with DIN rail (W) can be be used, the
xation in the drive takes place with three screws at
the positions (P). Among others, e.g. devices with
socket for DIN rail mounting are suitable able.
W
H
P
• The pre-wired connectors (SO) are xed by gently
pressing on the DIN rail. To remove a plug socket (con-
nector) from the DIN rail, pull the locking lever(V) with
a screwdriver or similar.
V
• Proceed carefully for cable routing. Never lay the cables
so that that they get damaged when mounting the opera-
tor cover. For conducting the cable enlarge the existing
hole (B1) or make a new hole/driling (B2).
•
Finally, make sure that the sensor cable (S) is in
their respective guides (F) and that the plug-comb
(SK) of emergency release cable (N) is connected to
the control board !
H
DIN rail without angle: e.g. with ISD and BT40-SO
SK
S N
F
B2 B1
e.g. ISD 5/2
e.g. receiver BT40-SO
SK
N
S
Angle with DIN rail: e.g. with GSM 400
P
W
e.g. GSM 400
P
SO
SO
