tousek / E_PULL-T5-T8-T10-T15_04 / 06. 08. 2019 - 9 -
K
KM
F
FE ZM
S
D
C
ground
connection
Grounding
The grounding connection is made
on the operator housing with the
designated grounding screw!

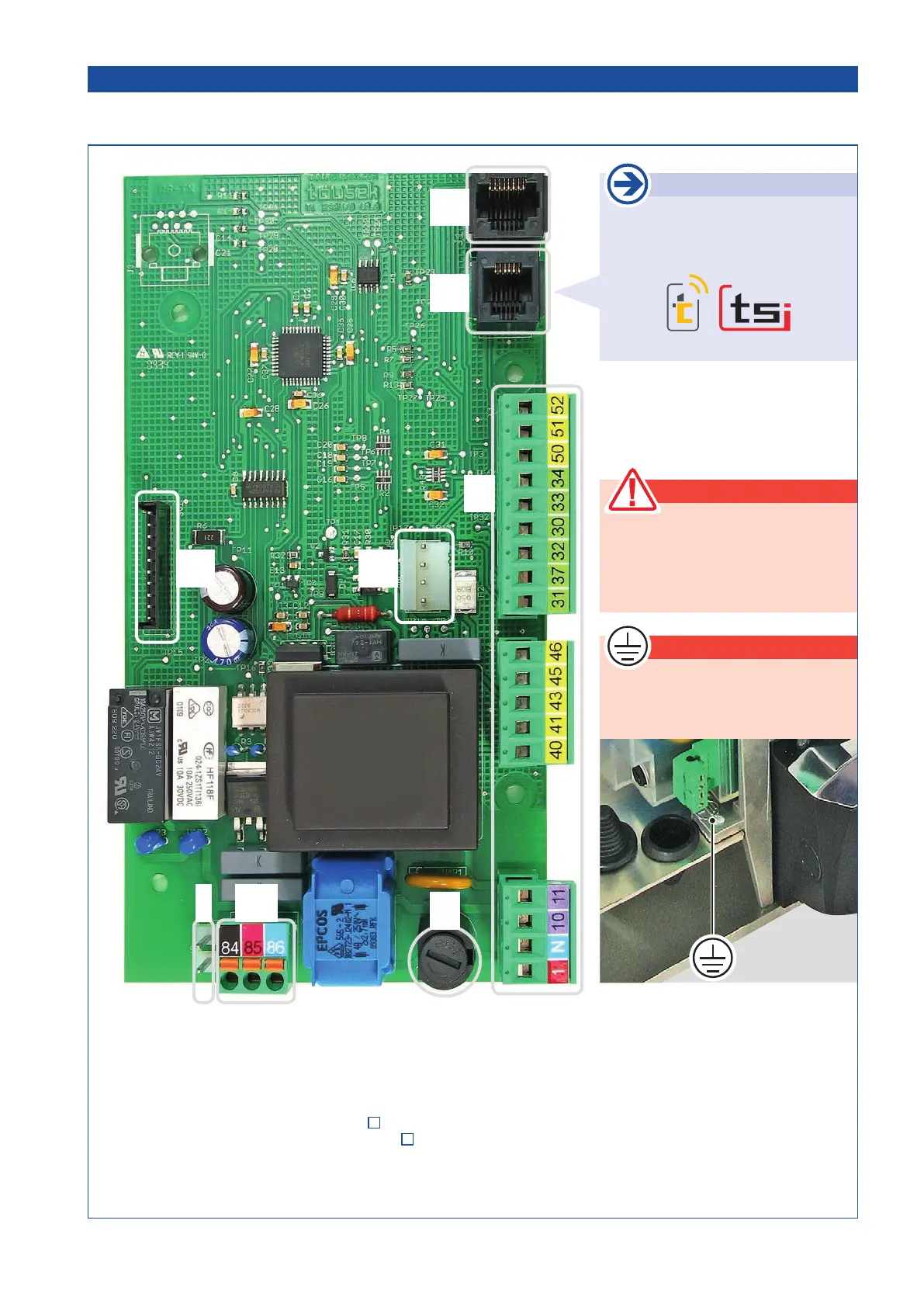

Overview of the control unit
Elements of control board
(K) Terminal blocks
(KM) Motor clamps
(C) Condenser plug
(S) Sensor plug
(D) Display plug
(FE) Slot for optional radio receiver (
page 24 for connection)
(ZM) Connection slot for optional module (
page 22)
(F) Safety fuse T 3,15A
3. Control board Sliding gate operator PULL T5, -T8, -T10, -T15
Attention
During connection, adjustment and
maintenance works please take care,
that the electronic circuit board won´t
be damaged by moisture (rain).
Important
The optional „tousek-connect“ or the
„tousek service interface“ must
be connected with socket (D)!
