Adjustment of respective parts
Crosswise position of feed dog
[Diagnosis]
1. Remove the presser foot.
2. When the feed dog is brought to the highest
position (= upper dead point of needle bar) by
rotating the handweel, measure the sideways

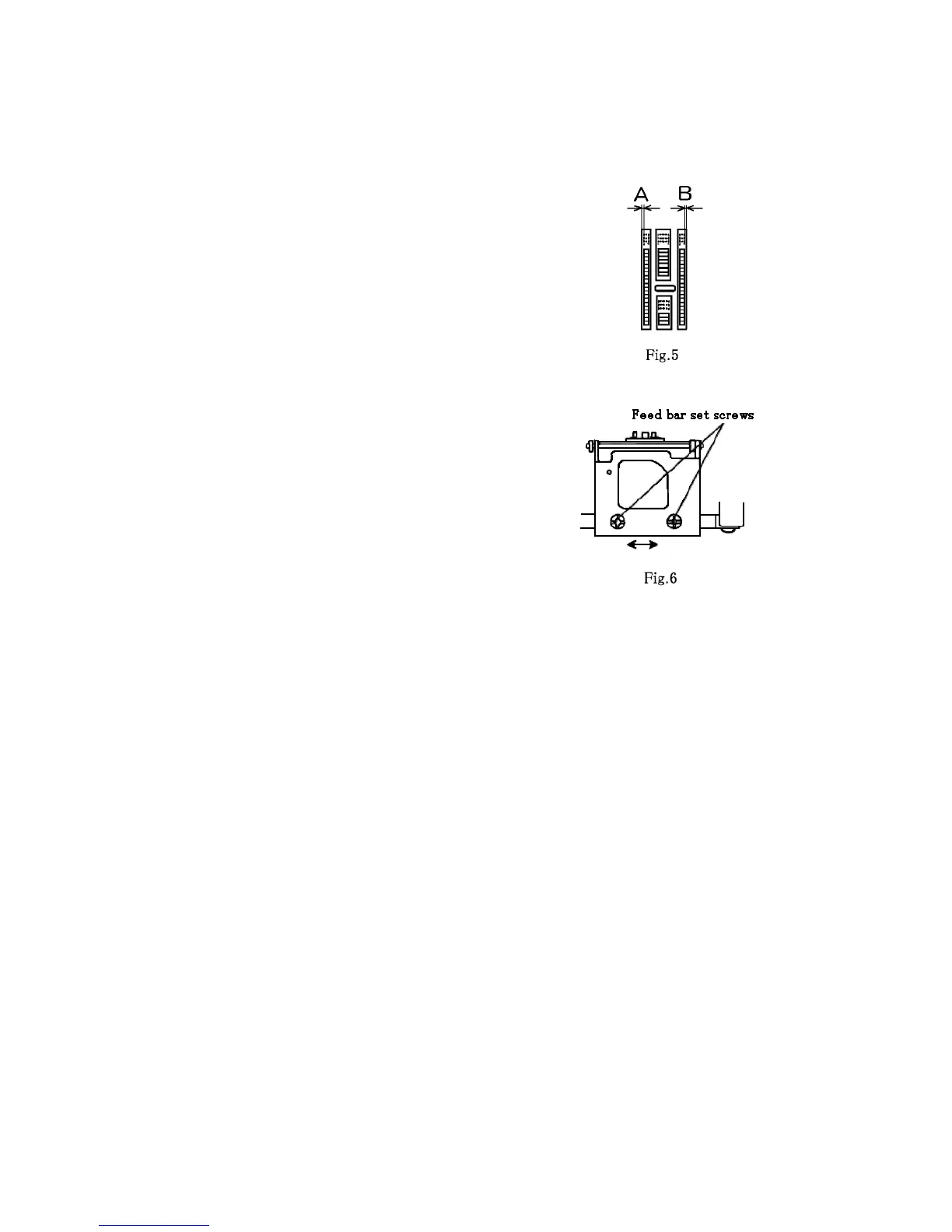

position (A, B) of feed dog.(Fig. 5)
[Standard]
A = B (Fig. 5)
* Make adjustment if the diagnosis result fails to
meet the standard.
[Adjustment]
1. Remove the face cover and the rear cover to
see the adjusting section. (See:page.45)
2. Loosen the feed bar set screws, position the
feed dog at the center between right and
left.(Fig. 6)
* Repeat the adjustment till the standard is met.
