Toyota 2D - Presser foot height

37
Adjustment of respective parts
10.Presser foot height
Presser foot height
[Diagnosis]
1. Set the presser foot.
2. Lift the presser foot.

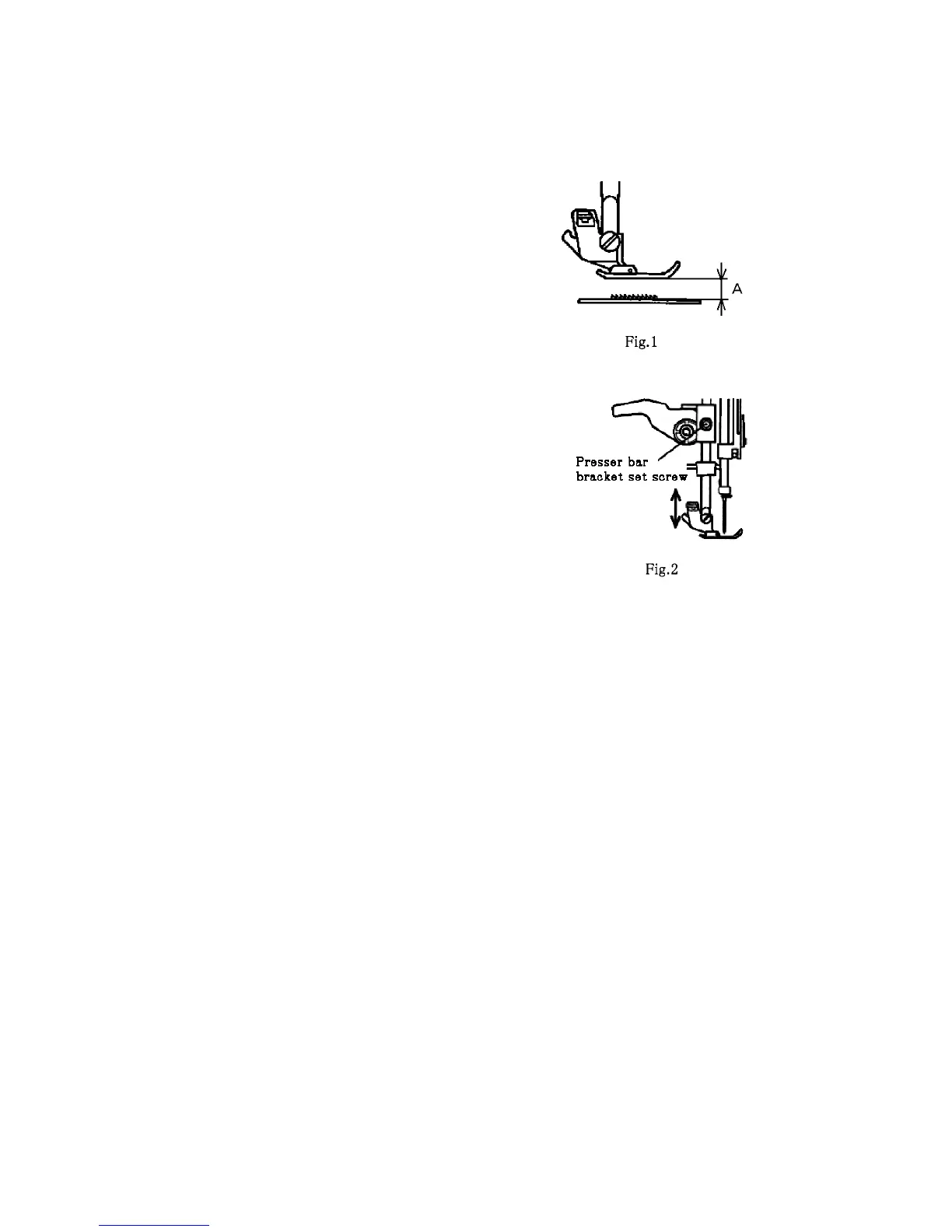

3. Measure the clearance (A) between the
presser foot and the surface of needle plate.
(Fig. 1)
[Standard]
A = 5 to 6 mm (Fig. 1)
* Make adjustment if the diagnosis result fails to
meet the standard.
[Adjustment]
1. Remove the face cover to see the adjusting
section. (See:page.45)
2. Loosen the presser bar bracket set screw,
adjust the presser foot height.(Fig. 2)
3. Tighten the presser bar bracket set screw.
(Fig. 2)
[Note]
Confirm that the presser foot is not tilted to
right or left.
* Repeat the adjustment till the standard is met.
