44
Adjustment of respective parts
[Adjustment]

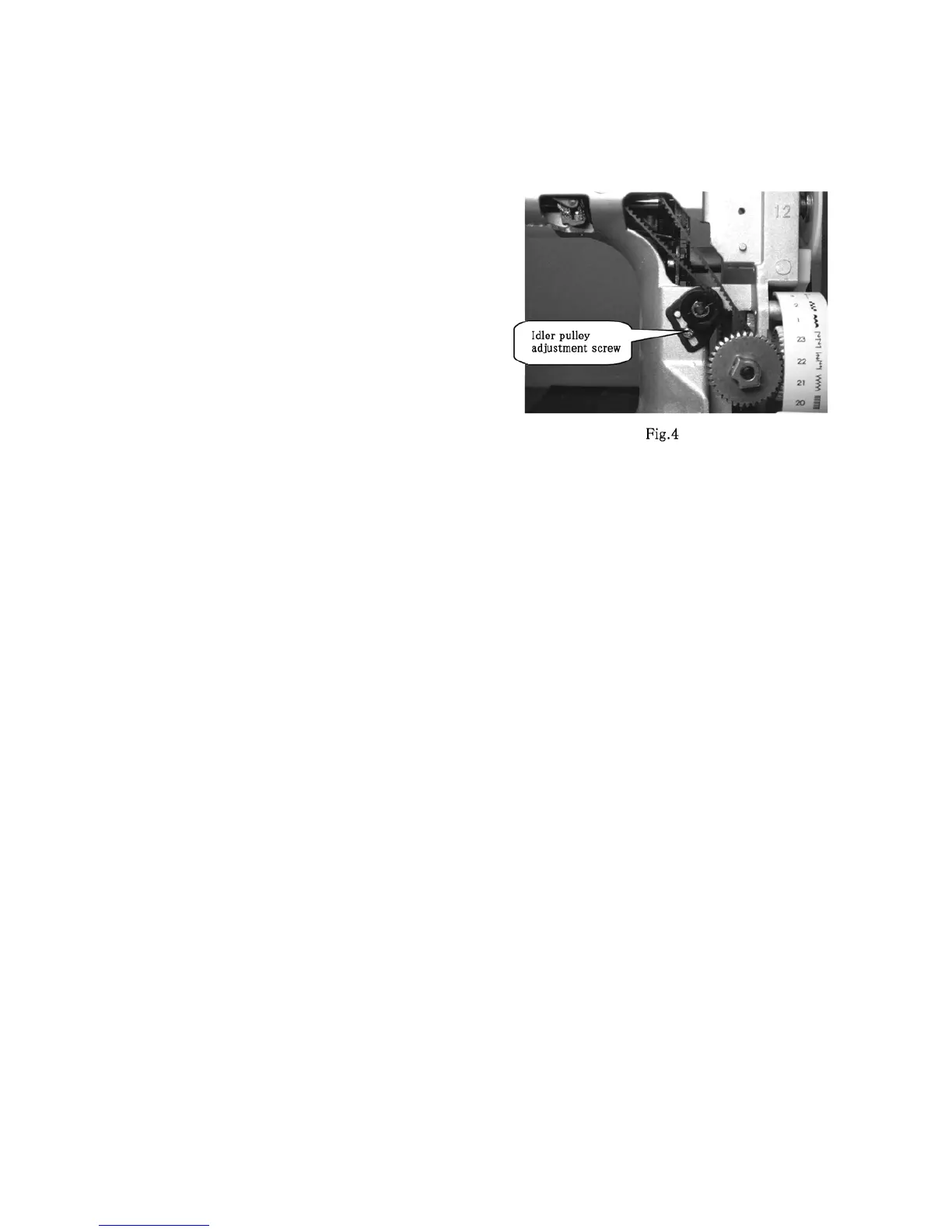

1. Loosen the idler pulley adjustment screw,
adjust the idler pulley position.(Fig. 4)
* Repeat the adjustment till the standard is met.
