Troubleshooting
3. Hook
Clearance
between
shuttle
driver and
shuttle hook

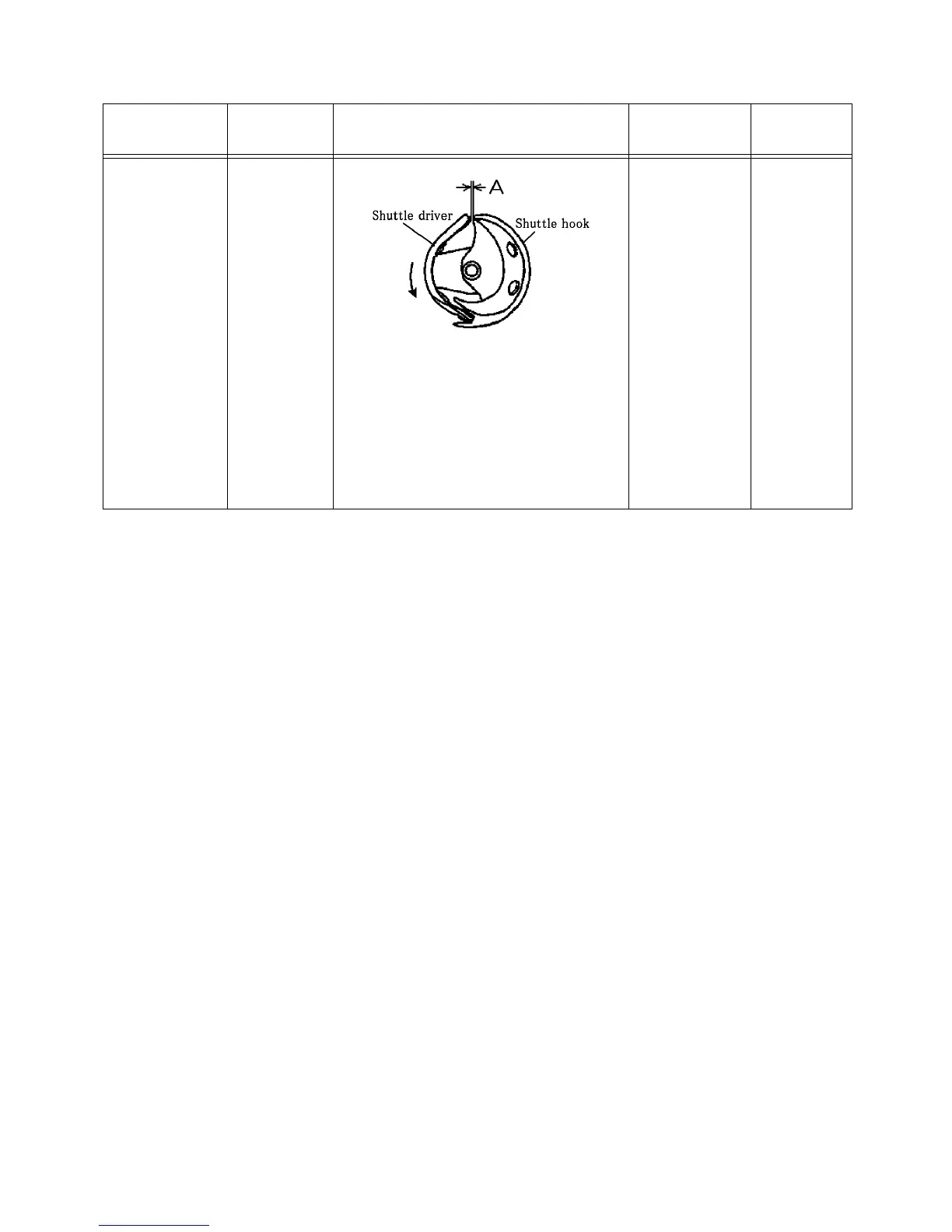

<Diagnosis>
Remove the extension table, and open
the shuttle cover.
Remove the bobbin case from the
hook.
When the shuttle driver is turned to left
by rotating the handweel, measure the
clearance (A) between the shuttle driv-
er and the shuttle hook.
A = 0.3 to 0.6
mm
[Adjustment]
page.42
Step Item Diagnosing Method Standard
Reference
Page
