Fuel Pressure Control System

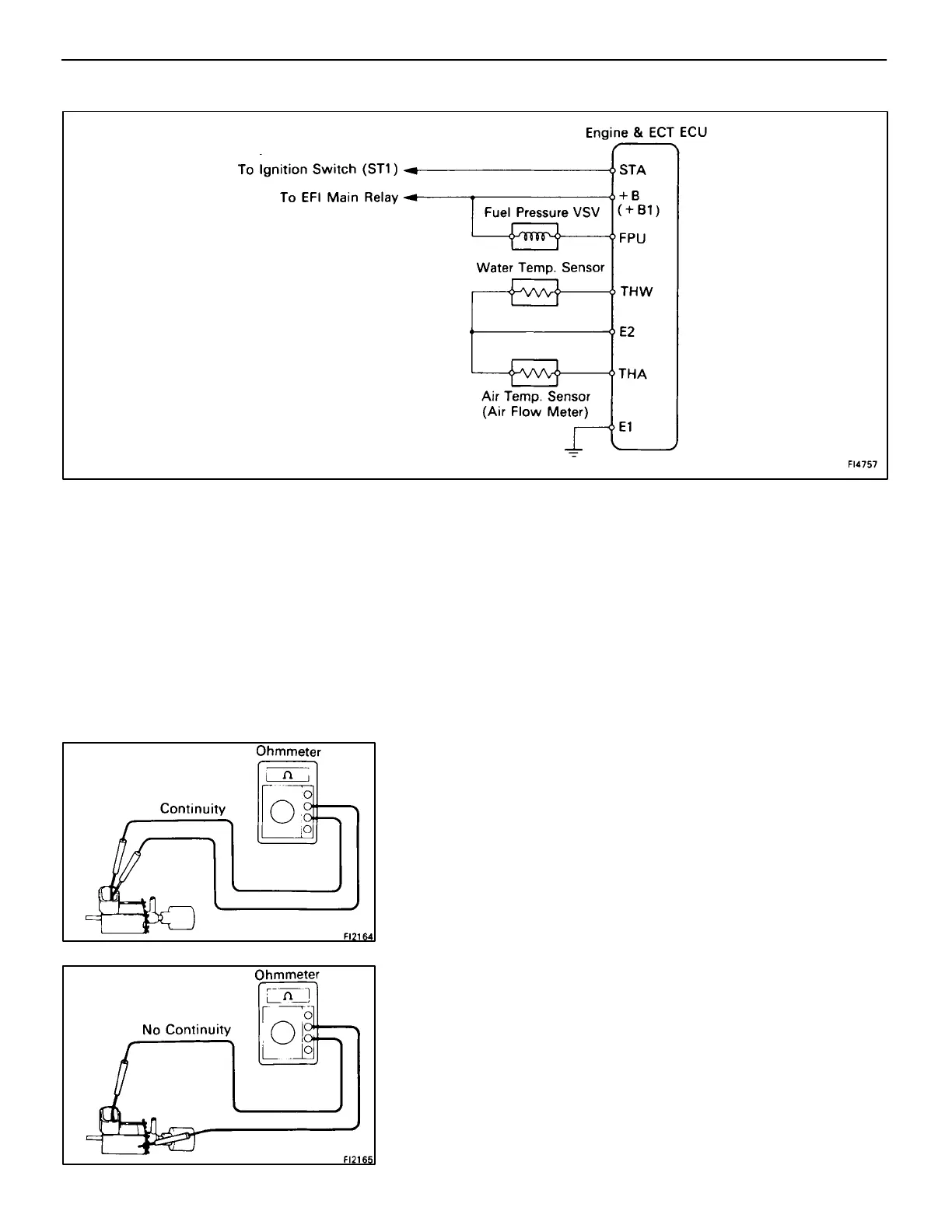

INSPECTION OF FUEL PRESSURE
COTROL SYSTEM
1. INSPECT WATER TEMPERATURE SENSOR
(See page FI–50)
2. INSPECT INTAKE AIR TEMPERATURE SENSOR
(See page FI–37)
3. INSPECT FUEL PRESSURE VSV
A. Inspect VSV for open circuit
Using an ohmmeter, check that there is continuity between
terminals.
Resistance (Cold): 33–39 W
If there is no continuity, replace the VSV.
B. Inspect VSV for ground
Using an ohmmeter, check that there is no continuity be-
tween each terminal and body.
If there is continuity, replace the VSV.
FI–52
–EFI SYSTEM Electronic Control System (Fuel Pressure Control System)

Toyota 2VZ-FE Specifications

General

Engine Type	V6
Compression Ratio	9.0:1
Fuel System	Multi-Point Fuel Injection
Fuel Type	Gasoline
Valvetrain	DOHC, 4 valves per cylinder
Block Material	Cast Iron
Head Material	Aluminum
Displacement	2.5 L
Bore x Stroke	87.5 mm x 69.2 mm (3.44 in x 2.72 in)
