V. OPERATOR MAINTENANCE
FUSE
REPLACEMENT
1
.5-3.2
ton models
3.5-5.5 ton models
1.5-3
2
ton models
(Option: Load handling chopper)
1
5-3
2
ton models
(PS
contactor)

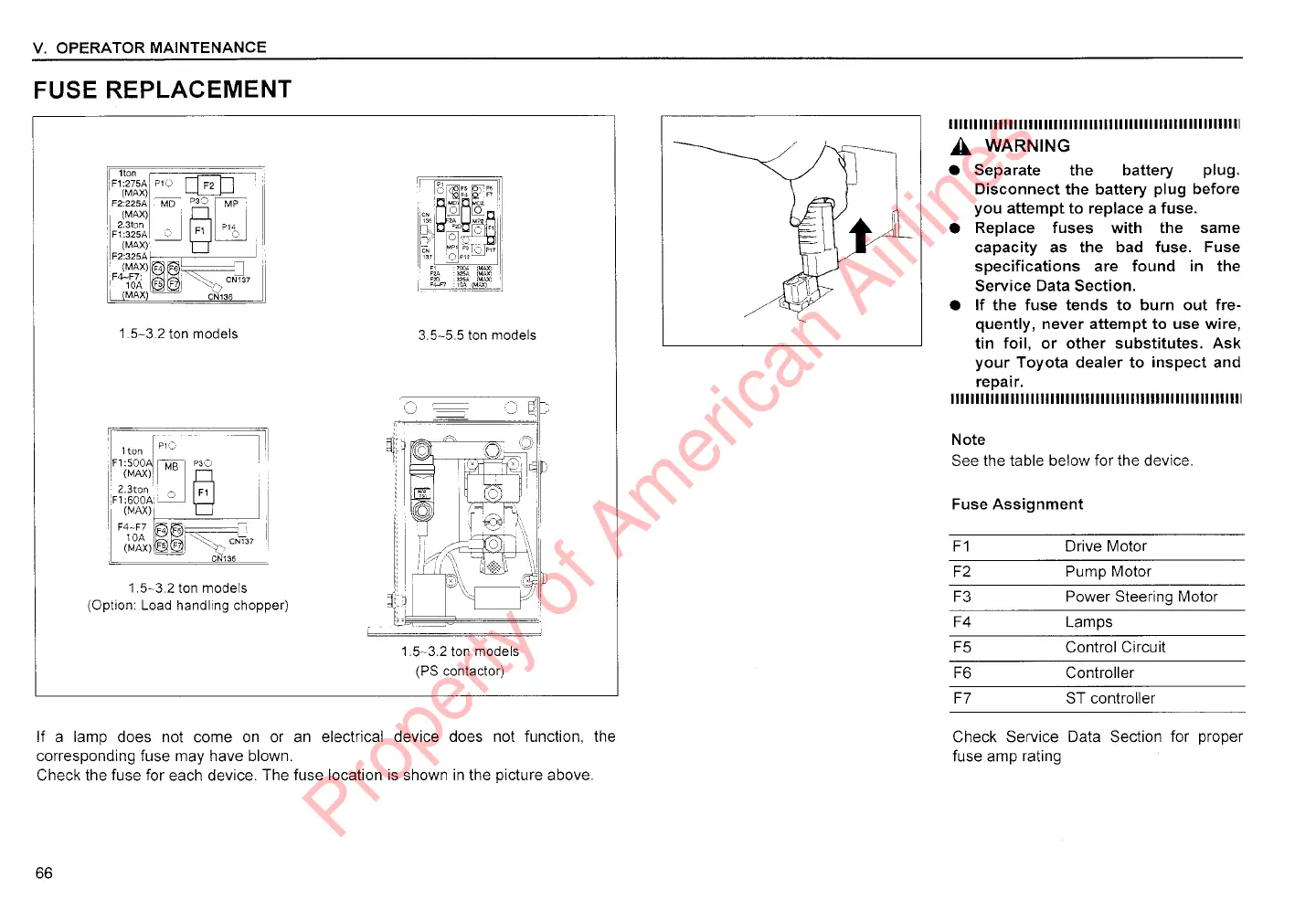

If a lamp does not come on or an electrical device does not function, the
corresponding fuse may have blown.
Check the fuse for each device. The fuse location is shown in the picture above.
111111111111111111111111III111111111111111111IIIlllllllllII
WARNING
Separate the battery plug.
Disconnect the battery plug before
you attempt to replace a fuse.
Replace fuses with the same
capacity as the bad fuse. Fuse
specifications are found in the
Service Data Section.
If the fuse tends to burn out fre-
quently, never attempt to use wire,
tin foil, or other substitutes. Ask
your Toyota dealer to inspect and
repair.
1111111111111111111llllllllllllllllllllllllllllllllllllllll
Note
See the table below for the device
Fuse Assignment
F1
Drive Motor
F2
Pump Motor
F3
Power Steering Motor
F4
Lamps
F5
Control Circuit
F6
Controller
F7
ST
controller
Check Service Data Section for proper
fuse amp rating
