ENGINE INSTALLATION

EG0FM–02

(See page EG–88)

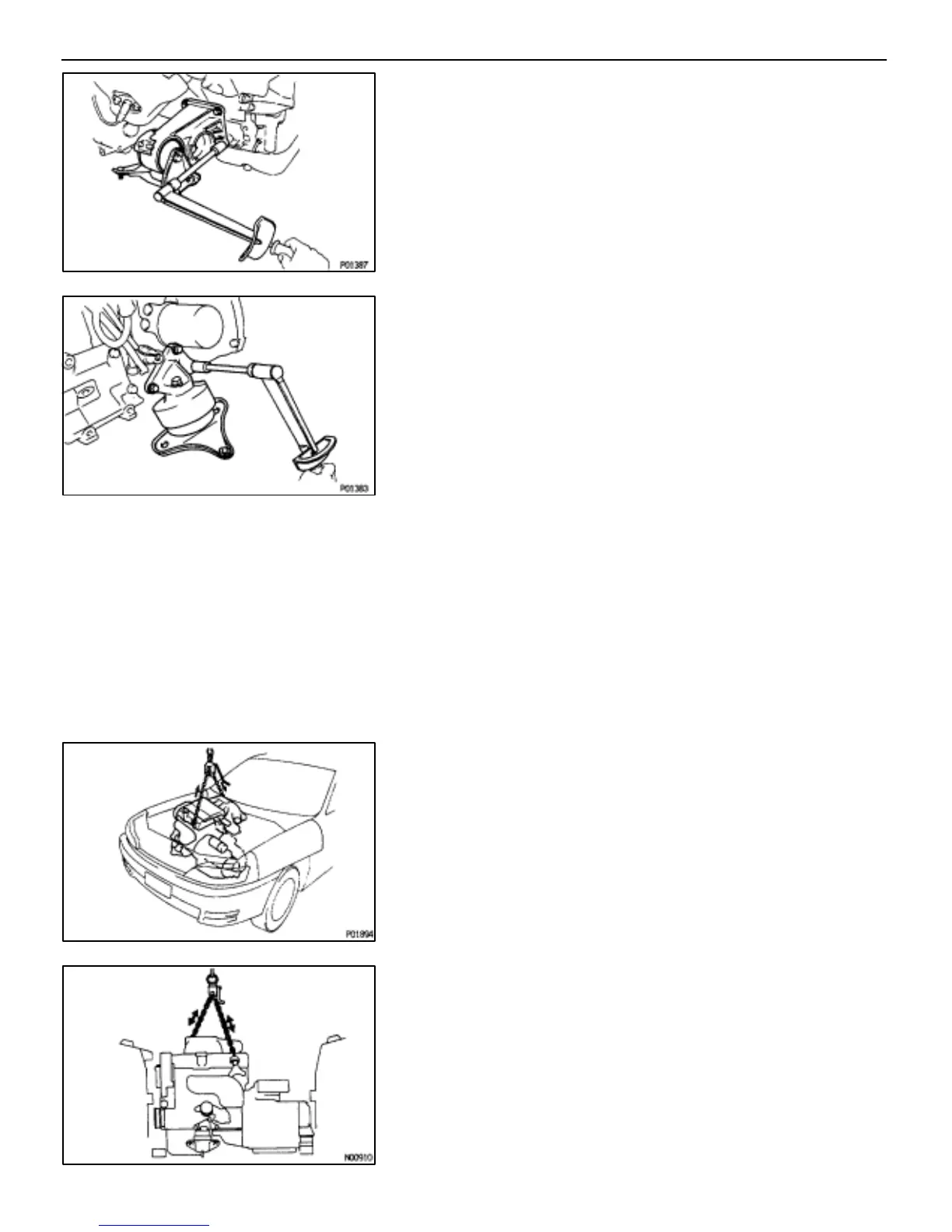

1. INSTALL RR ENGINE MOUNTING INSULATOR

Install the mounting insulator with the four bolts.

Torque: 77 N⋅m (790 kgf⋅cm, 57 ft⋅lbf)

2. INSTALL FR ENGINE MOUNTING INSULATOR

Install the mounting insulator with the three bolts.

Torque: 77 N⋅m (790 kgf⋅cm, 57 ft⋅lbf)

3. ASSEMBLE ENGINE AND TRANSAXLE

M/T (See MT section)

A/T (See AT section)

4. (A/T)

INSTALL STARTER

5. INSTALL ENGINE AND TRANSAXLE ASSEMBLY IN

VEHICLE

(a) Attach the engine chain hoist to the engine hangers.

(b) Lower the engine into the engine compartment.

Tilt the transaxle downward, lower the engine and clear the

LH mounting.

NOTICE: Be careful not to hit the PS gear housing or

park/neutral position switch (A/T).

the body bracket.
