COLD START INJECTOR
ON–VEHICLE INSPECTION
EG0GL–01

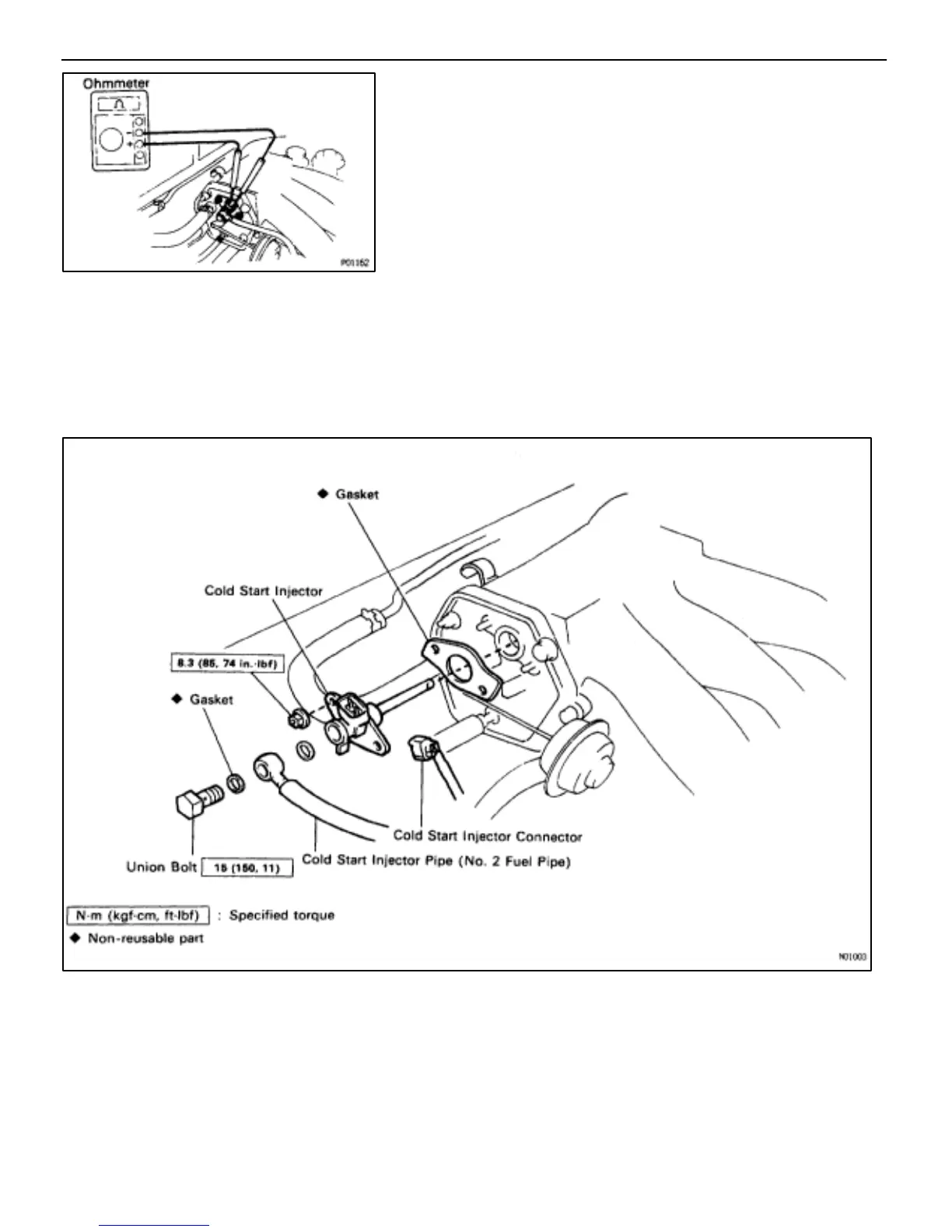

INSPECT RESISTANCE OF COLD START INJECTOR
(a) Disconnect the cold start injector connector.
(b) Using an ohmmeter, measure the resistance between the
terminals.
Resistance:
2–4 
If the resistance is not as specified, replace the cold start in-
jector.
(c) Reconnect the cold start injector connector.
COLD START INJECTOR REMOVAL
EG0GM–01
–ENGINE TROUBLESHOOTING SFI SYSTEM
EG–179

Toyota 3VZ–FE Specifications

General

Engine Type	V6
Bore	87.5 mm (3.44 in)
Compression Ratio	9.6:1
Torque Output @ RPM	4400 rpm
Valvetrain	DOHC, 4 valves per cylinder
Block Material	Cast Iron
Head Material	Aluminum
Displacement	3.0 L
Stroke	82.0 mm (3.23 in)
Fuel System	Multi-port fuel injection
Bore x Stroke	87.5 mm x 82 mm (3.44 in x 3.23 in)
