Magnetic Switch

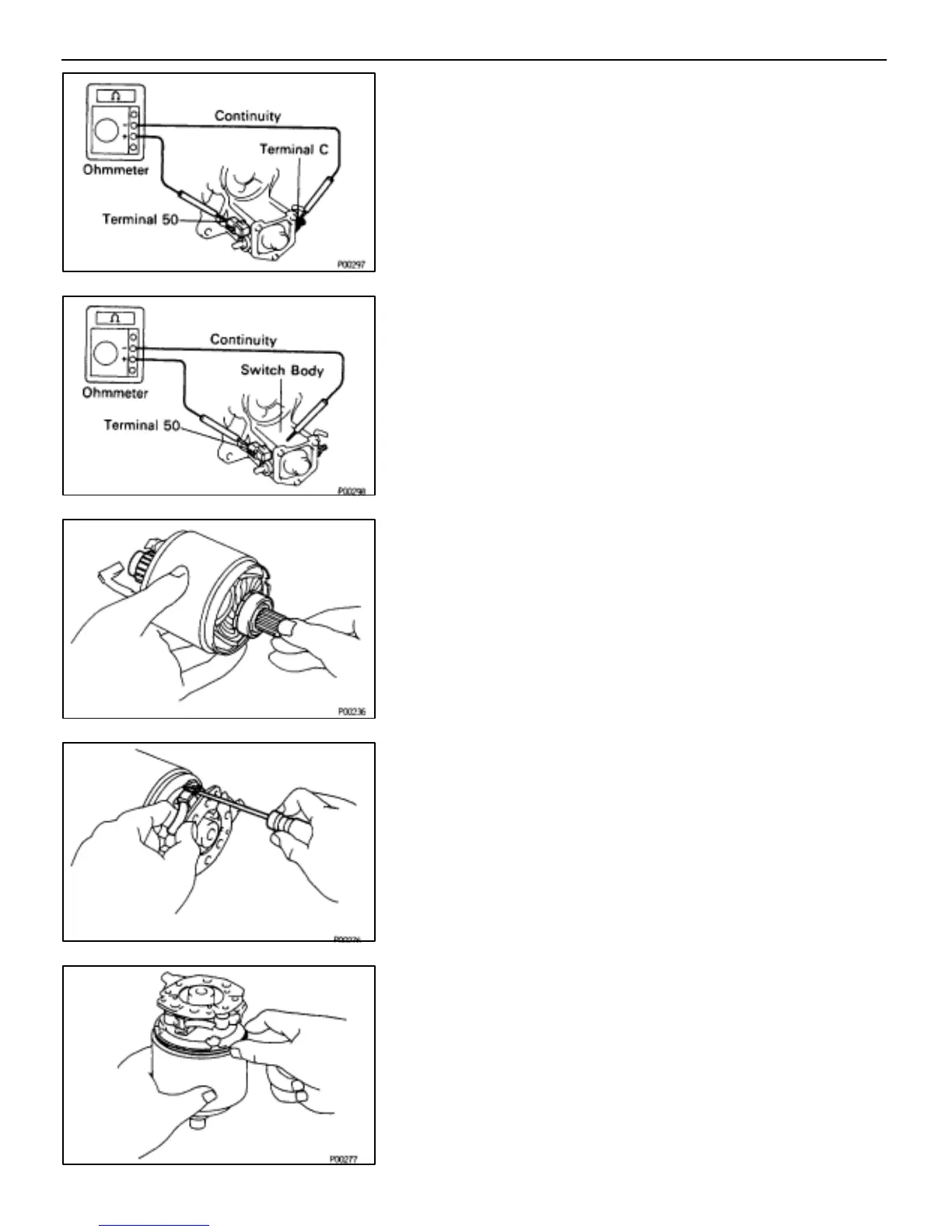

1. PERFORM PULL–IN COIL OPEN CIRCUIT TEST
Using an ohmmeter, check that there is continuity between
terminals 50 and C.
If there is no continuity, replace the magnetic switch.
2. PERFORM HOLD–IN COIL OPEN CIRCUIT TEST
Using an ohmmeter, check that there is continuity between
terminal 50 and the switch body.
If there is no continuity, replace the magnetic switch.
STARTER ASSEMBLY
ST01J–02
(See page ST–6)
HINT: Use high–temperature grease to lubricate the bearings
and gears when assembling the starter.
1. PLACE ARMATURE INTO FIELD FRAME
Apply grease to the armature bearings, and insert the arma-
ture into the field frame.
2. INSTALL BRUSH HOLDER
(a) Place the brush holder on the armature.
(b) Using a screwdriver, hold the brush spring back, and connect
the brush into the brush holder. Connect the four brushes.
NOTICE: Check that the positive (+) lead wires are not
grounded.
(c) Place a new O–ring in position on the field frame.
ST–14
–STARTING SYSTEM STARTER
