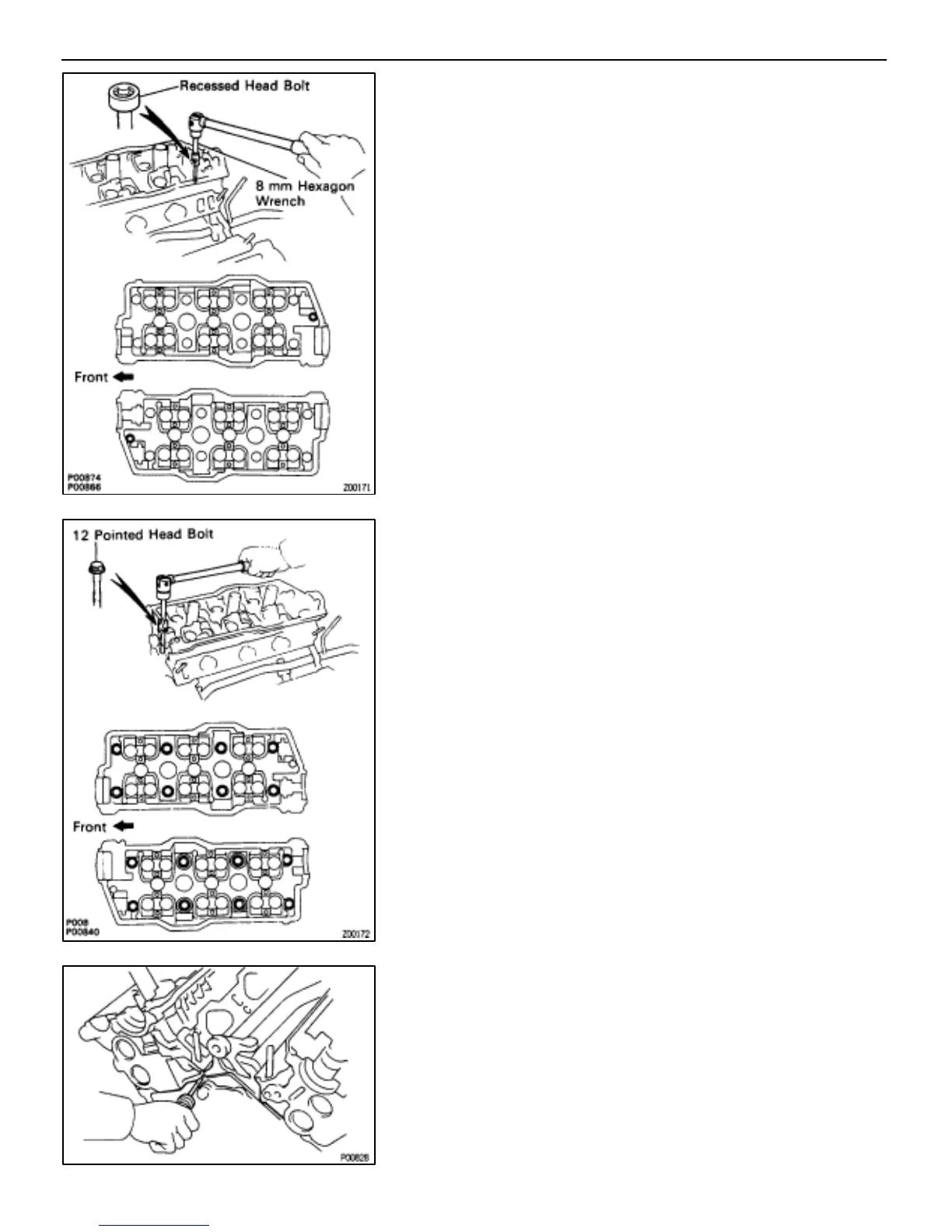

40. REMOVE CYLINDER HEADS

(a) Using a 8 mm hexagon wrench, remove the cylinder head

(recessed head) bolts.

(b) Uniformly loosen and remove the cylinder head (12 pointed

head) bolts in several passes, in the sequence shown.

NOTICE: Head warpage or cracking could result from re-

moving bolts in an incorrect order.

and place the two cylinder heads on wooden blocks on a

bench.

HINT: If the cylinder head is difficult to lift off, pry with a screw-

driver between the cylinder head and cylinder block.

NOTICE: Be careful not to damage the contact surfaces

of the cylinder head and cylinder block.

–ENGINE TROUBLESHOOTING ENGINE MECHANICAL

EG–59
