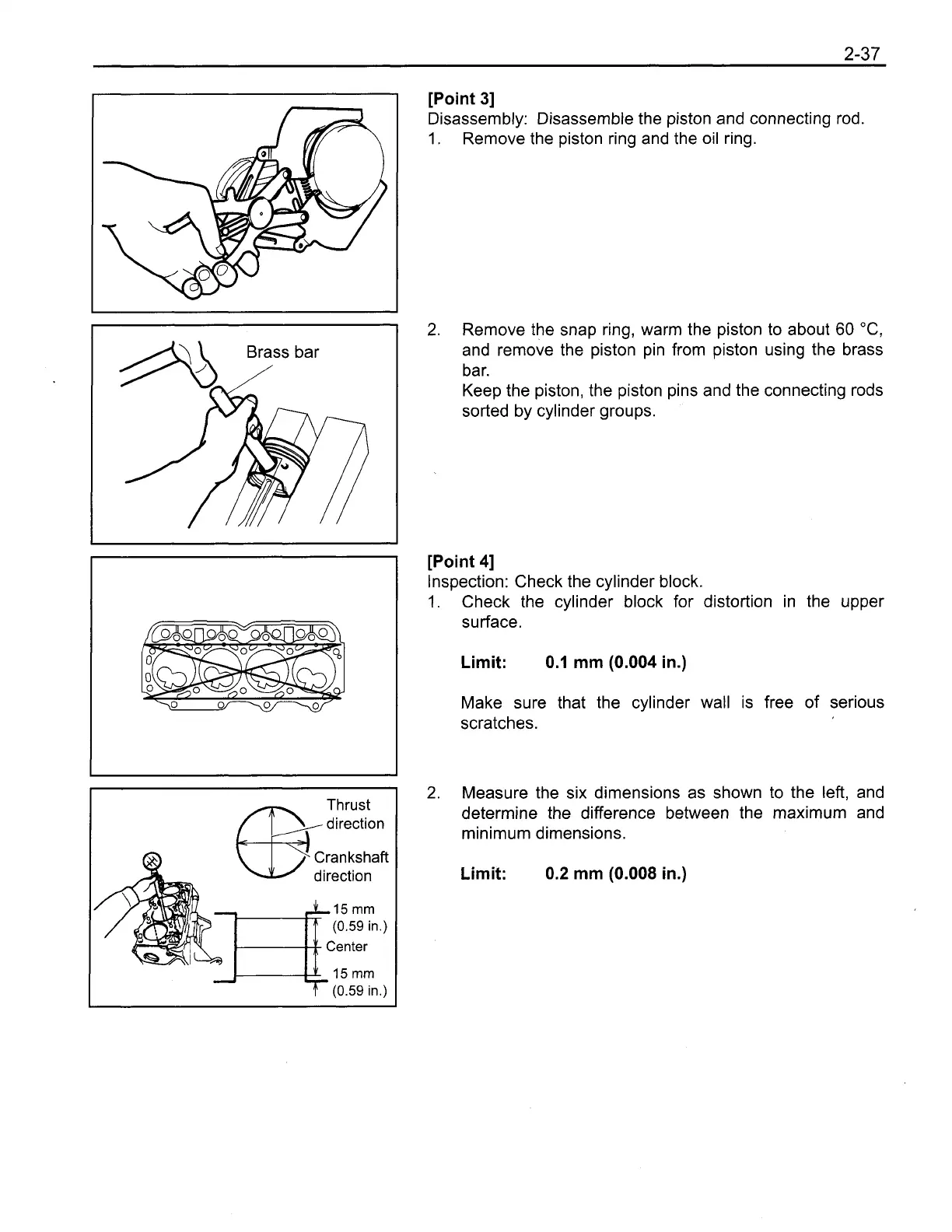

[Point 31
Disassembly: Disassemble the piston and connecting rod.
1. Remove the piston ring and the oil ring.
2.
Remove the snap ring, warm the piston to about 60 "C,
and remove the piston pin from piston using the brass
bar.
Keep the piston, the piston pins and the connecting rods
sorted by cylinder groups.
[Point 41
Inspection: Check the cylinder block.
1.
Check the cylinder block for distortion in the upper
surface.
Limit: 0.1 mm (0.004 in.)
Make sure that the cylinder wall is free of serious
scratches.
2.
Measure the six dimensions as shown to the left, and
determine the difference between the maximum and
minimum dimensions.
Limit: 0.2 mm (0.008 in.)
1DZ-II Repair
Section 1.2.2
