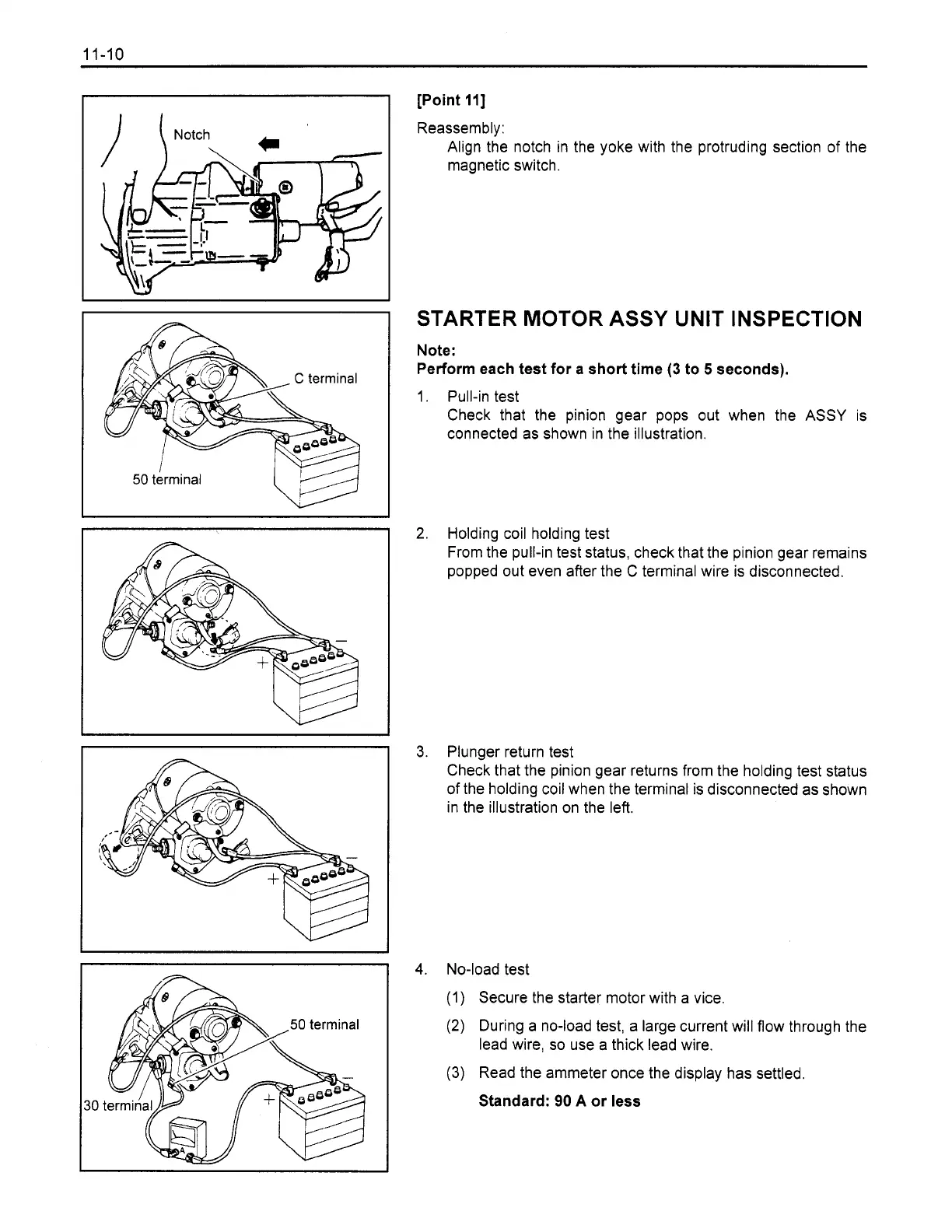

[Point 111
Reassembly:
Align the notch in the yoke with the protruding section of the
magnetic switch.
STARTER MOTOR ASSY UNIT INSPECTION
Note:
Perform each test for a short time
(3 to 5 seconds).
1. Pull-in test
Check that the pinion gear pops out when the ASSY is
connected as shown in the illustration.
2. Holding coil holding test
From the pull-in test status, check that the pinion gear remains
popped out even after the C terminal wire is disconnected.
3. Plunge
'r return test
check that the pinion gear returns from the holding test status
of the holding coil when the terminal is disconnected as shown
in the illustration on the left.
4. No-load test
(1) Secure the starter motor with a vice.
(2) During a no-load test, a large current will flow through the
lead wire, so use a thick lead wire.
(3) Read the ammeter once the display has settled.
Standard: 90 A or less
4Y-E Repair
Section 1.1.11

Toyota 8FGU30 Specifications

General

Model	8FGU30
Category	Forklifts
Fuel Type	Gasoline/LPG
Tire Type	Pneumatic
Load Capacity	6, 000 lbs
Lift Height	187 in
Overall Width	1220 mm
Turning Radius	2400 mm
Engine Power	58 hp (43 kW)
Mast Height	83 in
Overall Length	3200 mm
Overall Height	83 inches (with standard mast)
Wheelbase	1600 mm
Travel Speed (Full/No Load)	12.4 mph
