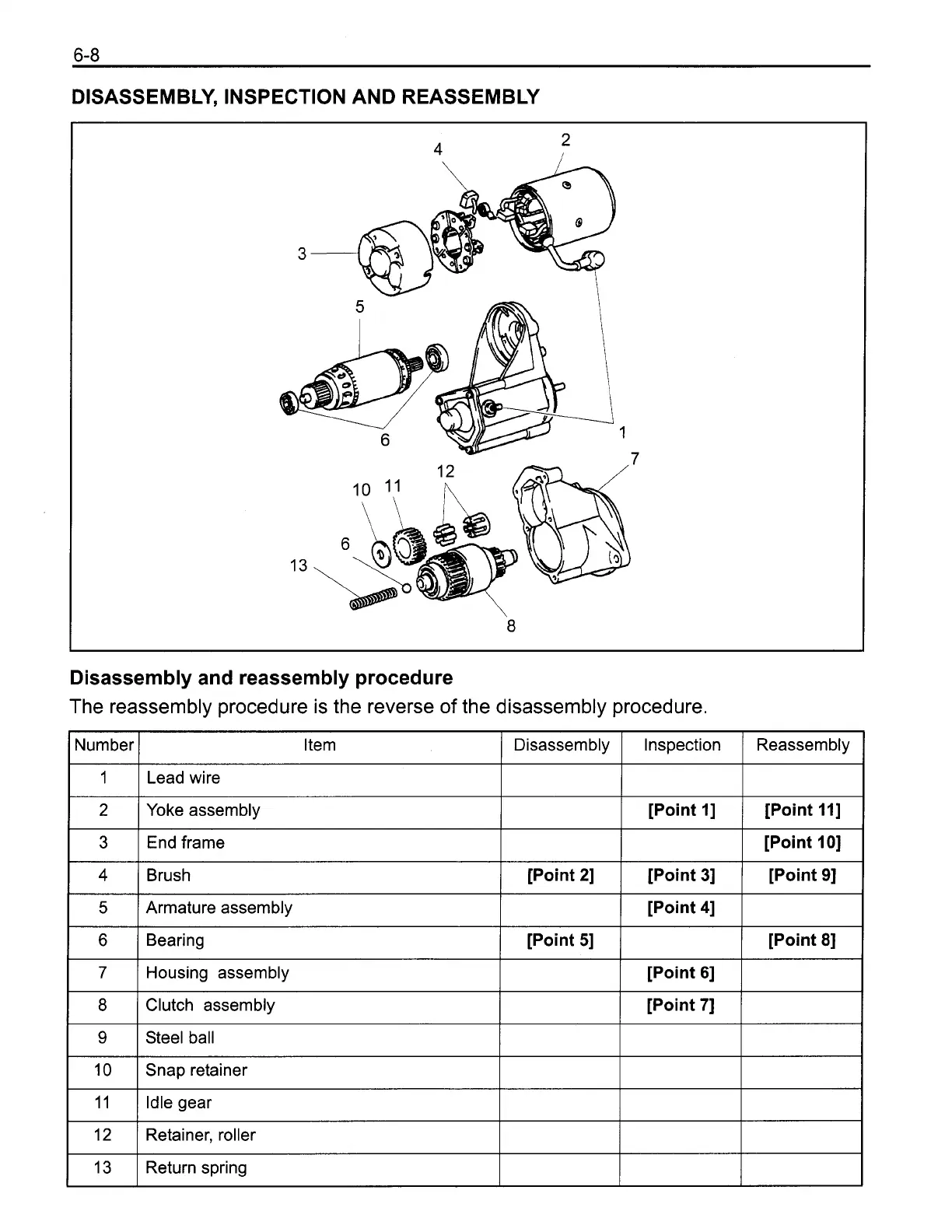

DISASSEMBLY, INSPECTION AND REASSEMBLY
Disassembly and reassembly procedure
The reassembly procedure is the reverse of the disassembly procedure.
Disassembly 1 Inspection I Reassembly
1 1 Lead wire
2 ( Yoke assembly 1 [Point I] / [Point 111
3 1 End frame
1 [Point 101
10
1 Snap retainer
4
5
6
7
8
9
Brush
Armature assembly
Bearing
Housing assembly
Clutch assembly
Steel ball
11
12
13
Idle gear
Retainer, roller
Return spring
[Point 21
[Point 51
[Point 31
[Point 41
[Point 61
[Point 71
[Point 91
[Point 81
1DZ-II Repair
Section 1.2.6

Toyota 8FGU30 Specifications

General

Model	8FGU30
Category	Forklifts
Fuel Type	Gasoline/LPG
Tire Type	Pneumatic
Load Capacity	6, 000 lbs
Lift Height	187 in
Overall Width	1220 mm
Turning Radius	2400 mm
Engine Power	58 hp (43 kW)
Mast Height	83 in
Overall Length	3200 mm
Overall Height	83 inches (with standard mast)
Wheelbase	1600 mm
Travel Speed (Full/No Load)	12.4 mph
