Toyota 8FGU30 User Manual

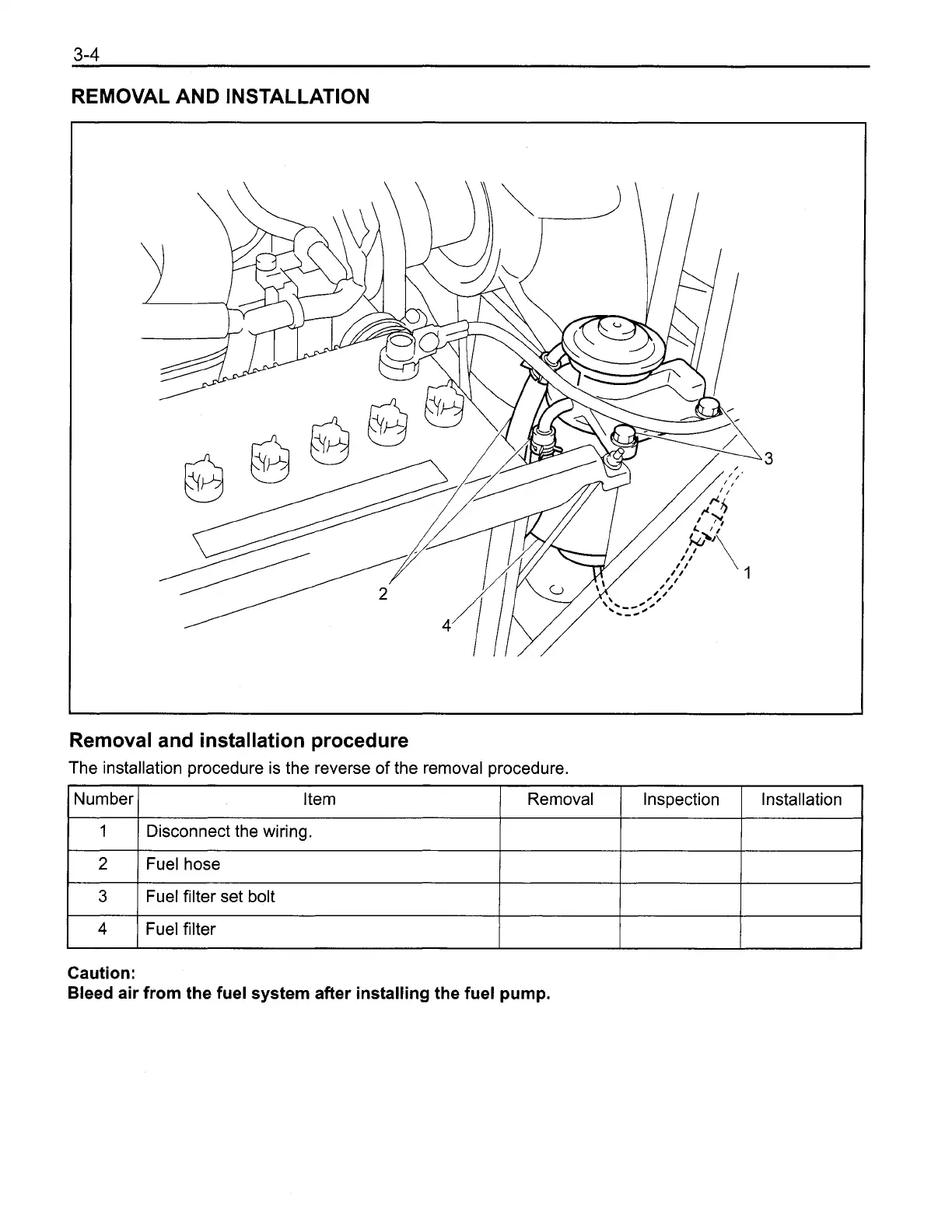

REMOVAL AND INSTALLATION
Removal and installation procedure
Caution:
Bleed air from the fuel system after installing the fuel pump.
The installation procedure is the reverse of the removal procedure.
Number
1
2
3
4
Item
Disconnect the wiring.
Fuel hose
Fuel filter set bolt
Fuel filter
Removal
Inspection Installation
1DZ-II Repair
Section 1.2.3

Toyota 8FGU30 Specifications

General

Model	8FGU30
Category	Forklifts
Fuel Type	Gasoline/LPG
Tire Type	Pneumatic
Load Capacity	6, 000 lbs
Lift Height	187 in
Overall Width	1220 mm
Turning Radius	2400 mm
Engine Power	58 hp (43 kW)
Mast Height	83 in
Overall Length	3200 mm
Overall Height	83 inches (with standard mast)
Wheelbase	1600 mm
Travel Speed (Full/No Load)	12.4 mph
