Toyota Corolla E12-A - Changer Wire Routing and Connection

Corolla (E12-A + E12-D) TOYOTA GENUINE AUDIO
Corolla (RHD) - 22
05-04
10. Route the changer wire along the
reinforcement pipe and attach using
tape (2x) as shown.
1
2

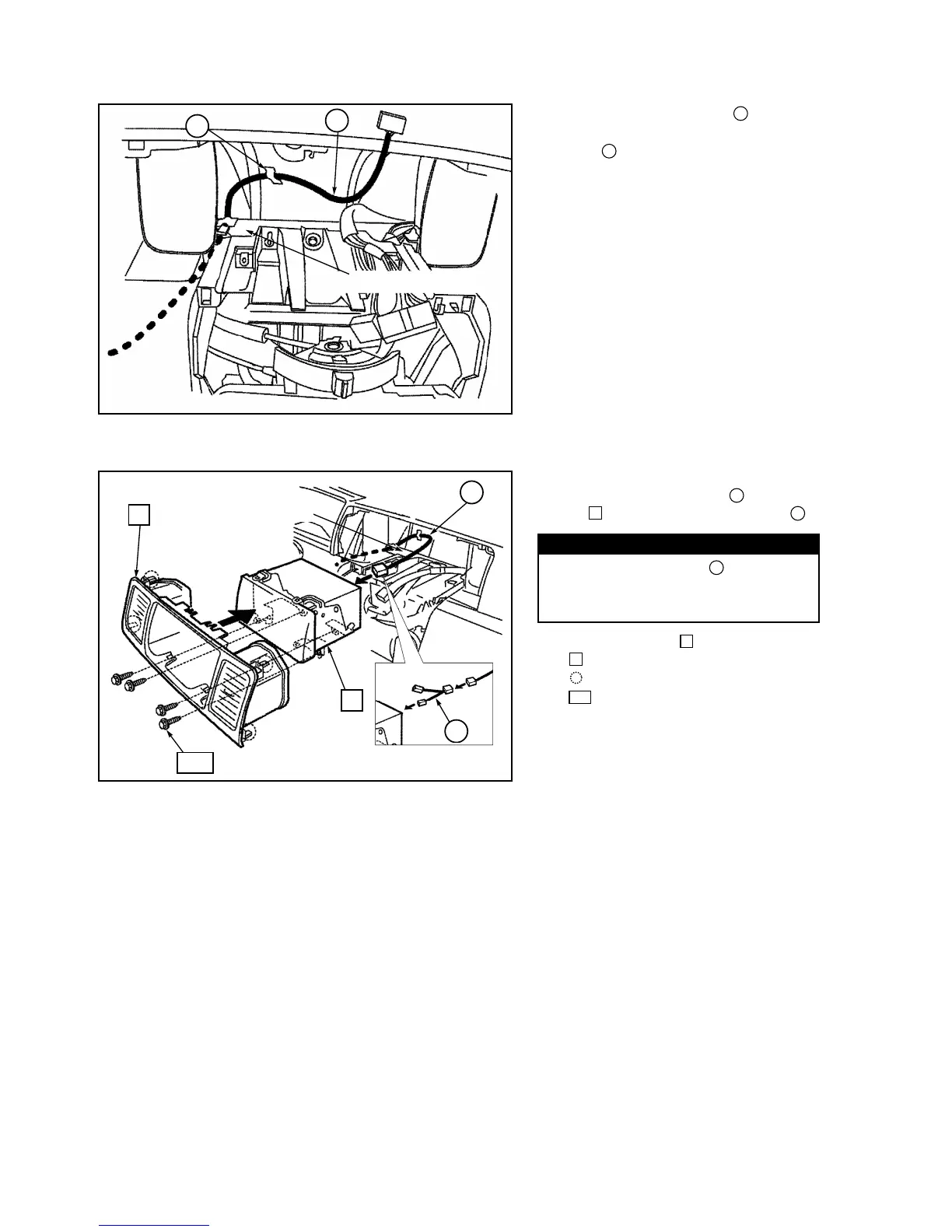

Fig. 39
1
2
Reinforcement pipe
11.
a) Connect the changer wire to the com-
bo using the conversion harness .
b) Refit the combo and centre cluster
.
: Clip (4x)
: Screw (4x)
101
5
6
34
6
2
Fig. 40
A conversion harness (P/N 08695-
00370) is needed for connection to the
audio unit.
34
NOTE
5
2
101
Reinforcement pipe
6
34
