Toyota Corolla E12-A - Changer Unit Mounting Procedure

Corolla (E12-A + E12-D) TOYOTA GENUINE AUDIO
Corolla (RHD) - 24
05-04

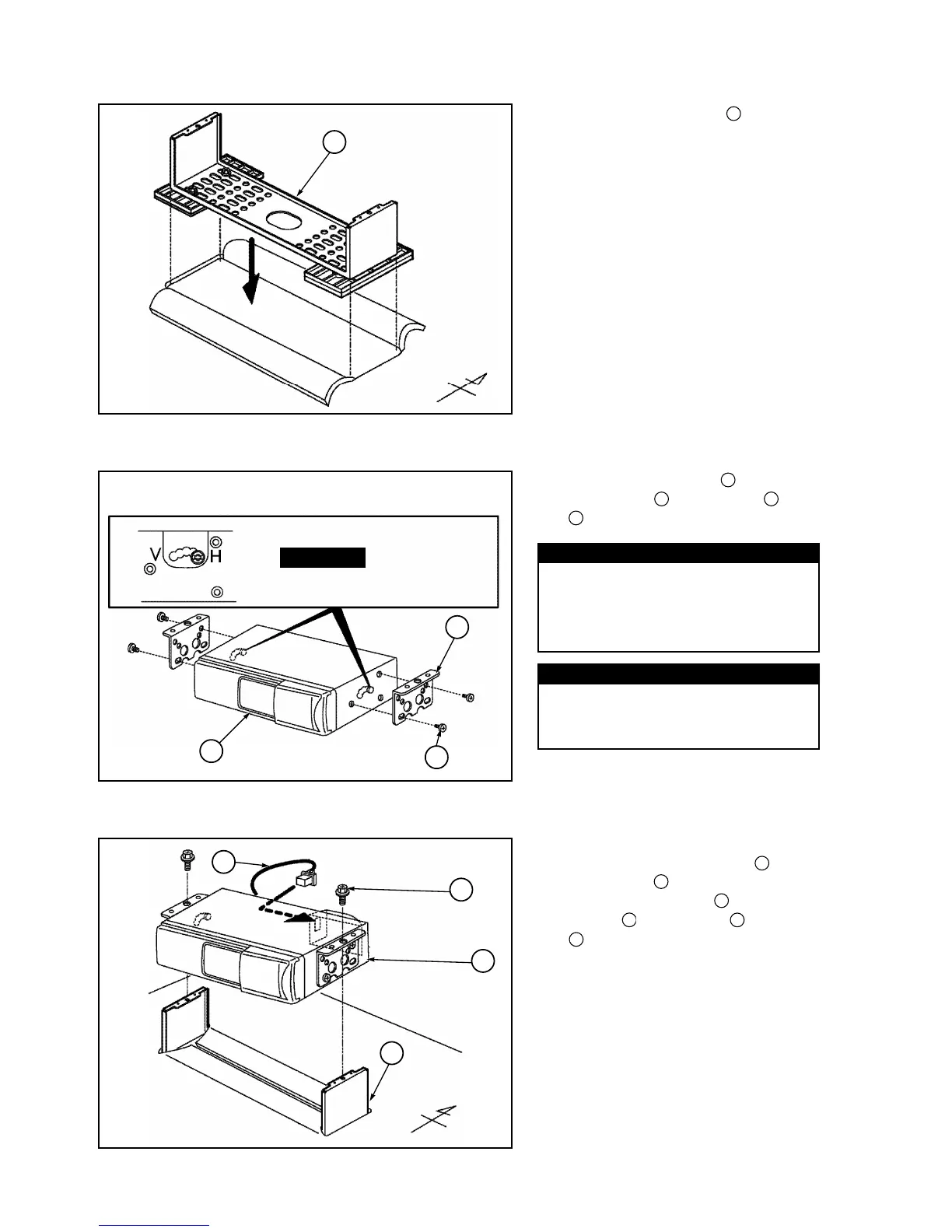

14. Attach the base bracket on the floor
under the driver’s seat.
13
Fig. 43
13
15. Fit the side brackets (2x) to the
changer-unit using screws .
: Flat head screw (M5x8) (4x)
20
20
6
19
Fig. 44
CAUTION
Loosen the screws before moving
them. Screw up after the position is
changed.
CAUTION
Before installing the changer unit,
change the two ‘V-H’ screws into the
‘H’ (horizontal) position when it is
installed horizontally.
NOTE
20
19
6
16.
a) Connect the changer wire to the
changer unit .
b) Fit the changer unit to the base
bracket using screws .
: Screw (M5x10)(2x)
15
15
13
6
6
2
Fig. 45
6
15
13
2
