Toyota Corolla E12-A - Page 8

Corolla (E12-A + E12-D) TOYOTA GENUINE AUDIO
Corolla (RHD) - 8
05-04
4.

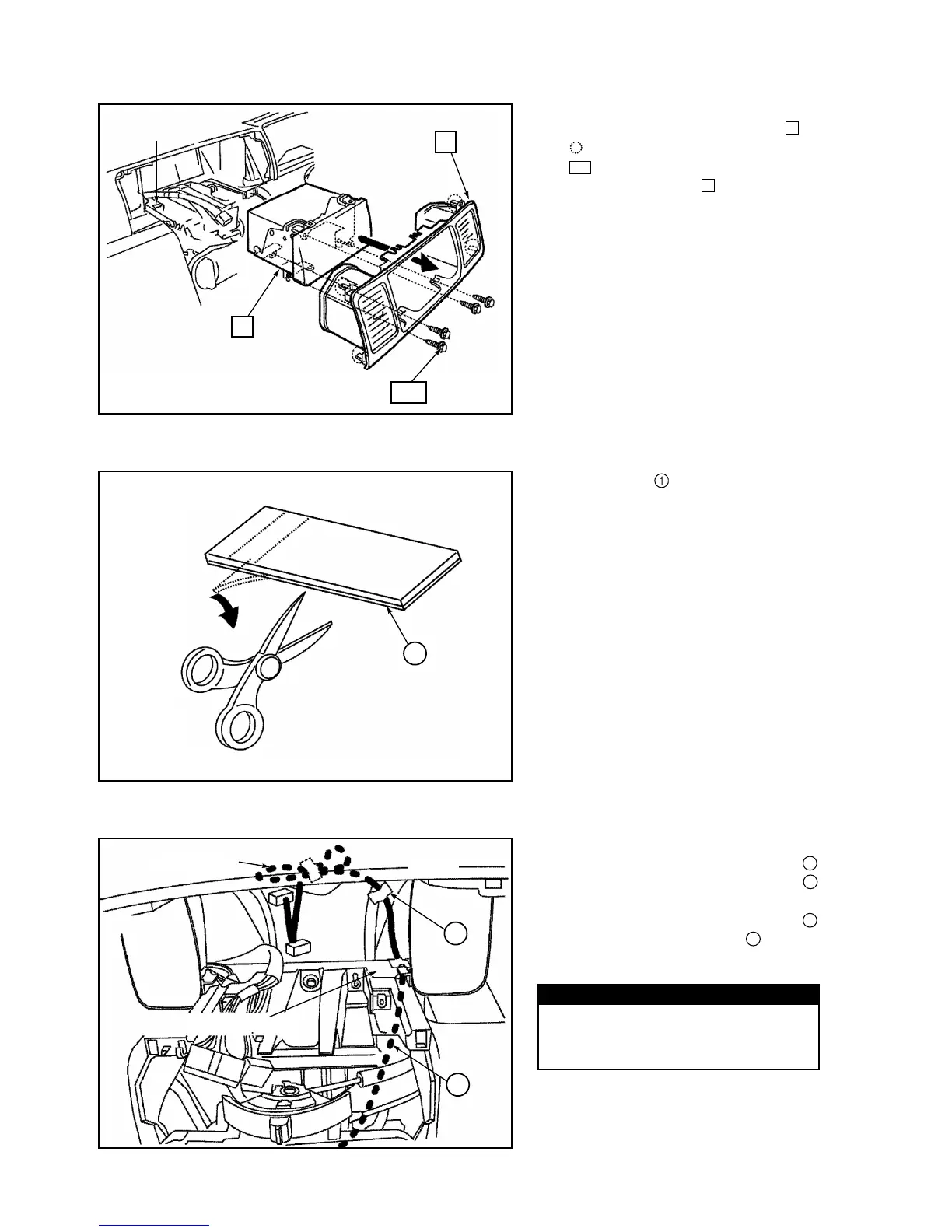

a) Remove the centre cluster panel .
: Clip (4x)
: Screw (4x)
b) Remove the combo .
6
101
5
Fig. 4
6
5
101
5. Cut the tape (10 pieces).
Fig. 5
6.
a) Route and attach the changer wire
to the reinforcement pipe using tape
(2x) as shown.
b) Bundle up the excess changer wire
and attach it using tape (1x) as
shown.
1
2
1
2
Fig. 6
When installing the combo check that
the changer wire does not overlap the
the rear of the combo.
CAUTION
Excess wire
Duct
1
2
1
Reinforcement pipe
