Multifunctional Unit 5 in 1

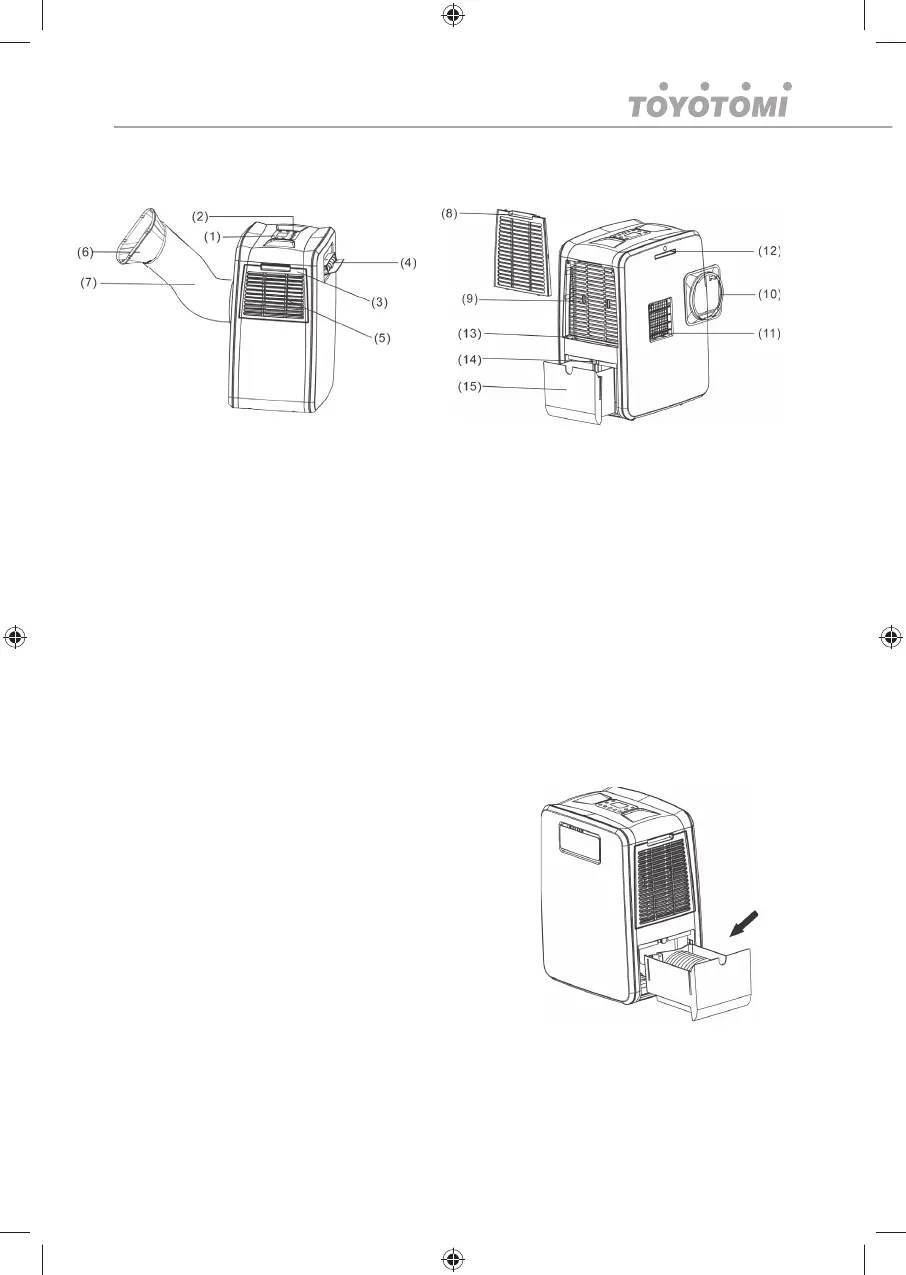

2. PARTS LIST
1. Control panel 9. Hot air inlet (mount clip (10) storage)
2. Remote control sensor 10. Hot air outlet hose mount adapter
3. Washable mesh fi lter 11. Hot air outlet with directional louvres
4. Cold air outlet with swinging louvres 12. Remote control slide in slot
5. Cold air inlet 13. Water fi lling port (humidifi er function)
6. Fishtail connector 14. Water drain port / Rubber water stopper
7. Hot air exhaust hose 15. Dehumidifi er water tank
8. Washable mesh fi lter
INSTALLATION
Warning Before using this unit, please keep it upright for at least 3-4 hours.
This unit can easily be moved from one room to another.
While moving the unit please note that it must always be kept upright and then placed on an
even surface.
Unpacking
Open the box and remove all the packing out of way.
Grip the unit by the carry handles located on either sides o f
the unit and carefully lift until it slides out of the foam base.
Open the water tank (15) and remove the exhaust hose ( 7 )
as in picture.
Remove the side mount clip (10) from hot air inlet (9)
Install the exhaust hose (7) if operating the unit in vented
air conditioning mode or spot drying mode
PACKAGE CONTENTS
1 / Air Treatment unit 2 / Remote control
3 / Side mount clip (10) 4 / Hose and window kit
