TP-Link AC600 User Guide

13
Chapter 4 Mac OS X
Note:

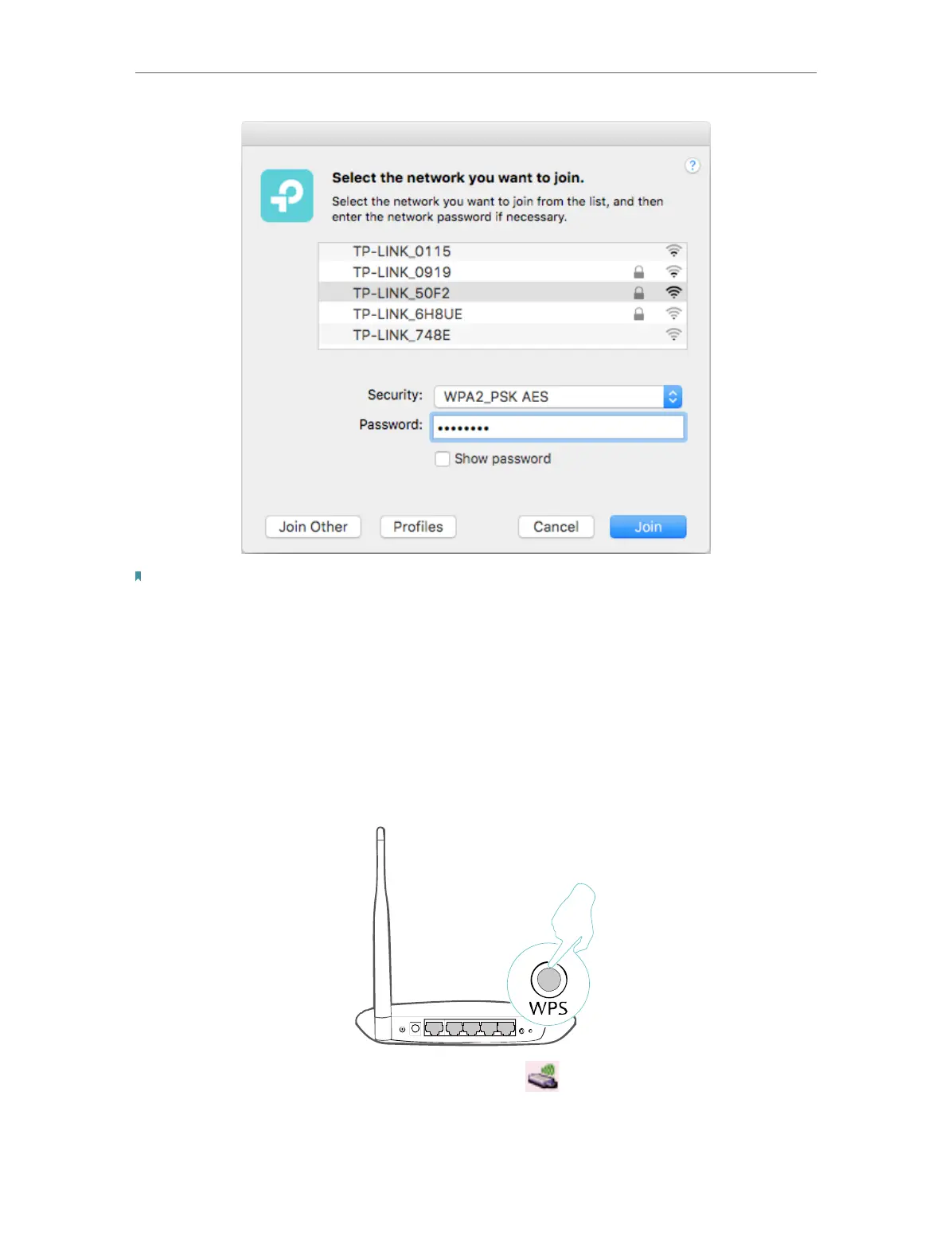

If your Wi-Fi network is not displayed in the list, you can try to join it by WPS or by clicking Join Other on the above
screen, and then follow the on-screen instructions to join the network.
4. 2. 2. WPS (Wi-Fi Protected Setup)
WPS can be activated via PBC (Push Button Configuration) and PIN code on the TP-Link
Utility. Please refer to PBC or PIN below.
• PBC
1. Press the WPS/QSS button on your router or AP.
2. Within 2 minutes, click the TP-Link Utility icon on the menu bar, and then click
WPS at the bottom of the network list.

TP-Link AC600 Specifications

General

Interface	USB 2.0
Antenna	Internal
Model	Archer T2U
Wireless Standard	IEEE 802.11ac
Frequency	2.4GHz, 5GHz
Security	WEP, WPA, WPA2
Data Rate	5 GHz: Up to 433 Mbps, 2.4 GHz: Up to 150 Mbps
Operating Systems Supported	Windows 11/10/8.1/8/7/XP, Mac OS X 10.9-10.13
