To add/modify a Bandwidth Control rule, follow the steps below.
1. Click Add New… shown in Figure 5-85, you will see a new screen shown in Figure 5-86.
2. Enter the information like the screen shown below.

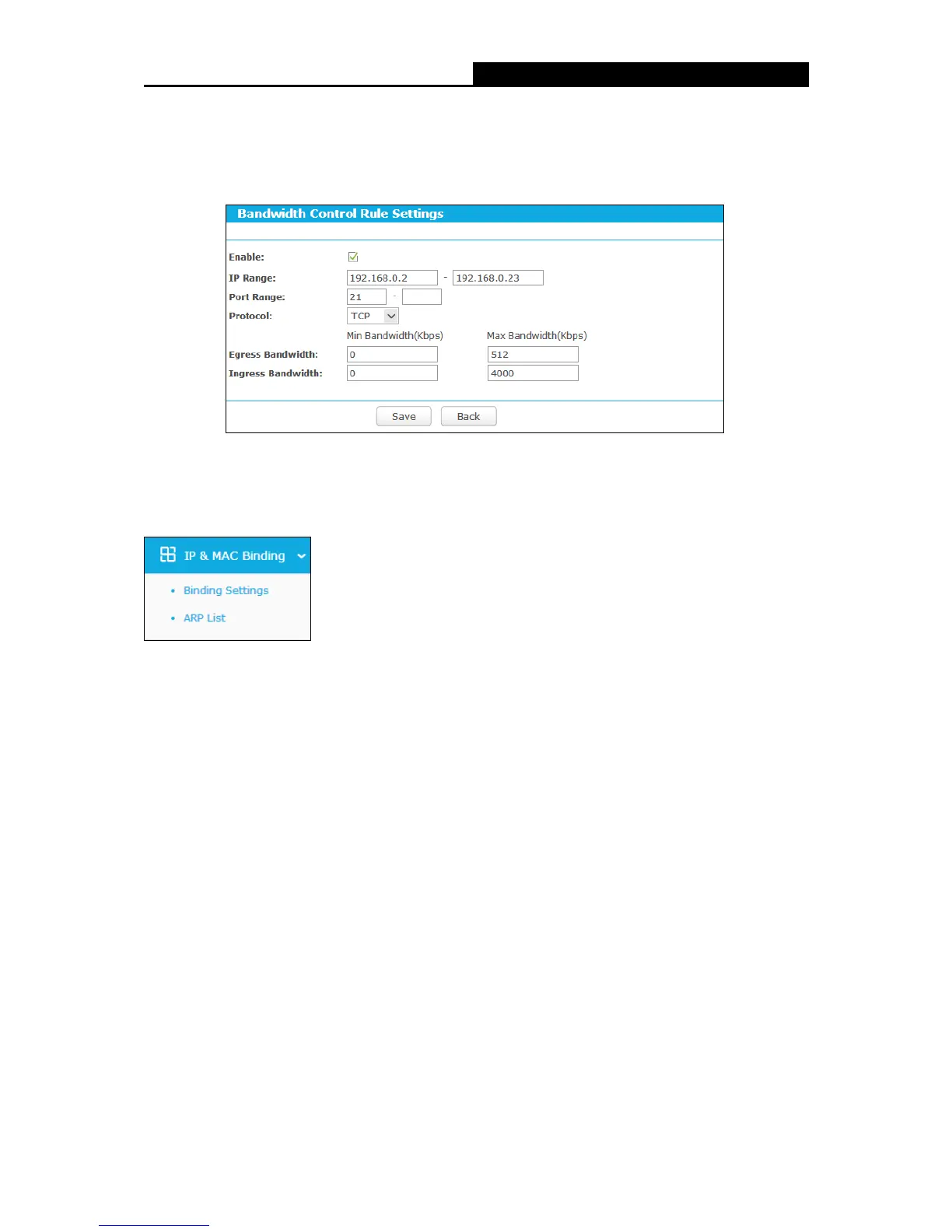

Figure 5-86 Bandwidth Control Rule Settings
3. Click the Save button.
5.16 IP & MAC Binding
Figure 5-87 the IP & MAC Binding menu
There are two submenus under the IP &MAC Binding menu, shown in Figure 5-87: Binding
Settings and ARP List. Click any of them, and you will be able to scan or configure the
corresponding function. The detailed explanations for each submenu are provided below.
5.16.1 Binding Settings
Choose menu “Advanced
Binding Settings”, you can configure the IP &
MAC binding rules in the screen as shown in
Figure 5-88.
- 96 -
