AC1200 Wireless Dual Band Gigabit Router
If the numbers of connected wireless stations go beyond one page, click the Next button to go to
the next page and click the Previous button to return the previous page.
Note:
This page will be refreshed automatically every 5 seconds.
5.5 Wireless 5GHz

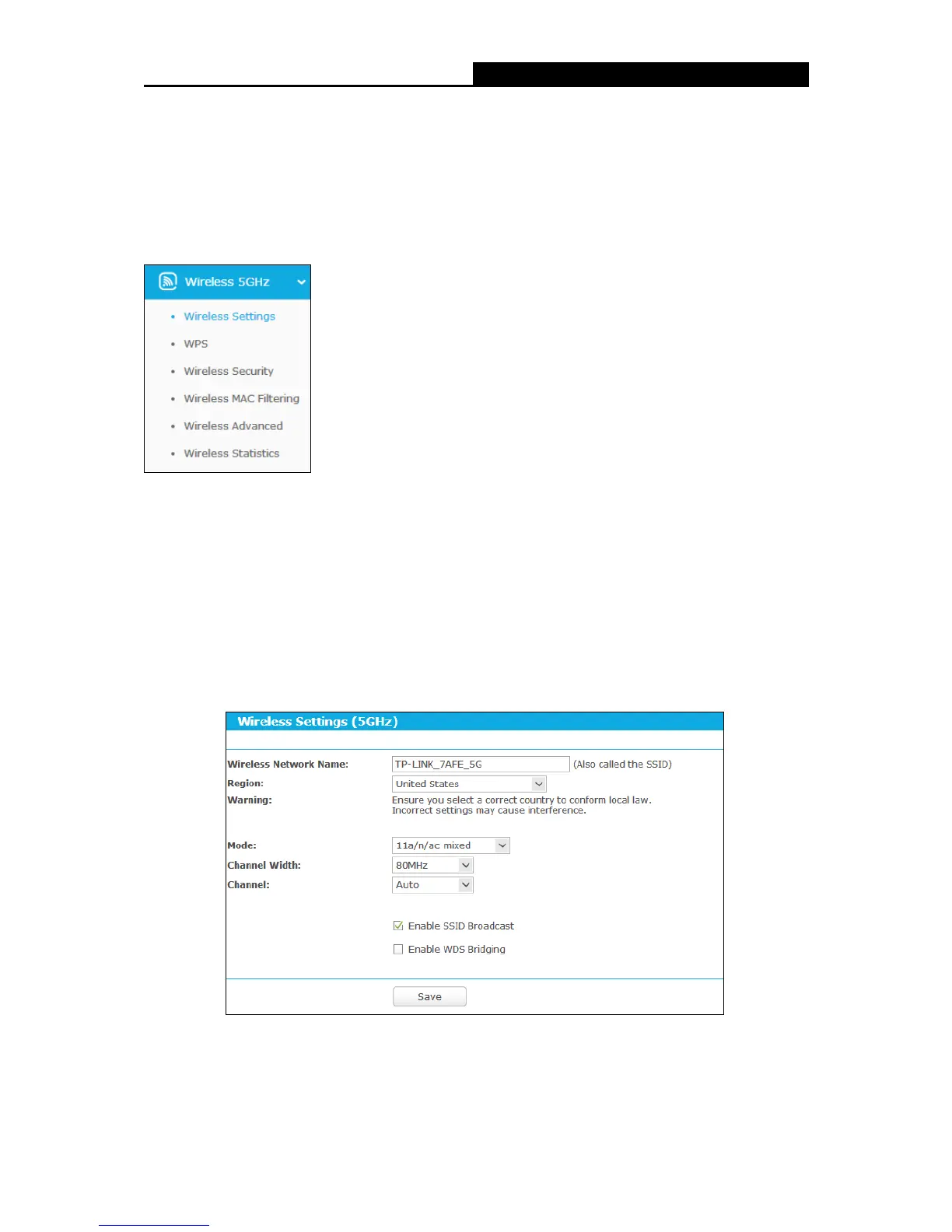

Figure 5-25 Wireless menu
There are six submenus under the Wireless menu (shown in Figure 5-25): Wireless Settings,
WPS, Wireless Security, Wireless MAC Filtering, Wireless Advanced and Wireless
Statistics. Click any of them, and you will be able to configure the corresponding functions.
5.5.1 Wireless Settings
Choose menu “Advanced
Wireless Settings”, you can configure the basic
settings for the wireless network of 5GHz on this page.
Figure 5-26 Wireless Settings (5GHz)
Wireless Network Name - The wireless network name (SSID) that the router uses. You can
create a new one with up to 32 characters. The default SSID is set to be
- 48 -
