81
Chapter 12
Specify Your Network Settings
2. Configuration on site A (local network).
1 ) Visit http://tplinkmodem.net, and log in with the password
you set for the modem router.

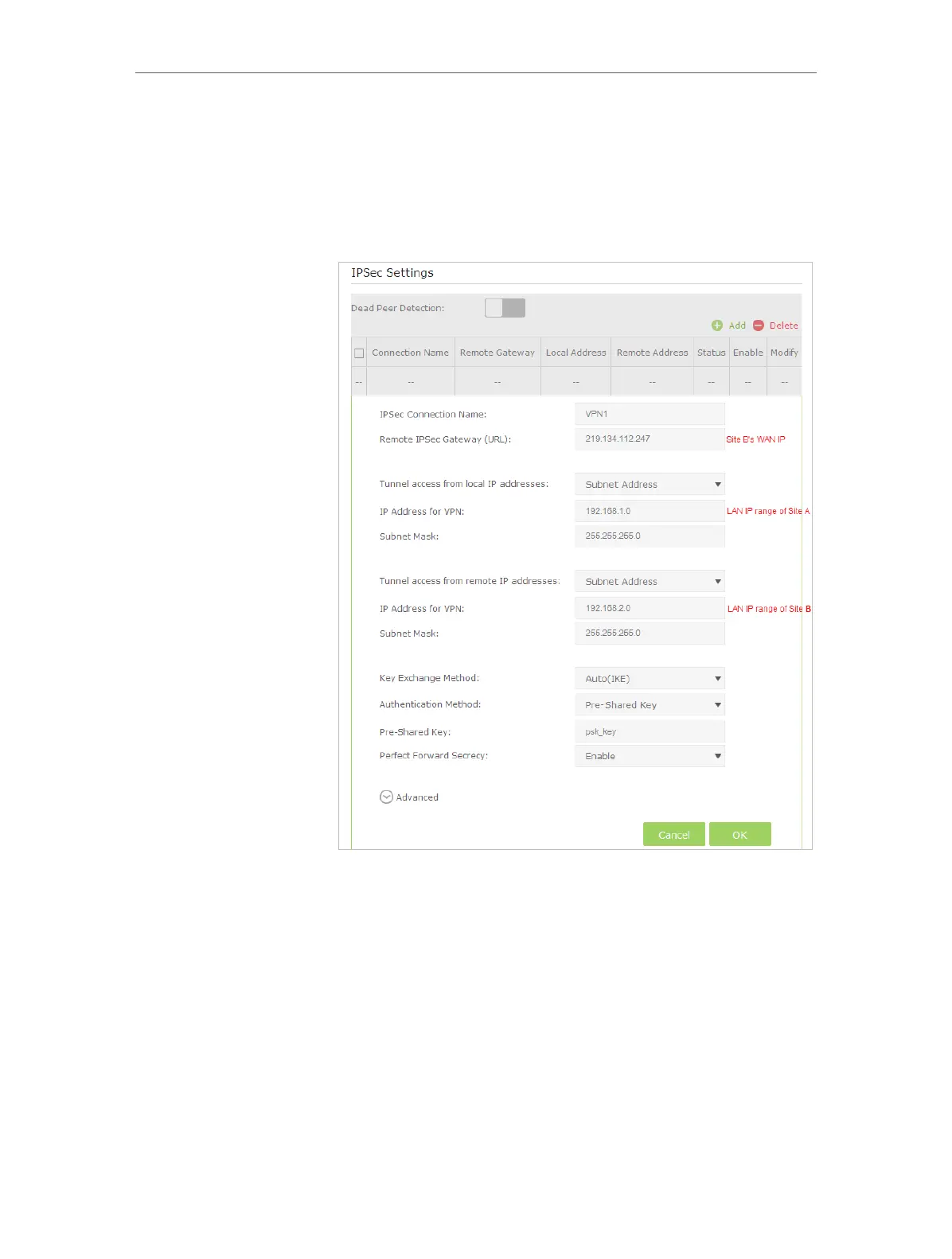

2 ) Go to Advanced > Network > IPSec VPN to open the
configuration page. Click Add to set up a VPN tunnel.
3 ) In the IPSec Connection Name column, specify a name.
4 ) In the Remote IPSec Gateway (URL) column, Enter Site B’s
WAN IP address.
5 ) Configure Site A’s LAN.
In the Tunnel access from local IP addresses column, here we
take Subnet Address as an example. Then input the LAN IP
range of Site A in the IP Address for VPN column, and input
Subnet Mask of Site A.
6 ) Configure Site B’s LAN.
In the Tunnel access from local IP addresses column, here we
take Subnet Address as an example. Then input the LAN IP
