Chapter 2
Connect the Hardware
2. 1. Position Your Router
• The router should not be located in a place where it will be exposed to moisture or
excessive heat.
• Place the router in a location where it can be connected to multiple devices as well as
to a power source.
• Make sure the cables and power cord are safely placed out of the way so they do not
create a tripping hazard.
• The router can be placed on a shelf or desktop.
• Keep the router away from devices with strong electromagnetic interference, such as
Bluetooth devices, cordless phones and microwaves.
Generally, the router is placed on a horizontal surface, such as on a shelf or desktop.

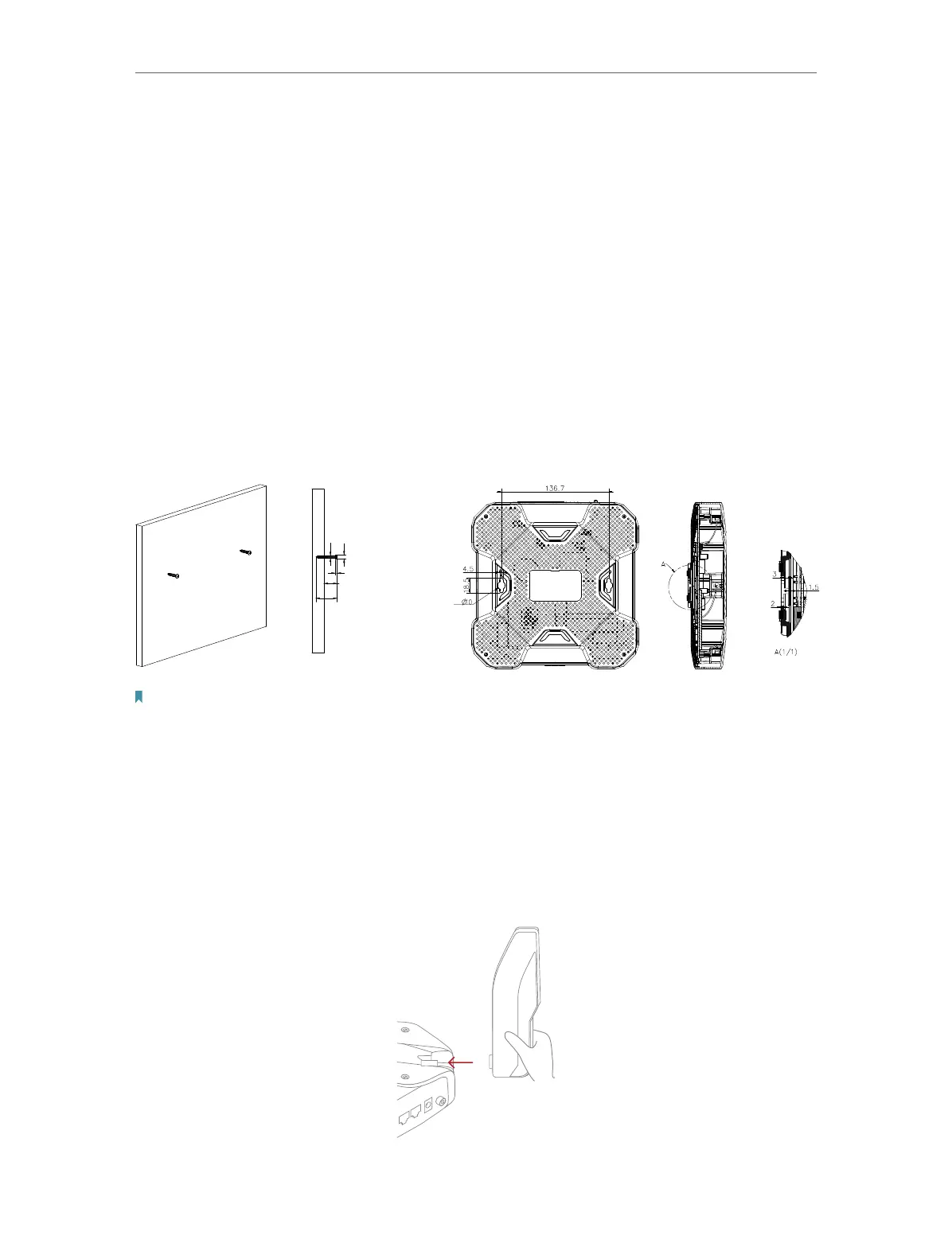

The device also can be mounted on the wall as shown in the following figure.
φD
H
φd
NOTE:
4.5mm＜D＜10mm
d＜4.5mm
H＜3mm
3mm＜N
20mm≤M
N
M
Note:
The diameter of the screw, 4.5 mm<D<10 mm. The distance of two screws is 136.7 mm. The screw that project from
the wall need around 3 mm based, and the length of the screw need to be at least 20 mm to withstand the weight of the
product.
2. 2. Connect Your Router
Before you start, please turn off your modem if any, and remove the backup battery if it
has one. And hold the antennas from the base as shown below and install them
