Get to Know About Your Router
LED Explanation
Name Status Indication
Pulsing
orange
The system is starting up.
Solid white The router is working normally.
Solid red No internet connection.
Pulsing
Red
The Wi-Fi is off and there is no internet connection.
Solid
orange
The router is connected to the internet, but the Wi-Fi is off.
Pulsing
white
The firmware is being upgraded, WPS connection is being
established or the router is being reset. Do not disconnect or
power off your router.
Off Power is off or the LED is turned off.
1. 2. 2. The Side and Back Panel

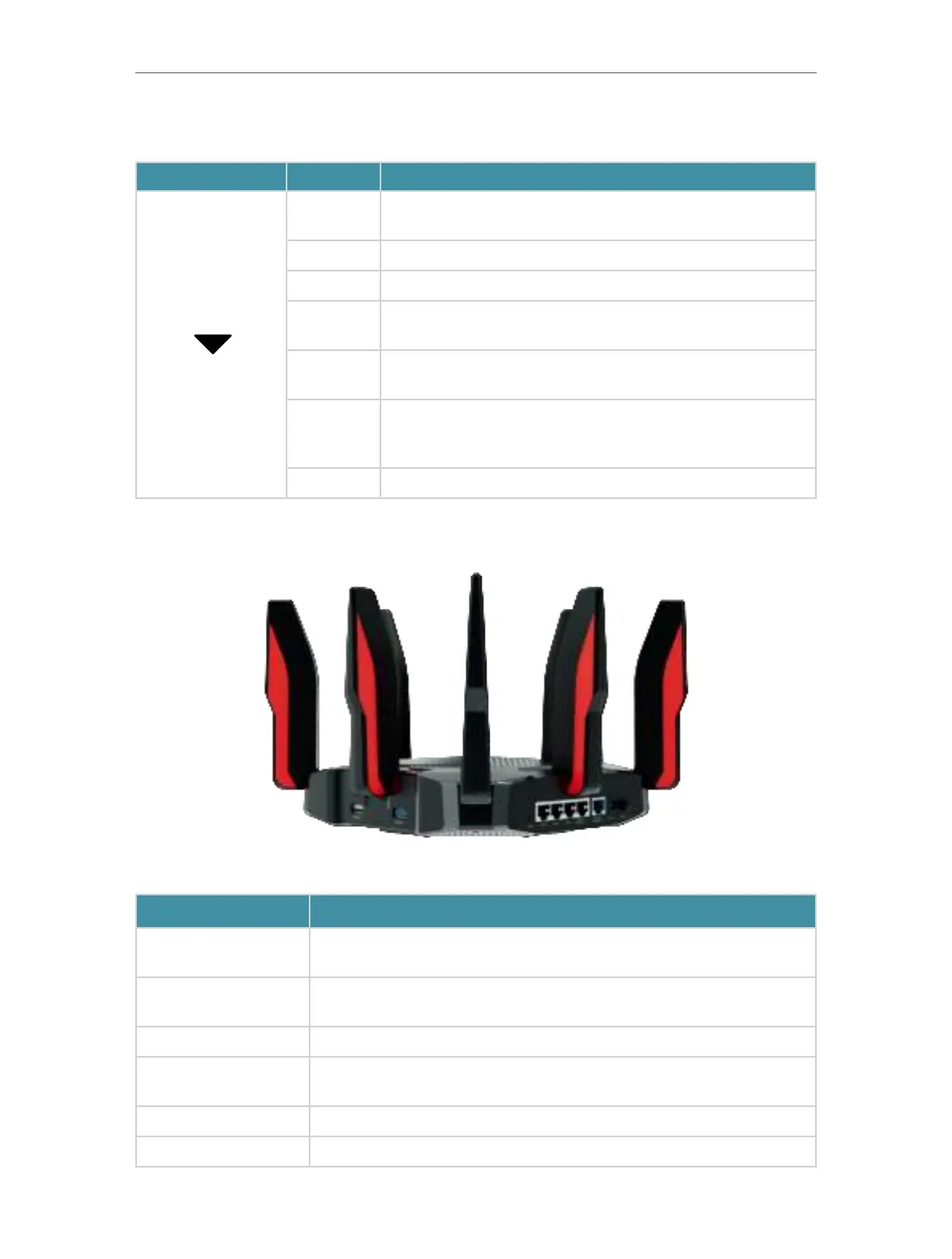

The following parts (view from left to right) are located on the rear panel.
Item Description
USB 2.0 + USB 3.0
Ports
For connecting your USB storage devices to the router.
Reset Button
Use a pin to press and hold this button until the LED blinks to reset the router
to its factory default settings.
LAN 1-3 Ports For connecting your PC or other wired devices to the router.
1 Gbps WAN/LAN + 2.5
Gbps WAN/LAN Ports
For connecting to a DSL/Cable modem, or an Ethernet jack.
Power Port For connecting the router to a power socket via the provided power adapter.
Power On/Off Button Press this button to power on or off the router.
