TP-Link CPE Series User Manual

Quick Start Guide (CPE and WBS) Set Up the Wireless Network
Configuration Guide
12
3.3 Repeater (Range Extender)
Follow the steps below to configure the device as Repeater (Range Extender) mode:
1) Go to the QUICK SETUP page, select
Repeater and click Next .

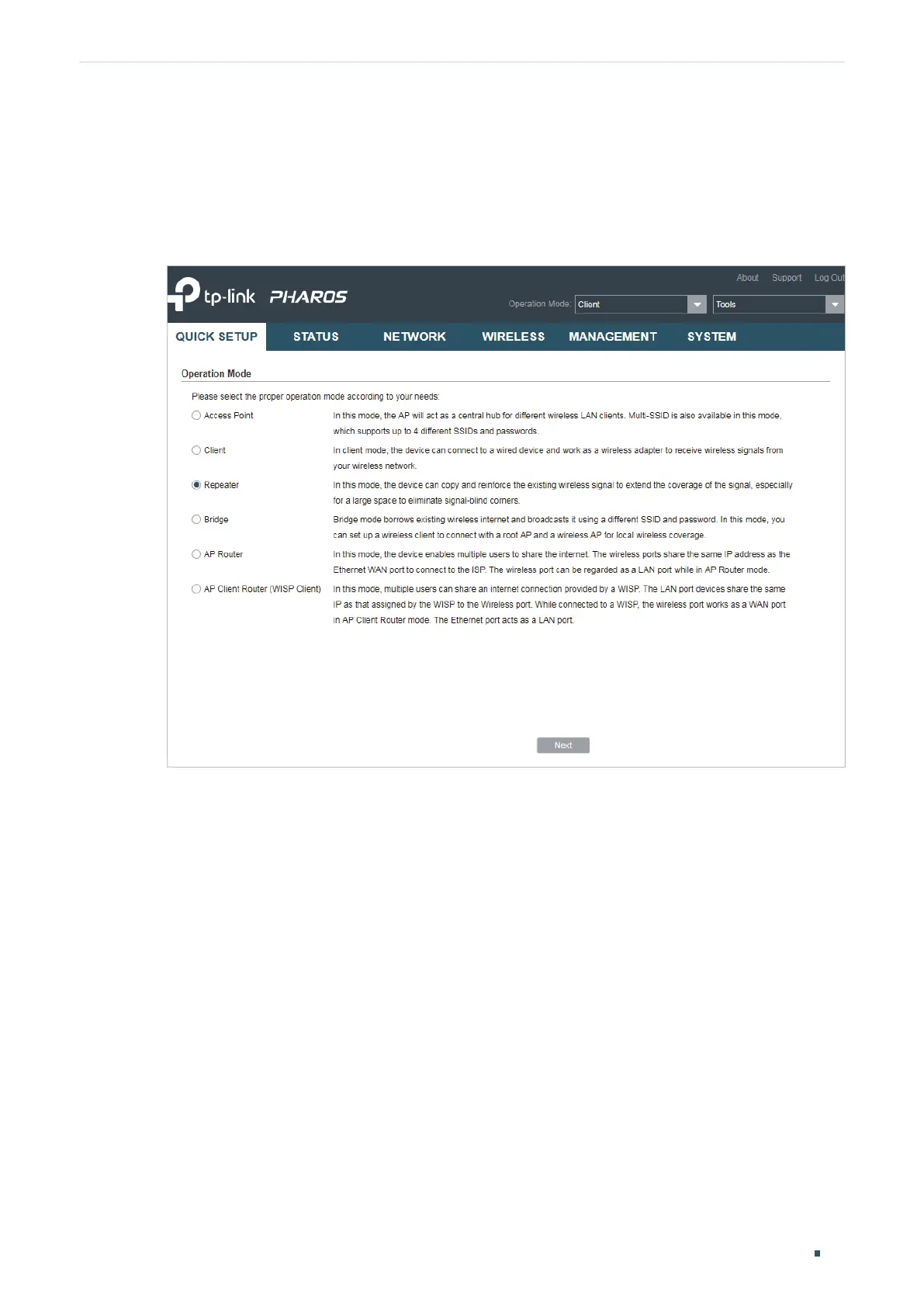

Figure 3-11 Selecting an Operation Mode
2) In the LAN Settings section, specify the LAN IP address and the Subnet Mask for the
device. Then, click
Next .

TP-Link CPE Series Specifications

General

Model	CPE Series
Wireless Standards	IEEE 802.11a/n
Frequency	5 GHz
Antenna	Directional
Wireless Security	WPA/WPA2, WPA-PSK/WPA2-PSK
Operating Modes	Access Point, Client, Repeater, Bridge
Power Supply	Passive PoE (Power over Ethernet)
Operating Temperature	-30°C to 70°C
Storage Temperature	-40°C~70°C (-40℉~158℉)
Humidity	10%~90% non-condensing
Enclosure	Weatherproof design
Chipset	Atheros
RAM	Varies by Model
Flash Memory	Varies by Model
Ethernet Ports	1
