TP-Link CPE Series User Manual

Quick Start Guide (CPE and WBS) Set Up the Wireless Network
Configuration Guide
8
3.2 Client
Follow the steps below to configure the device as Client mode:
1) Go to the QUICK SETUP page, select
Client and click Next .

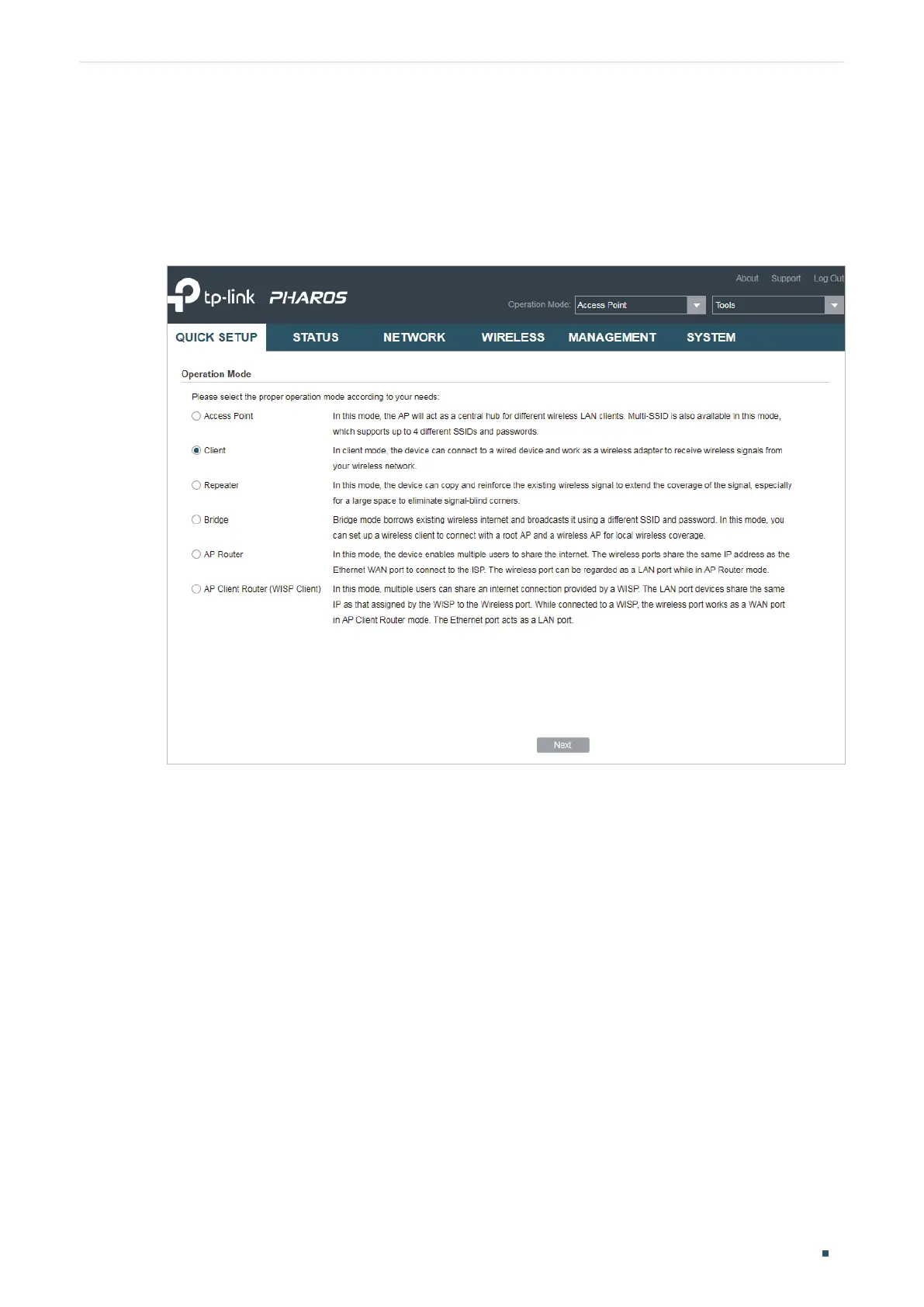

Figure 3-5 Selecting an Operation Mode
2) In the LAN Settings section, specify the LAN IP Address and the Subnet Mask for the
device. Then, click
Next .

TP-Link CPE Series Specifications

General

Model	CPE Series
Wireless Standards	IEEE 802.11a/n
Frequency	5 GHz
Antenna	Directional
Wireless Security	WPA/WPA2, WPA-PSK/WPA2-PSK
Operating Modes	Access Point, Client, Repeater, Bridge
Power Supply	Passive PoE (Power over Ethernet)
Operating Temperature	-30°C to 70°C
Storage Temperature	-40°C~70°C (-40℉~158℉)
Humidity	10%~90% non-condensing
Enclosure	Weatherproof design
Chipset	Atheros
RAM	Varies by Model
Flash Memory	Varies by Model
Ethernet Ports	1
