TP-Link Jetstream Series Installation Guide

JetStream Smart Switch
07Introduction
Model
100M/1000 M/10Gbps
RJ45 Port
10/100/1000 Mbps
RJ45 Port
10/100 Mbps RJ45
Port
SFP Port SFP+ Port
T1700G-28TQ / 24 / / 4
T1700X-16TS 12 / / / 4
TL-SG2210MP / 8 / 2 /
TL-SG2428P / 24 / 4 /
■
Rear Panel

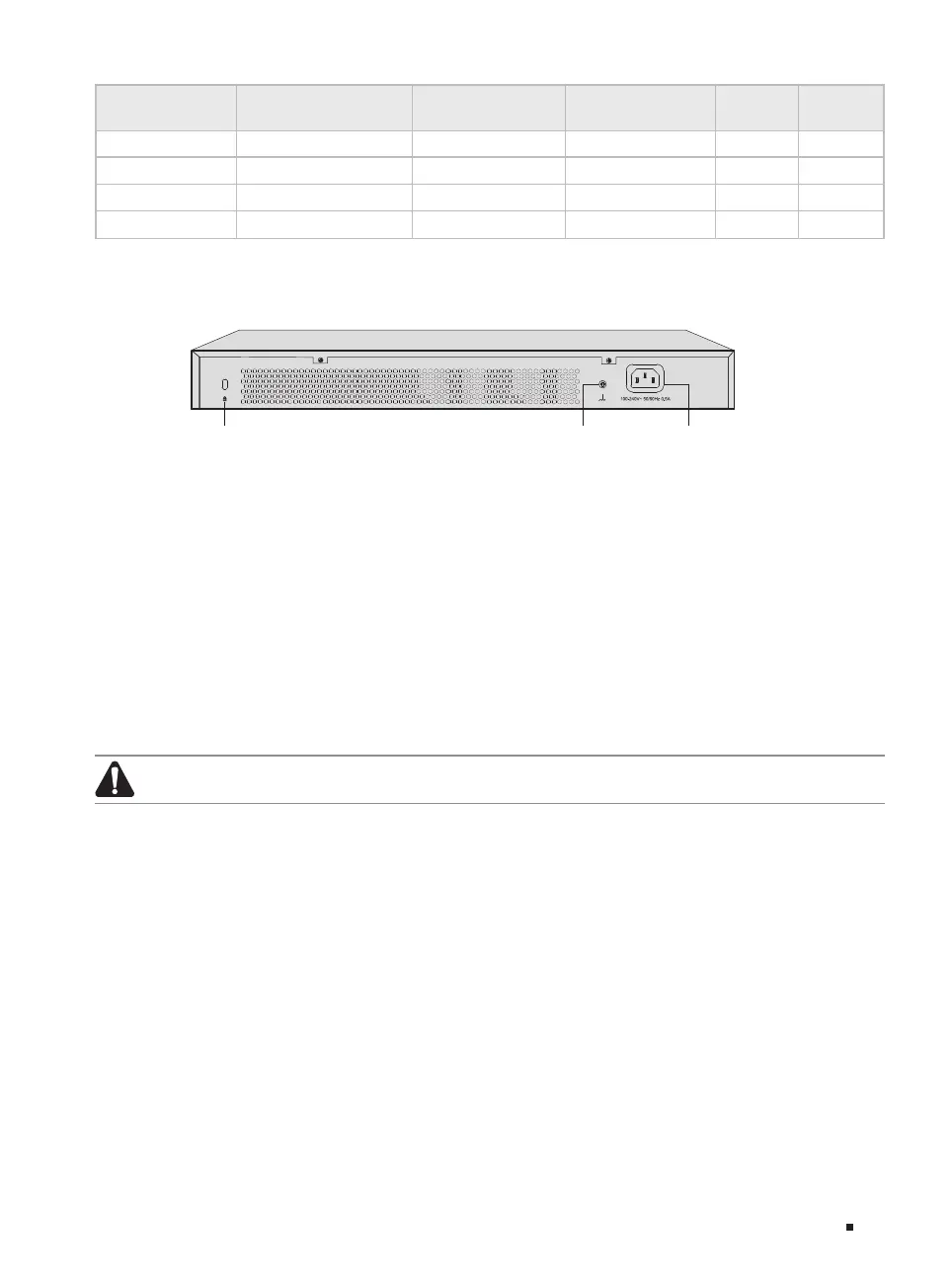

The rear panel is shown as the following figure. Here we take T1600G-28TS as an example.
Figure 1-11 Rear Panel
Power SocketGrounding TerminalKensington Security slot
Kensington Security Slot
Secure the lock (not provided) into the security slot to prevent the device from being stolen.
Grounding Terminal
The switch already comes with lightning protection mechanism. You can also ground the switch through
the PE (Protecting Earth) cable of AC cord or with Ground Cable. For detailed lightning protection
measures, go to https://www.tp-link.com/support, search the model number of your switch and go to
the product Support web page, refer to the Lightning Protection Guide from the Related Documents:
https://www.tp-link.com/us/conguration-guides/lightning_protection_guide/.
Power Socket
Connect the female connector of the power cord here, and the male connector to the AC power outlet.
Make sure that the voltage of the power supply meets the requirement of the input voltage (100–240 V~
50/60 Hz).
Caution:
You should use the provided power cord.

TP-Link Jetstream Series Specifications

General

Model	Jetstream Series
Type	Multiple types exist within the Jetstream Series
Ports	Multiple port configurations exist within the Jetstream Series
Layer	Layer 2/Layer 3
PoE Support	Available on some models
Uplink Ports	Varies depending on the specific model
Switching Capacity	Varies depending on the specific model
Forwarding Rate	Varies depending on the specific model
MAC Address Table	Varies depending on the specific model
Packet Buffer	Varies depending on the specific model
Power Consumption	Varies depending on the specific model
Dimensions	Varies depending on the specific model
Weight	Varies depending on the specific model
VLAN Support	Yes
QoS	Yes
Management	CLI, SNMP
