TP-Link JetStream T1500-28TC User Manual

Configuring Layer 2 Multicast Configuration Examples
User Guide 271
■ Enable IGMP Snooping on the ports.
Demonstrated with T1500-28PCT , this section provides configuration procedures in two
ways: using the GUI and using the CLI.
7.1.3 Using the GUI
1) Choose the menu L2 FEATURES > VLAN > 802.1Q VLAN > VLAN Config and click
to load the following page. Create VLAN 10 and add Untagged port 1/0/1-3 and
Tagged port 1/0/4 to VLAN 10.

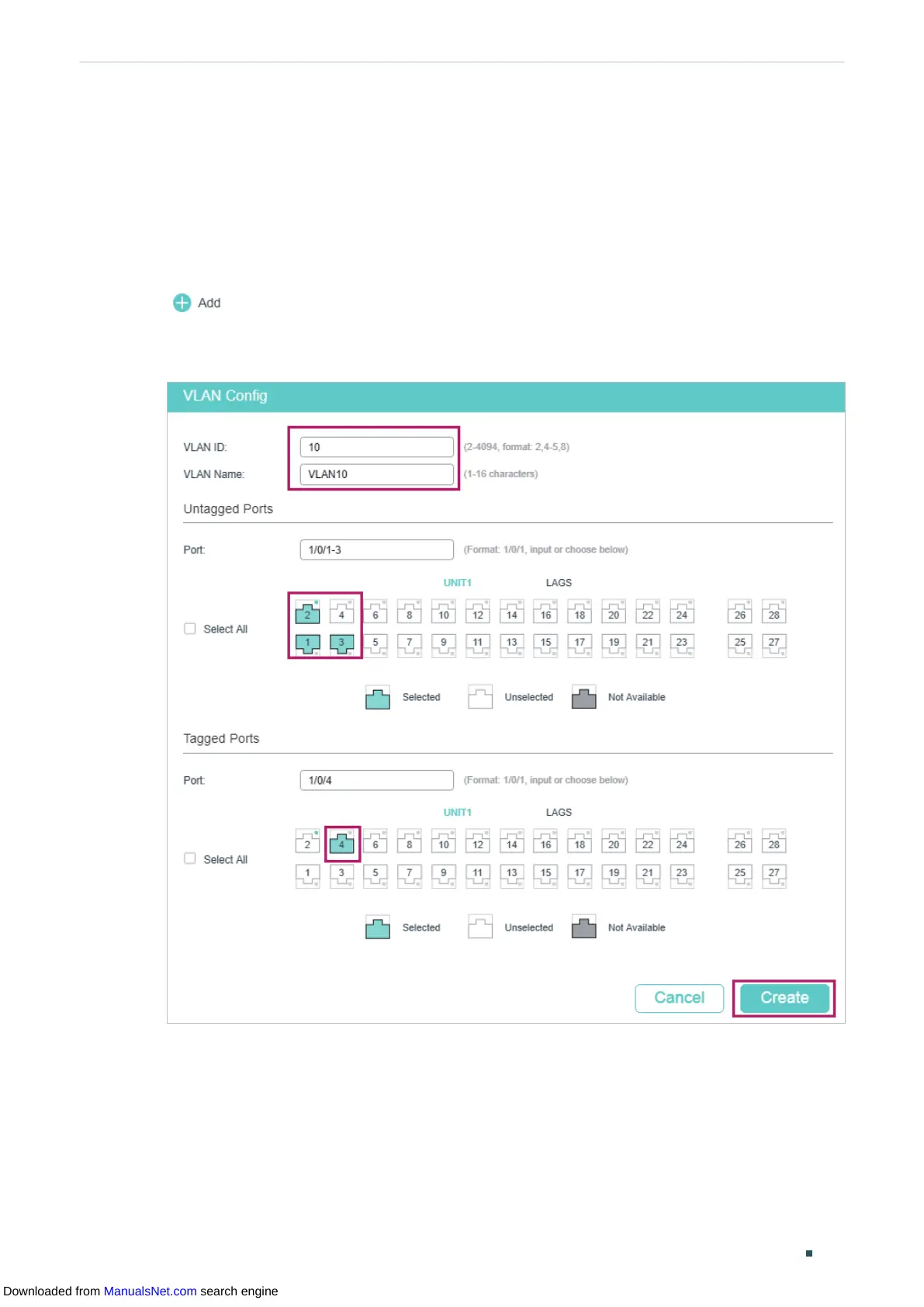

Figure 7-2 Create VLAN 10
2) Choose the menu L2 FEATURES > VLAN > 802.1Q VLAN > Port Config to load the
following page. Configure the PVID of port 1/0/1-4 as 10.
Downloaded from ManualsNet.com search engine

TP-Link JetStream T1500-28TC Specifications

General

Switch Type	Managed
Switching Capacity	56 Gbps
Power Supply	100-240VAC, 50/60Hz
MAC Address Table	8K
Jumbo Frame	Up to 9216 bytes
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
Dimensions	440 x 180 x 44 mm
Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1d, IEEE 802.1w, IEEE 802.1s
Mounting	Rackmount
Packet Forwarding Rate	41.7Mpps
Quality of Service	802.1p, DSCP
L2 Features	Port Mirroring, Loopback Detection
VLAN	802.1Q VLAN
Access Control List	L2/L3/L4 ACL
Security	IP-MAC-Port Binding, DHCP Snooping, ARP Inspection
Management	Web, CLI, SNMP
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
