2. Connection and Installation
Connect and mount the CPE and power adapter as shown below. The
following introduction takes CPE220 as an example.
• Connecting CPE and Power Adapter

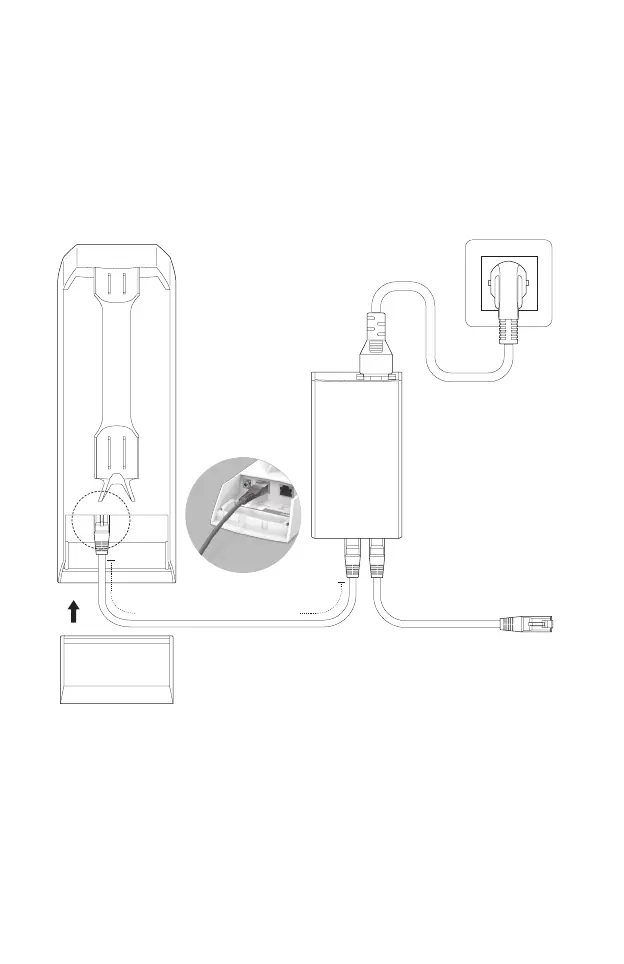

Connect the CPE and power adapter as shown in the gure below.
Ethernet cable length up to 60m
You should prepare an adequate
Ethernet cable to connect the CPE
and the passive PoE adapter.
Shielded CAT5e (or above) cable
with ground wire is recommended
(refer to the next section).
Connect to a computer,
router or switch.
(Depending on your
intended usage and/or
network topology.)
Slide to replace the cover
of the CPE when all
connections are nished.
LAN0
PoE
LAN

TP-Link PHAROS SERIES Specifications

General

Model	PHAROS SERIES
Category	Wireless Access Point
Frequency	5 GHz
Wireless Standards	IEEE 802.11a/n
Operating Temperature	70°C
Management	Web-based
Wireless Security	WPA/WPA2, WPA-PSK/WPA2-PSK, WEP
Interface	10/100M Ethernet
Operating Modes	Access Point, Client, Repeater
Mounting	Pole Mounting
